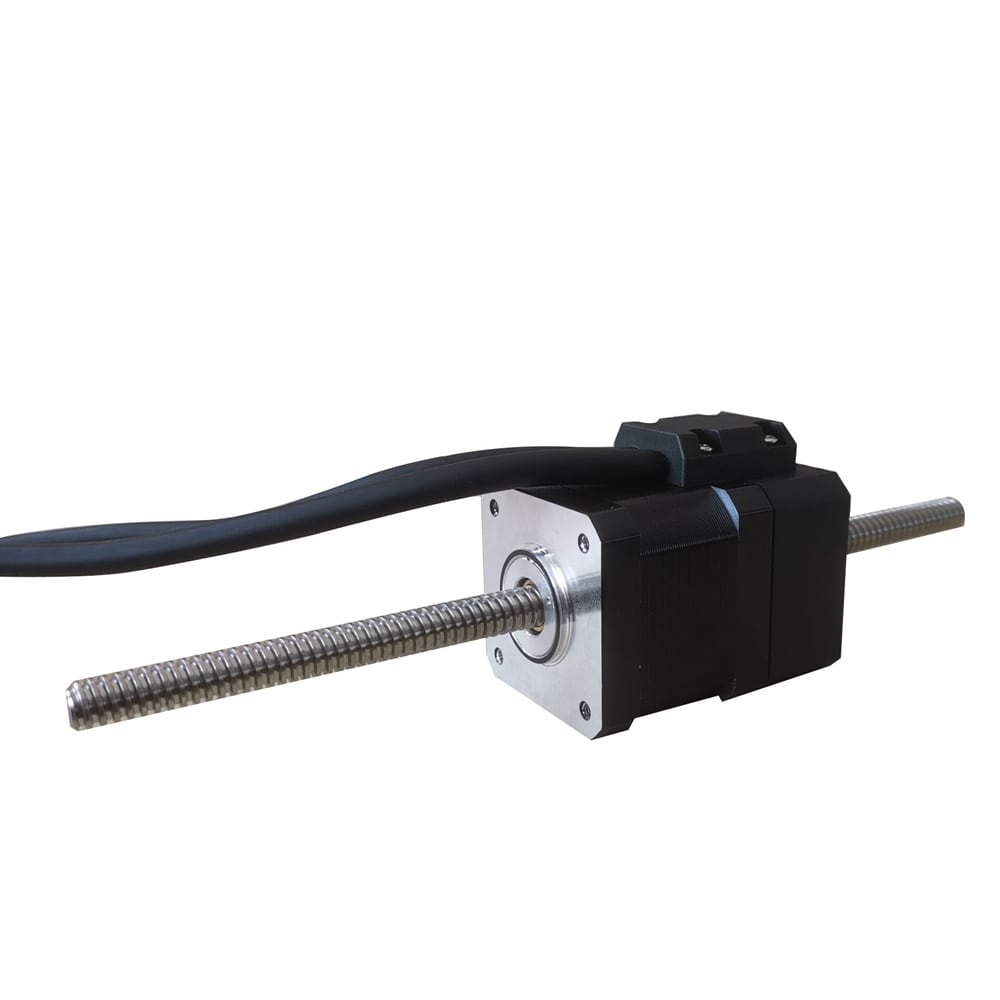

NEMA 17 Closed-loop Non-captive Linear Actuator Stepper Motor Stack 40mm Lead 2mm with 1000PPR Encoder
- Part Number: 42LS40-2004N-200L82E
- Lead Time: In Stock
- Unit Price: US $65.00
- Sales: 88
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 42 Non-captive linear actuator with body part 40mm NEMA 17 closed loop stepper motor is integrated with a diameter Φ8mm lead screw length 200mm. And the lead travel is 2mm per revolution/0.01mm per step. A 1000PPR incremental encoder is assembled for closed loop servo control.
Electrical Specification
- Manufacturer Part Number: 42LS40-2004N-200L82E
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.45Nm/63.9oz.in
- Rated Current/phase: 2.0A
- Phase Resistance: 1.1ohms
- Inductance: 2.6mH
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 42x42mm
- Body Length: 40mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ8mm
- Lead /Step: 0.01mm
- Lead/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 1000mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 1000mm
- Supply Voltage: 5.0V
Contact Us
| Product Details | |
| Model Number | 42LS40-2004N-200L82E |
| Product Type | Non-captive Linear Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.45 |
| Rated Current(A) | 2.0 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 42x42 |
| Stack Length(mm) | 40 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 8 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
| Lead Screw Length(mm) | 200 |
