NEMA 17 Hollow Shaft Stepper Motor 1.68A 0.55Nm/78.1oz.in 42x48mm with Outer M8 Thread
- Part Number: 42HS48-1684KH
- Lead Time: In Stock
- Unit Price: $35.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

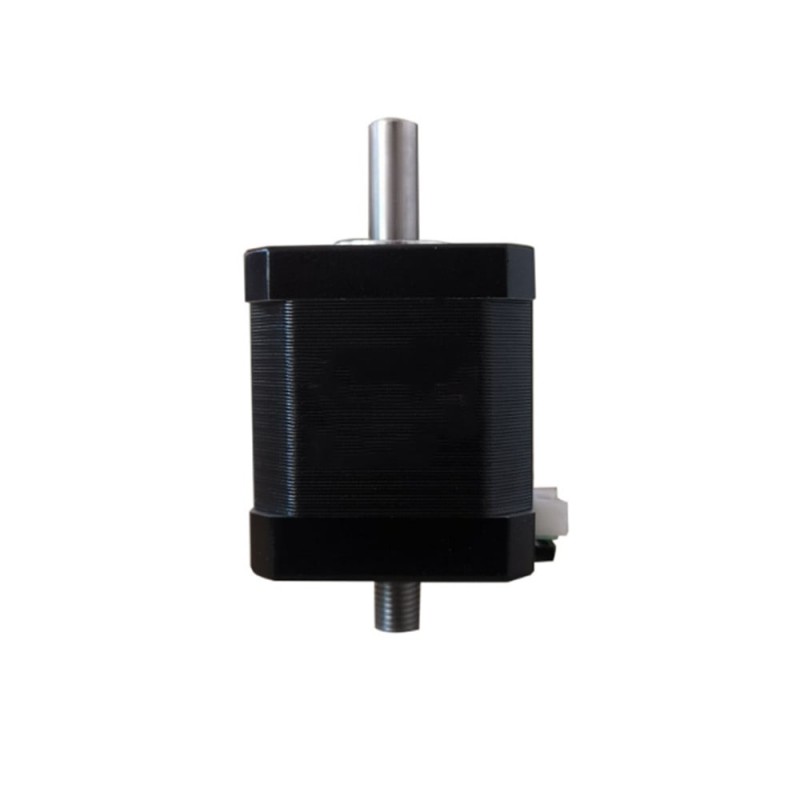

This compact size 42mm NEMA 17 hollow shaft stepper motor has a body length 48mm with 1.68A rated current & holding torque 0.55Nm/78.1oz.in. A hollow shaft with outer diameter Φ8.0mm & inner diameter Φ4.2mm is available and also a double shaft with a front shaft length 22mm and rear shaft length 13mm with outer M8 thread is designed.
Electrical Specification
- Part Number: 42HS48-1684KH
- Step Angle: 1.8deg
- Bi/Unipolar: Bopolar
- Holding Torque: 0.55Nm(78.1oz.in)
- Rated Current/phase: 1.68A
- Phase Resistance: 1.8ohms
- Inductance: 4.5mH
- Driving Voltage: 12-24VDC

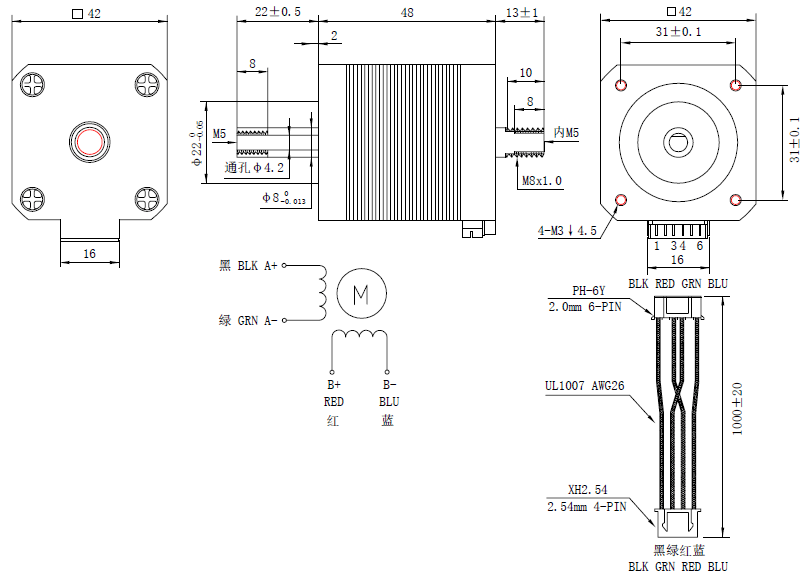

Physical Specification
- Frame Size: 42x42mm
- Body Length: 48mm
- Outer Shaft Diameter: Φ8.0mm
- Inner Shaft Diameter: Φ4.2mm
- Front Shaft Length: 22mm
- Rear Shaft Length: 13mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.4kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.55 |
| Holding Torque(oz.in) | 78.1 |
| Rated Current(A) | 1.68 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
| Inner Shaft Diameter(mm) | 4.2 |
| Outer Shaft Diameter(mm) | 8.0 |
| Front Shaft Length(mm) | 22 |
| Rear Shaft Length(mm) | 13 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.4 |
