NEMA 17 Hollow Shaft Stepper Motor 1.0A 0.16Nm/22.72oz.in 42x34mm 4 Wires
- Part Number: 42HS34-1004H
- Lead Time: In Stock
- Unit Price: $30.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

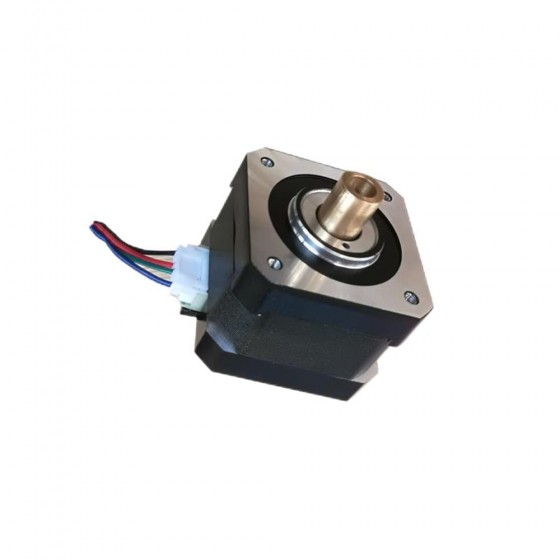

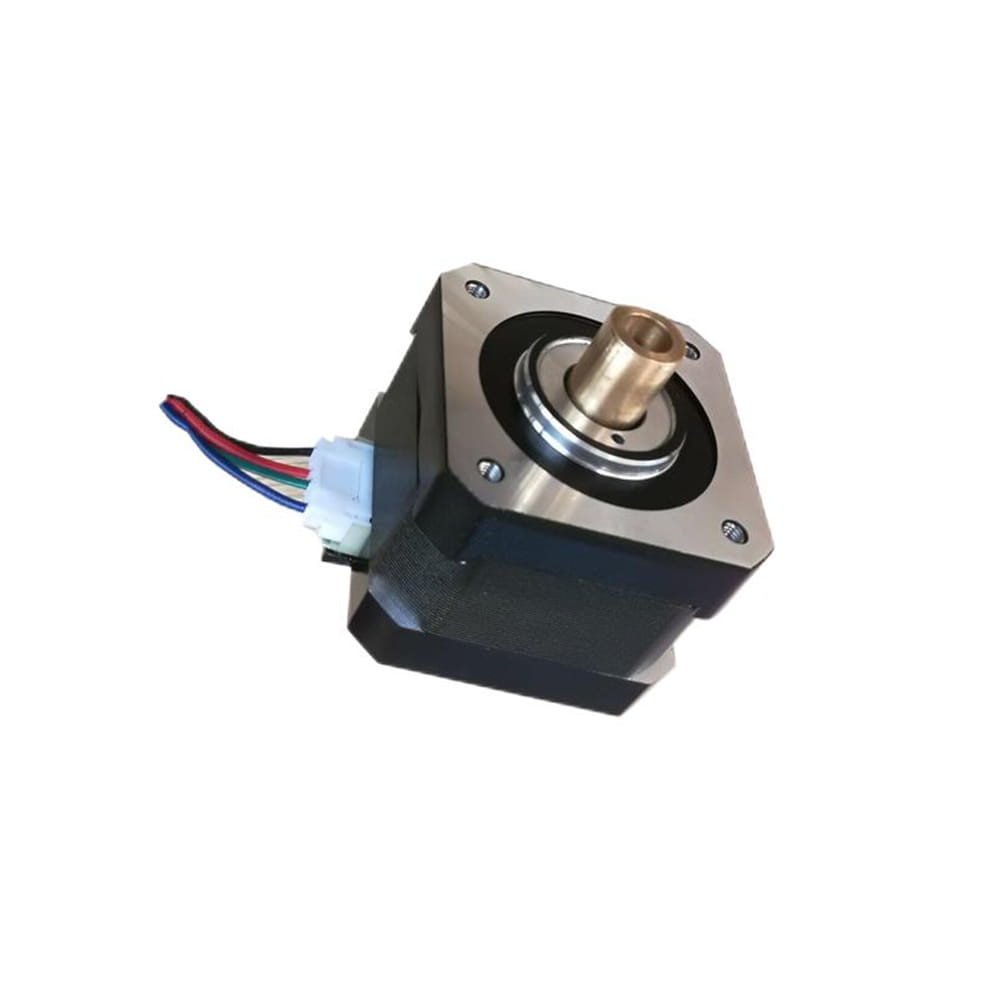

This compact size 42mm NEMA 17 hollow shaft stepper motor has a body length 34mm with 1.0A rated current & holding torque 0.16Nm/22.72oz.in. A hollow shaft with outer diameter Φ10.0mm & inner diameter Φ6.2mm is available and also a single shaft length 12mm is designed.
Electrical Specification
- Part Number: 42HS34-1004H
- Step Angle: 1.8deg
- Bi/Unipolar: Bopolar
- Holding Torque: 0.16Nm(22.72oz.in)
- Rated Current/phase: 1.0A
- Phase Resistance: 4.2ohms
- Inductance: 2.5mH
- Driving Voltage: 12-24V

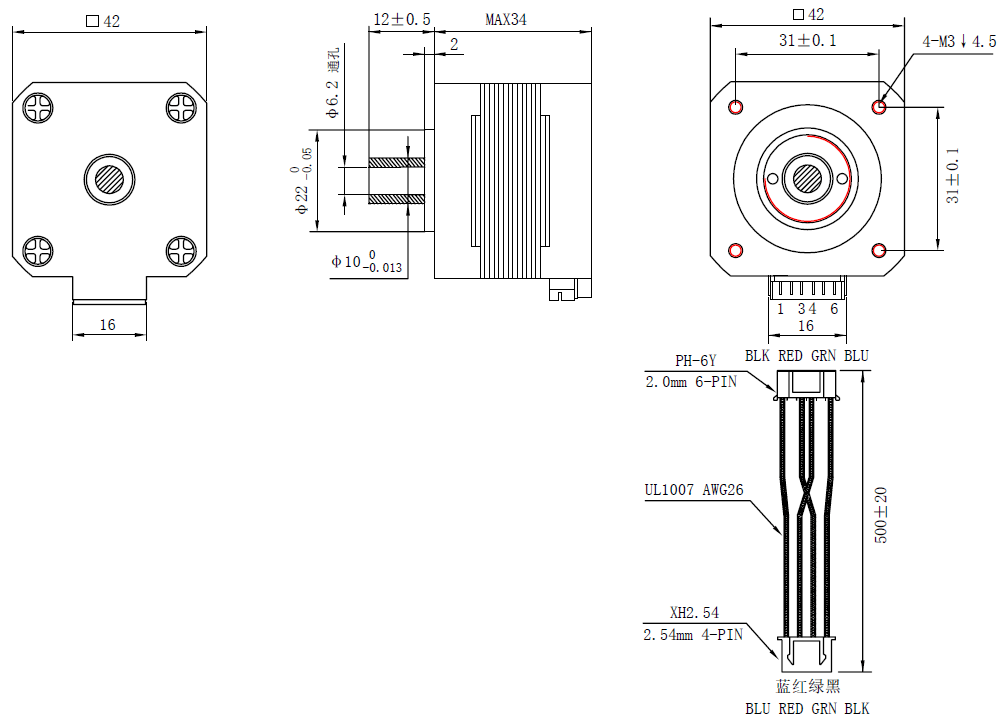

Physical Specification
- Frame Size: 42x42mm
- Body Length: 34mm
- Outer Shaft Diameter: Φ10.0mm
- Inner Shaft Diameter: Φ6.2mm
- Shaft Length: 12mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.25kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.16 |
| Holding Torque(oz.in) | 22.72 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 34 |
| Inner Shaft Diameter(mm) | 6.2 |
| Outer Shaft Diameter(mm) | 10.0 |
| Shaft Length(mm) | 12 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.25 |
