NEMA 17 Closed-loop Ball Screw Linear Actuator Stepper Motor Stack 48mm Lead 4mm with 1000PPR Encoder

Part Number: 42LS48-2504G-300L1204E
Lead Time: In Stock
Unit Price: US $89.00

*Ship from China

- +

Tags: NEMA 17 Closed-loop Ball Screw Linear Actuator Stepper Motor Stack 48mm Lead 4mm 1000PPR Encoder

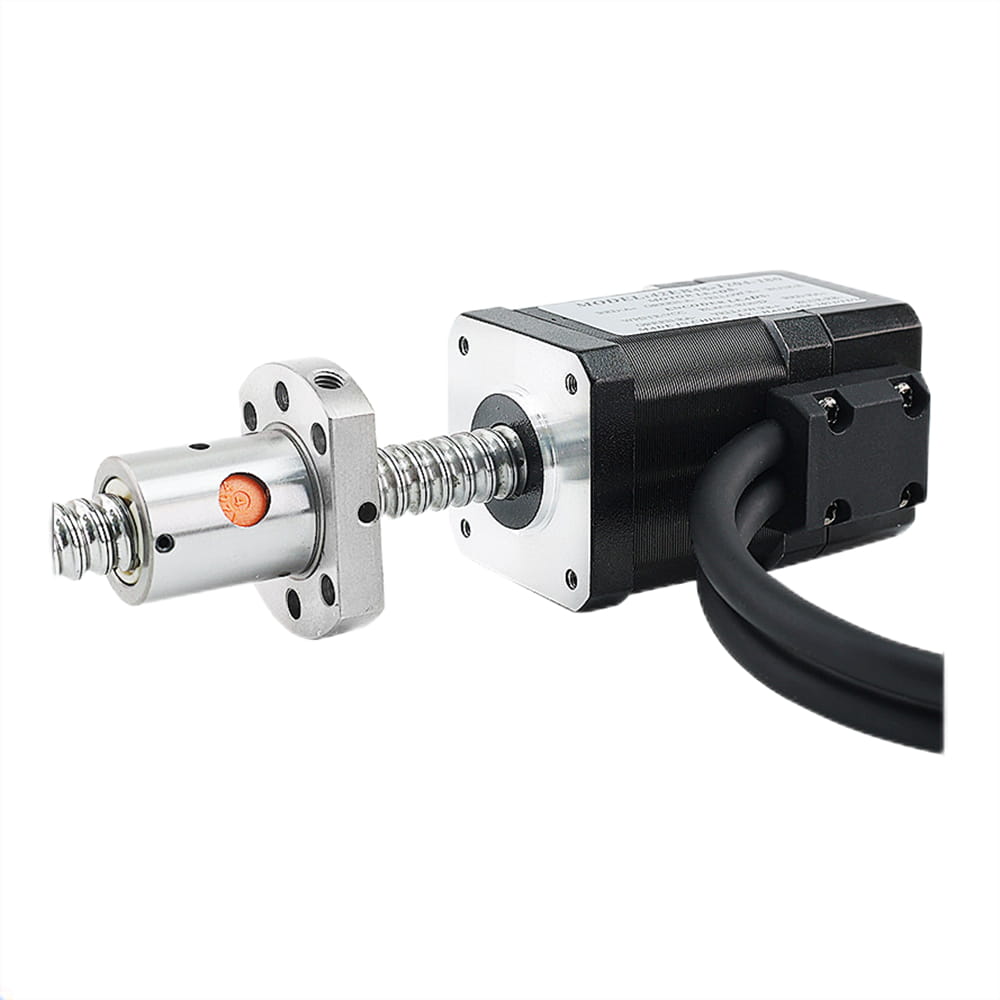

This size 42 external linear actuator with body part 48mm NEMA 17 closed-loop stepper motor is integrated with a diameter Φ12mm ball screw length 300mm & a bacll screw nut. And the ball screw lead travel is 4mm per revolution/0.02mm per step. A 1000PPR incremental encoder is assembled for closed loop servo control.

Electrical Specification

Manufacturer Part Number: 42LS48-2504G-300L1204E
Motor Type: External
Step Angle: 1.8deg
Bipolar/Unipolar: Bipolar
Holding Torque: 0.52Nm/73.84oz.in
Rated Current/phase: 2.5A
Driving Voltage: 12-24V

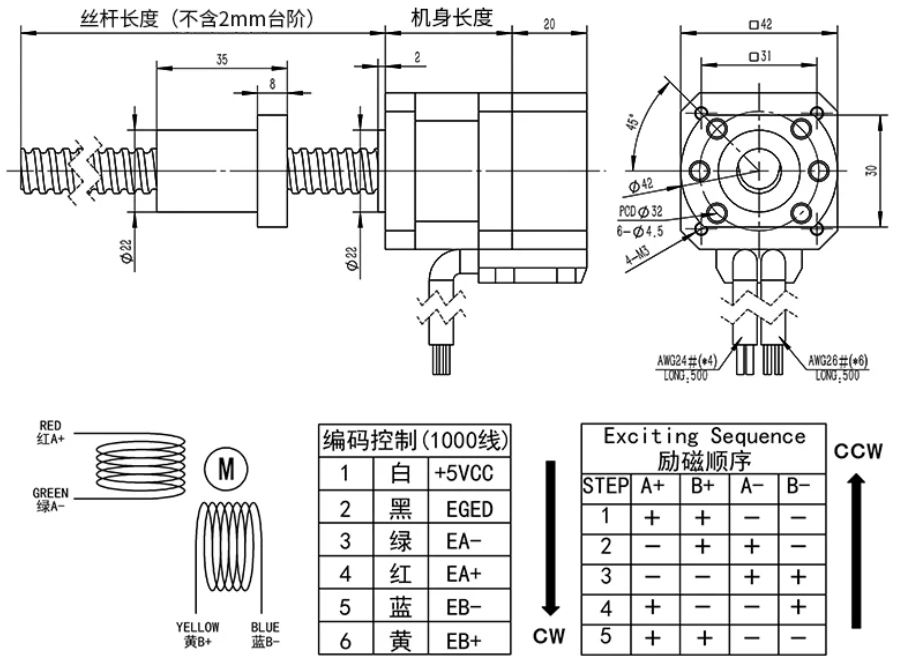

Physical Specification

Frame Size: 42x42mm
Body Length: 48mm
Ball Screw Length: 300mm
Ball Screw Diameter: Φ12mm
Ball Screw/Step: 0.02mm
Ball Screw/Revolution: 4mm
Number of Leads: 4
Lead Length: 500mm

Encoder Specification

Encoder Type: Incremental
Encoder Resolution: 1000PPR
Encoder Signal Channels: 2
No. of Leads: 6
Lead Length: 500mm
Supply Voltage: 5.0V

Contact Us

Your Name

E-Mail Address

Enquiry

Product Details
Model Number	42LS48-2504G-300L1204E
Product Type	External Ball Screw Stepper
Lead Time	in stock
Insulation Class	B
Protective Grade	IP20
Stepper Motor Specification
Step Angle(deg.)	1.8
Bipolar/Unipolar	Bipolar
Holding Torque(Nm)	0.52
Rated Current(A)	2.5
Driving Voltage(VDC)
Frame Size(mm)	42x42
Stack Length(mm)	48
Encoder Specification
Encoder Type	Incremental
Encoder Resolution(PPR)	1000
Ball Screw Specification
Ball Screw Diameter(mm)	12
Ball Screw Travel/Revolution(mm)	4
Ball Screw Travel/Step(mm)	0.02
Ball Screw Length(mm)	300

motor body length 48mm, ball screw length 300mm, can be customized.
