NEMA 11 Stepper Motor Bipolar 1.8deg 2.0A 0.12Nm/17.04oz.in 28x52mm with 1000PPR Encoder
- Part Number: 28HS52-2004E
- Lead Time: In Stock
- Unit Price: US $55.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This is a bipolar NEMA 11 closed-loop stepper motor with step angle 1.8deg and size 28x28x52mm. It has 4 wires, each phase drawing 2.0A with holding torque 0.12Nm/17.04oz.in.
A 1000PPR resolution incremental optical encoder is assembled for closed-loop servo control.

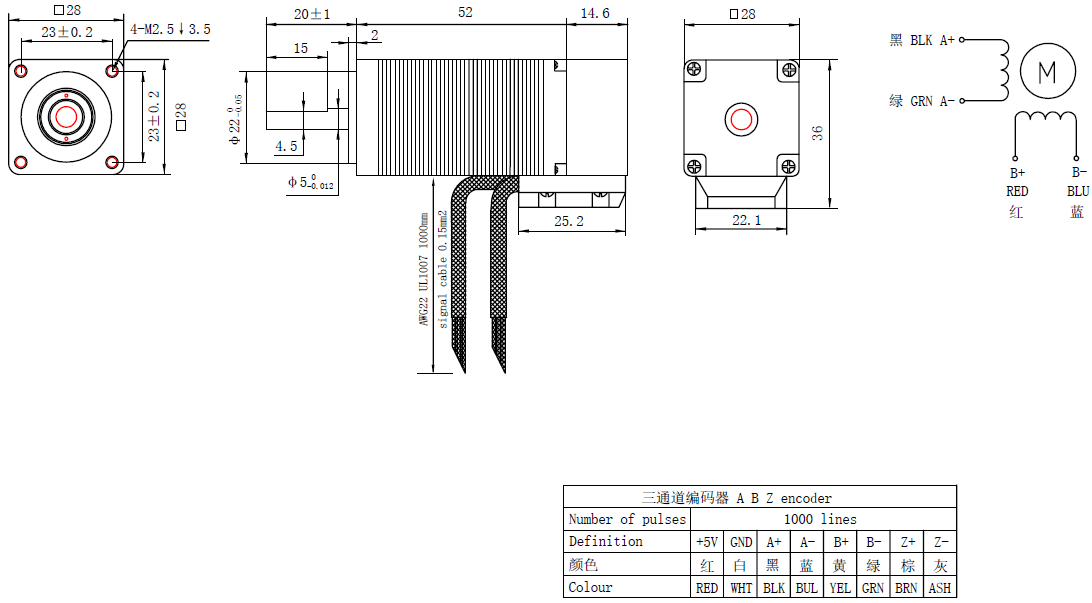

Motor Specification
- Manufacturer Part Number: 28HS52-2004E
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.12Nm/17.04oz.in
- Rated Current/phase: 2.0A
- Driving Voltage: 12-24VDC
- Frame Size: 28x28mm
- Body Length: 51mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 1000mm
Encoder Connection
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 1000mm
- Supply Voltage: 5.0V
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 28HS52-2004E |
| Product Type | Closed Loop Stepper Motor |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Rated Current(A) | 2.0 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 52 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
| Supply Voltage(VDC) | 5.0 |
