NEMA 11 Integrated Linear Stepper Servo Motor Lead 2mm Screw Length 96mm with 1000PPR Encoder

Part Number: 28HS32-EC-YT-96L62
Lead Time: One Week
Unit Price: US $125.00
Sales: 3

*Ship from China

- +

Tags: NEMA 11 Integrated Linear Stepper Servo Motor Lead 2mm Screw Length 96mm 1000PPR Encoder

The integrated stepper servo screw motor is a highly compact electromechanical drive device that combines a stepper motor, high-precision ball screw or trapezoidal screw, encoder, and drive into a single unit. It employs closed-loop control technology to achieve precise positioning, high-speed response, and stable operation. This NEMA 11 integrated linear stepper servo motor is suitable for high-precision motion control applications such as automation equipment, CNC machine tools, 3D printing, and medical instruments, offering advantages including a compact structure, convenient installation, and simple maintenance.

Electrical Specification

Manufacturer Part Number: 28HS32-EC-YT-96L62
Step Angle: 1.8deg
Holding Torque: 0.06Nm/8.52oz.in
Rated Current: 1.5A
Drive Input Voltage: 12-24VDC
Drive Output PCurrent: 0.2-2.0A
Drive Logic Input Voltage: 5.0V
Encoder Type: Incremental
Encoder Resolution: 1000PPR
Control Model: Pulse/Direction

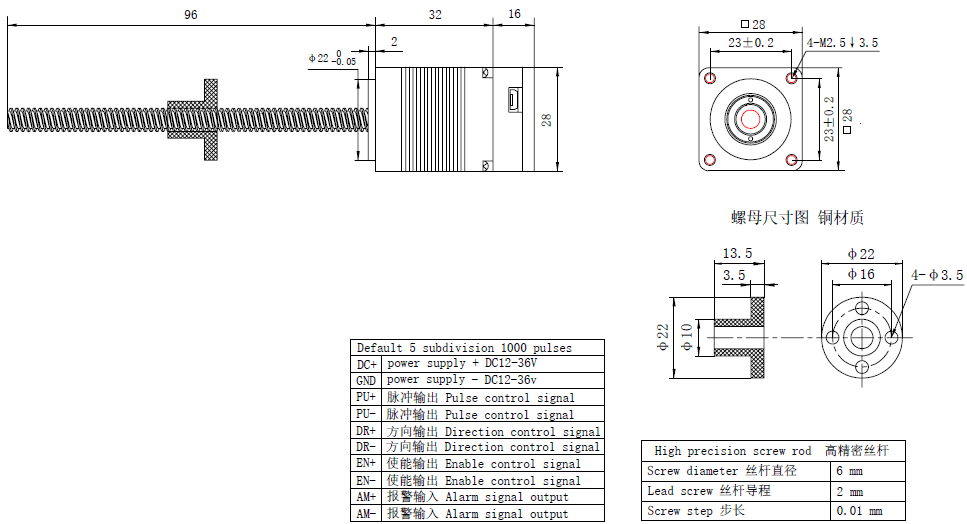

Physical Specification

Frame Size: 28x28mm
Body Length: 48mm
Lead Screw Length: 96mm
Lead Screw Diameter: Φ6mm
Lead /Step: 0.01mm
Lead/Revolution: 2mm

Contact Us

Your Name

E-Mail Address

Enquiry

Product Details
Model Number	28HS32-EC-YT-96L62
Product Type	Integrated Linear Motor
Lead Time	One Week
Electrical Specification
Step Angle(deg.)	1.8
Bipolar/Unipolar	Bipolar
Holding Torque(Nm)	0.06
Drive Integrated	Yes
Control Mode	Pulse
Input Voltage(VDC)	12-24
Encoder Feedback	Yes
Encoder Type	Incremental
Physical Specification
Frame Size(mm)	28x28
Body Length(mm)	48
Lead Screw Specification
Lead Screw Diameter(mm)	6
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Lead Screw Length(mm)	96
