Stepper Motor NEMA 11 Bipolar 1.8deg 12Ncm 0.67A 28x28x51mm 11HS20-0674S
- Part Number: 11HS20-0674S
- Lead Time: In Stock
- Unit Price: US $8.50
- Sales: 63
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

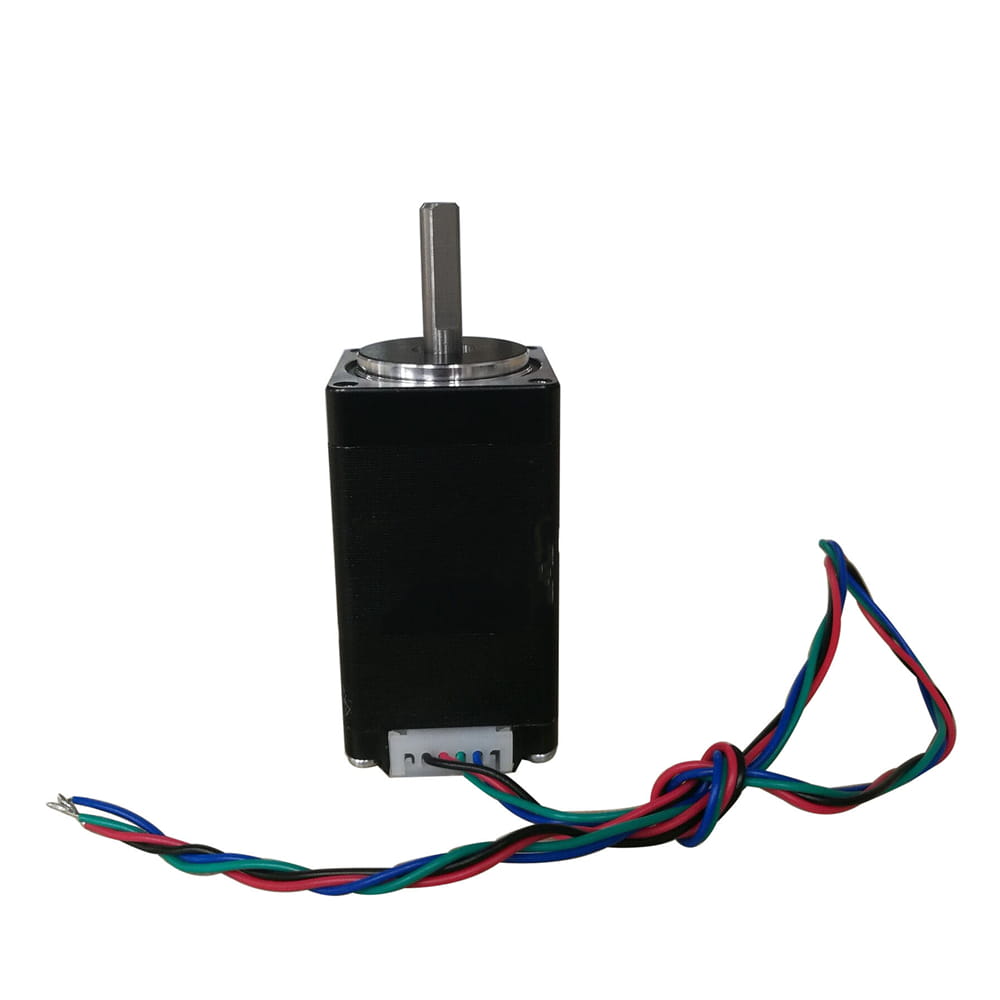

This strong precise engine is a bipolar NEMA 11 stepper motor with step angle 1.8deg and size 28x28x51mm. It has 4 wires, each phase draws 0.67A with holding torque 12Ncm.
Electrical Specification
- Manufacturer Part Number: 11HS20-0674S
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 12Ncm
- Rated Current/phase: 0.67A
- Phase Resistance: 9.2ohms
- Inductance: 5.7mH
- Driving Voltage: 12-24V

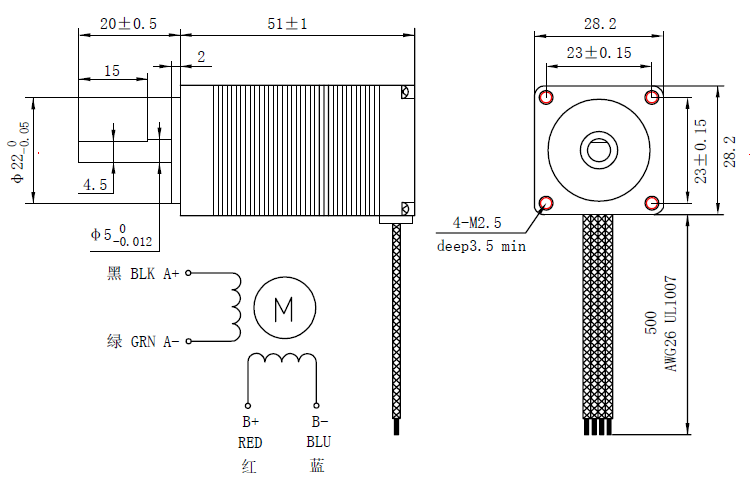

Physical Specification
- Frame Size: 28x28mm
- Body Length: 51mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.19kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 11HS20-0674S |
| Product Type | Stepper Motor |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Rated Current(A) | 0.67 |
| Driving Voltage(VDC) | 12-24 |
| Stepper Physical Specification | |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 51 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.19 |
