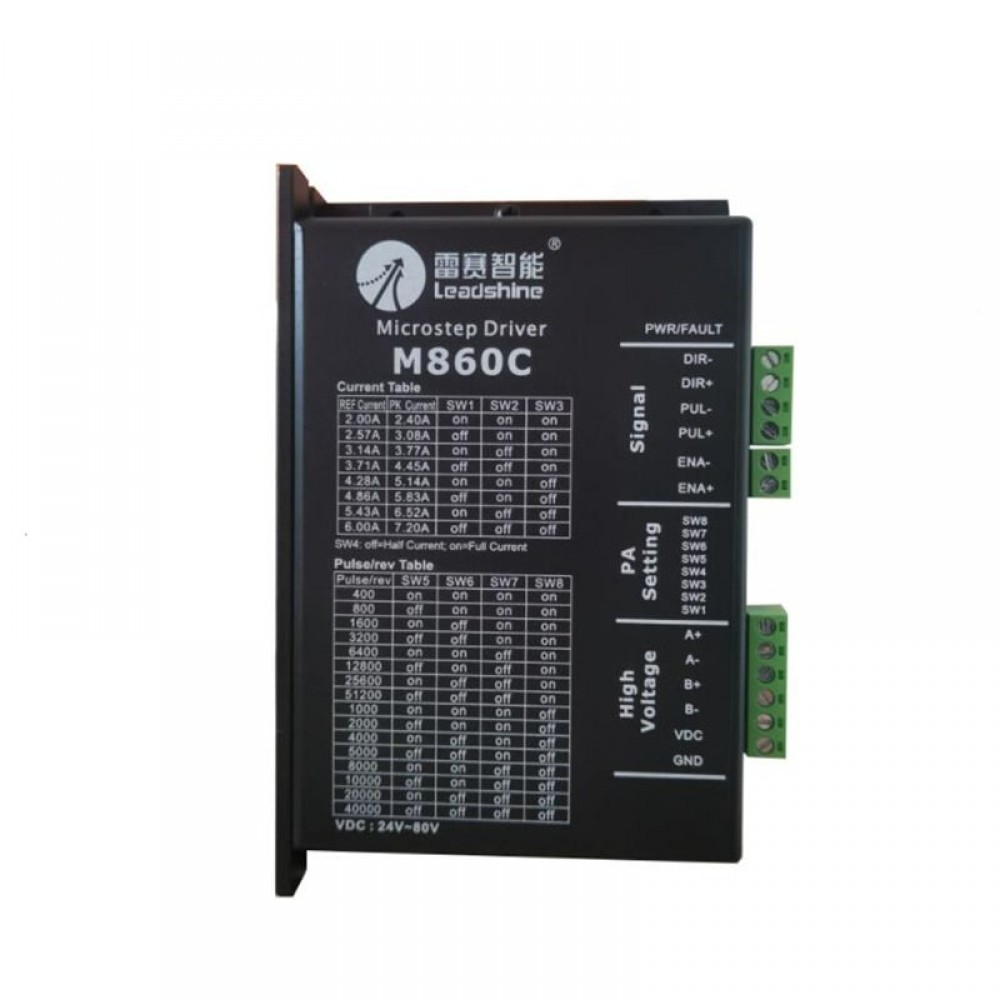

LEADSHINE M860C Digital Stepper Drive 2.4-7.2A 30-80VDC for NEMA 24/34
- Part Number: M860C
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 26
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This stepper drive M860C is definitely capable of powering 2 phase hybrid stepper motors of NEMA 23, 24 and 34. It provdes a input voltage 30-80VDC and output current 2.4-7.2A
Key Features:
- Pulse & Direction, CW/CCW control
- Protections for over voltage, over current, etc.
- Logic Input Voltage: 5V
- Output Current: 2.4-7.2A(5.1RMS)
- Input Voltage: 30-80VDC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension: 151x97x42.5mm
- Weight: 0.45kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Signal Voltage(V) | 5 |
| Input Voltage(VDC) | 30-80 |
| Output Current(A) | 2.4-7.2 |
| Micro-step Resolutions | 400-51200 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 151x97x42.5 |
| Weight(KG) | 0.45 |
