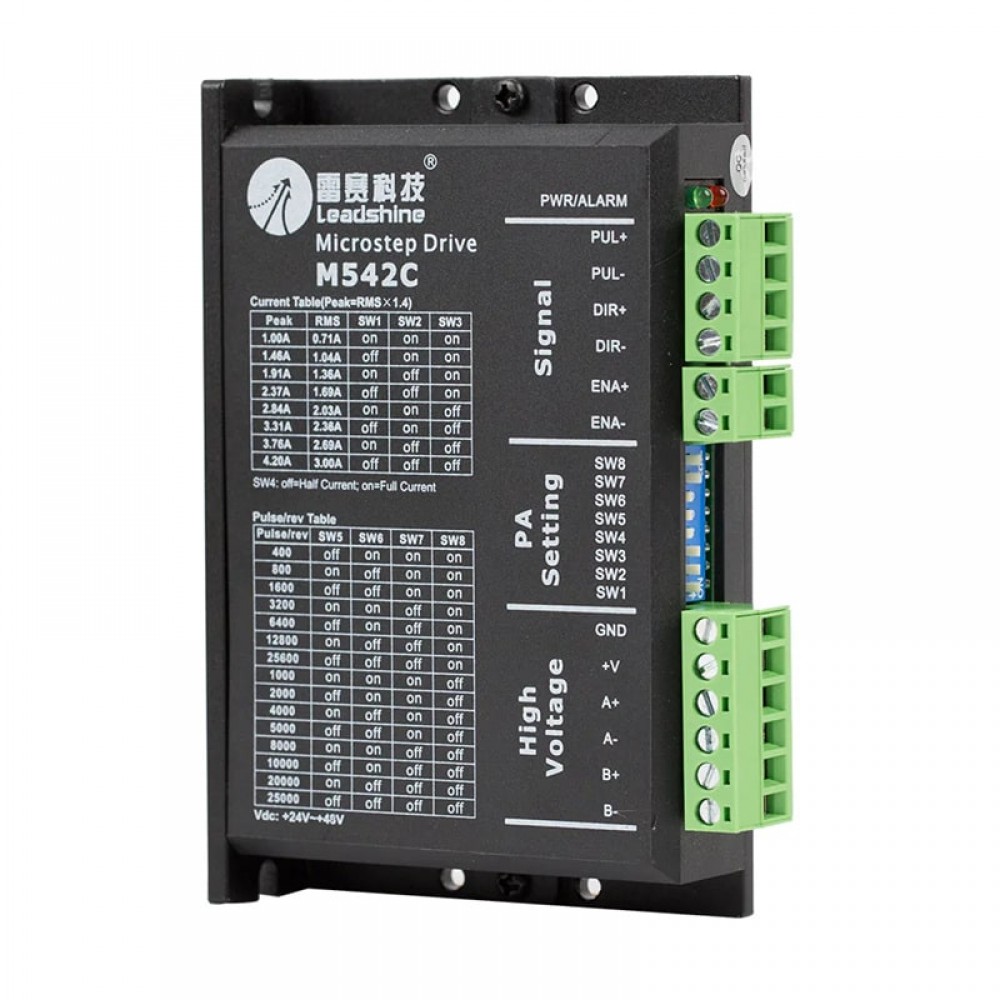

LEADSHINE M542C Digital Stepper Drive 1.0-4.2A 20-50VDC for NEMA 23/24
- Part Number: M542C
- Lead Time: In Stock
- Unit Price: $40.00
- Sales: 17
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This stepper drive M542C is definitely capable of powering 2 phase hybrid stepper motors of NEMA 17, 23 and 24. It provdes a input voltage 20-50VDC and output current 1.0-4.2A
Key Features
- Pulse & Direction, CW/CCW control
- Protections for over voltage, over current, etc.
- Logic Input Voltage: 5V
- Output Current: 1.0-4.2A(3.0RMS)
- Input Voltage: 20-50VDC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension: 118x75.5x25.5mm
- Weight: 0.25kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Signal Voltage(V) | 5 |
| Input Voltage(VDC) | 20-50 |
| Output Current(A) | 1.0-4.2 |
| Micro-step Resolutions | 200-25600 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 118x75.5x25.5 |
| Weight(KG) | 0.3 |
