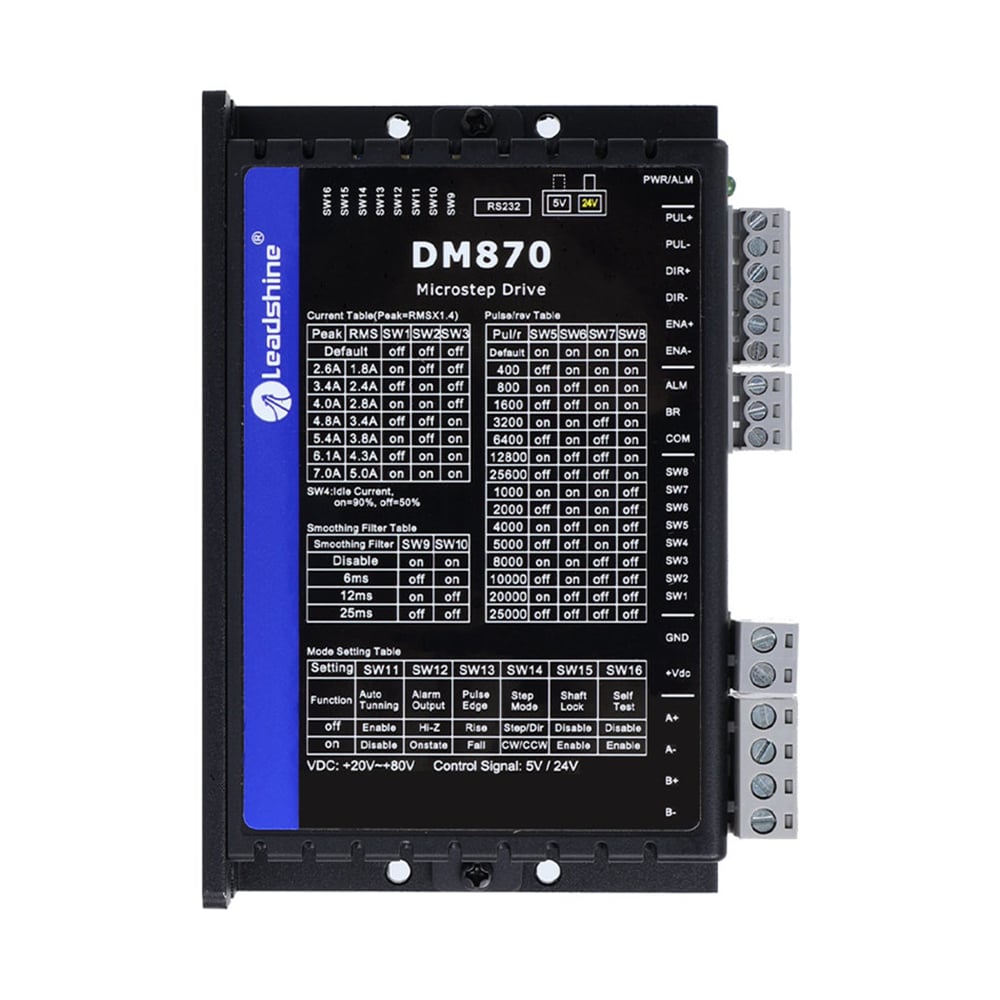

LEADSHINE DM870 Digital Stepper Motor Drive 0.5-7.0A 20-80VDC RS232 Port
- Part Number: DM870
- Lead Time: In Stock
- Unit Price: $75.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This stepper drive DM870 is definitely capable of powering 2 phase hybrid stepper motors of NEMA 23, 24 and 34. It provdes a input voltage 20-80VDC and output current 0.5-7.0A.
Electrical Specifications:
- Brake Port Interface
- RS232 debugging interface
- Pulse & Direction or CW/CCW(double pulse) control
- Protections for over voltage, over current, etc.
- Logic Input Voltage: 5V/24V
- Output Current: 0.5-7.0A(5.0RMS)
- Input Voltage: +24-80VDC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension: 118x75.5x34mm
- Weight: 0.35kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Signal Voltage(V) | 5/24 |
| Input Voltage(VDC) | 20-80 |
| Output Current(A) | 0.5-7.0 |
| Micro-step Resolutions | 200-25600 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 118x75.5x34 |
| Weight(KG) | 0.35 |
