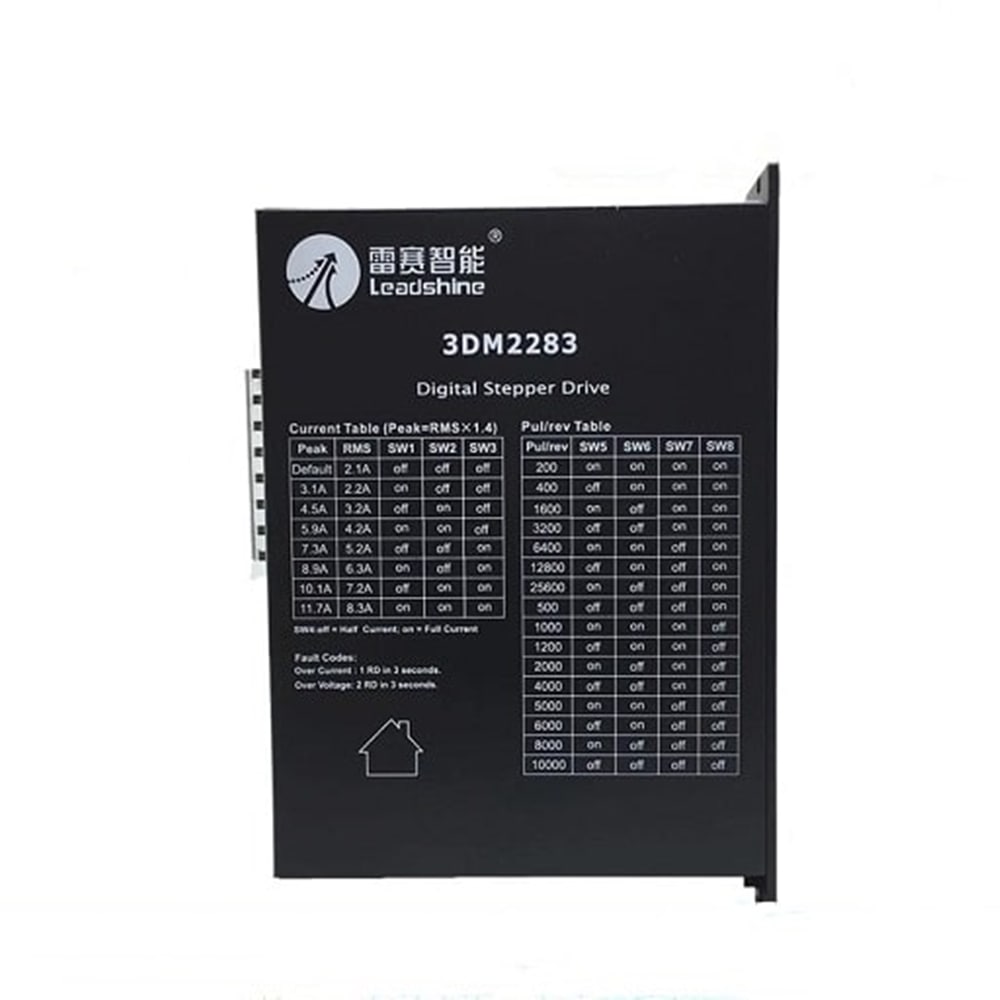

LEADSHINE 3DM2283 Digital Stepper Drive 2.1-11.7A 180-240VAC for 3 Phase NEMA 42 & 51 Stepper Motor
- Part Number: 3DM2283
- Lead Time: In Stock
- Unit Price: $150.00
- Sales: 9
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This stepper drive 3DM2283 is definitely capable of powering 3 phase hybrid stepper motors of NEMA 42 and 51. It provdes a input voltage 180-240VAC and output current 2.1-11.7A.
Key Features:
- RS232 debugging interface
- Alarm and in-position signal output
- Protections for over voltage, over current, etc
- Pulse & Direction or CW/CCW(double pulse) control
- Logic Input Voltage: 5V
- Output Current: 2.1-11.7A(8.3RMS)
- Input Voltage: 180-240VAC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension: 200x149x83mm
- Weight: 2.5kg
Contact Us
| Drive Specification | |
| Phase Number | 3 |
| Signal Voltage(V) | 5 |
| Input Voltage(VAC) | 180-240 |
| Output Current(A) | 2.1-11.7 |
| Micro-step Resolutions | 400-25600 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 200x149x83 |
| Weight(KG) | 2.5 |
