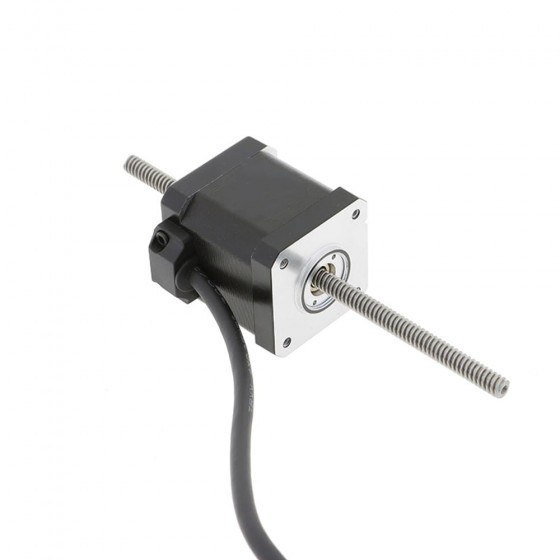

Lead Screw Stepping Motor Non-captive Type Step 0.015875mm Screw Dia. 6.35mm Length 156mm 42-48mm NEMA 17

Part Number: 42HB48-2504N-156L3.175
Lead Time: Pre-Order
Unit Price: US $75.00

*Ship from China

- +

This lead screw stepping motor is an Non-captive type with size 42mm (NEMA 17). It is integrated with a lead screw of Φ6.35mm diameter and 156mm length. The lead screw's linear travel is 0.015875mm per step or 3.175mm per revolution. The digital stepping drive M332C is recommended for controlling this motor.

Electrical Specification

Manufacturer Part Number: 42HB48-2504N-156L3.175
Motor Type: Non-captive
Step Angle: 1.8deg
Bipolar/Unipolar: Bipolar
Holding Torque: 0.5Nm
Rated Current/phase: 2.5A
Driving Voltage: 12-24V

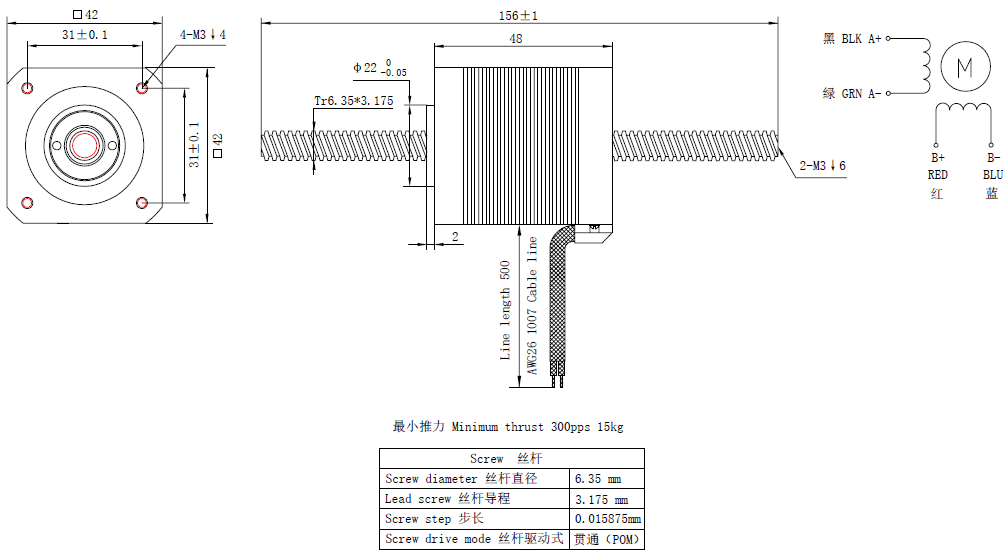

Physical Specification

Frame Size: 42x42mm
Body Length: 48mm
Lead Screw Length: 156mm
Lead Screw Diameter: Φ6.35mm
Lead /Step: 0.015875mm
Lead/Revolution: 3.175mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.5kg

Connection

Black: A+, Green: A-, Red: B+, Blue: B-

Contact Us

Your Name

E-Mail Address

Enquiry

Product Details
Model Number	42HB48-2504N-156L3.175
Product Type	Non-captive Linear Stepper
Lead Time	One Week
Insulation Class	B
Protective Grade	IP20
Stepper Motor Specification
Step Angle(deg.)	1.8
Bipolar/Unipolar	Bipolar
Holding Torque(Nm)	0.5
Rated Current(A)	2.5
Driving Voltage(VDC)	12-24
Frame Size(mm)	42x42
Stack Length(mm)	48
Lead Screw Specification
Lead Screw Diameter(mm)	6.35
Lead Travel/Revolution(mm)	3.175
Lead Travel/Step(mm)	0.015875
Lead Screw Length(mm)	156
