Lead Screw Stepping Motor External Type Step 0.0254mm Screw Length 235mm 86-76mm NEMA 34
- Part Number: 86HB76-5004E-235L5.08
- Lead Time: Pre-Order
- Unit Price: US $150.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

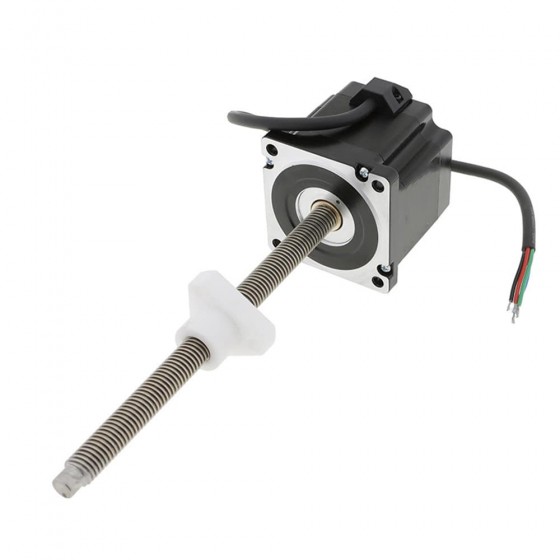

This large lead screw stepping motor is an External type with size 86mm (NEMA 34). It is integrated with a lead screw of Φ15.875mm diameter 200mm length and a POM screw nut. The lead screw's linear travel is 0.0254mm per step or 5.08mm per revolution. The digital stepping drive M860C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 86HB76-5004E-235L5.08
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 4.5Nm
- Rated Current/phase: 5.0A
- Driving Voltage: 24-110V

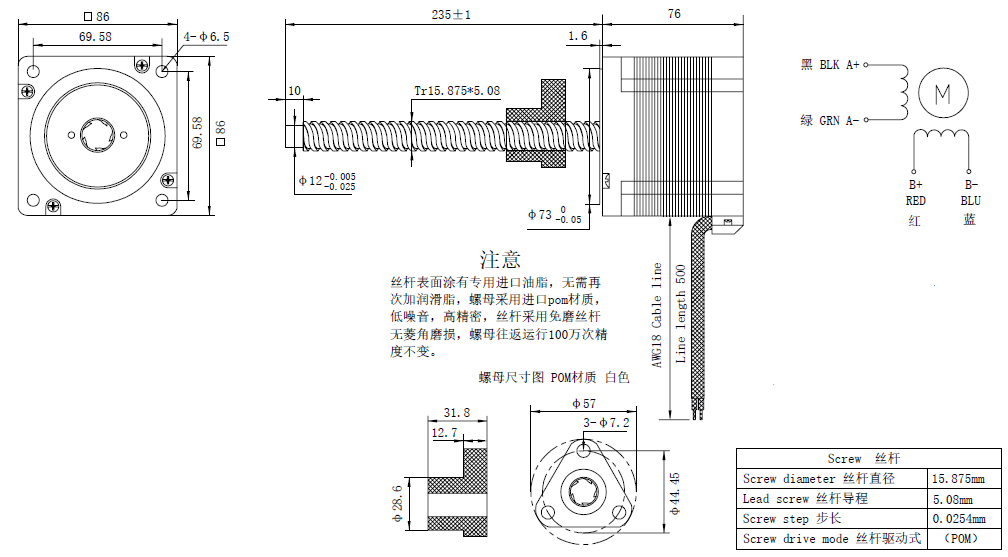

Physical Specification
- Frame Size: 86x86mm
- Body Length: 76mm
- Lead Screw Length: 235mm
- Lead Screw Diameter: Φ15.875mm
- Lead /Step: 0.0254mm
- Lead/Revolution: 5.08mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 2.9kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 86HB76-5004E-235L5.08 |
| Product Type | External Linear Stepper |
| Lead Time | Two Weeks |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.5 |
| Rated Current(A) | 5.0 |
| Driving Voltage(VDC) | 24-110 |
| Frame Size(mm) | 86x86 |
| Stack Length(mm) | 76 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 15.875 |
| Lead Travel/Revolution(mm) | 5.08 |
| Lead Travel/Step(mm) | 0.0254 |
| Lead Screw Length(mm) | 235 |
