Integrated Stepper Drive Motor NEMA 17 Closed Loop with Geared Ratio 5:1 Precision Planetary Gearbox
- Part Number: 42HS48-2004E-YT-MGS5
- Lead Time: In Stock
- Unit Price: US $80.00
- Sales: 6
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
Integrated Stepper Drive Motor NEMA 17 Closed Loop with Geared Ratio 5:1 Precision Planetary Gearbox
Electrical Specification
- Manufacturer Part Number: 42HS48-2004E-YT-MGS5
- Step Angle: 1.8deg
- Holding Torque: 0.59Nm/83.78oz.in
- Rated Current: 2.0A
- Drive Input Voltage: 12-24VDC
- Drive Output PCurrent: 0.2-3.2A
- Drive Microstep Resolution: 200-51200
- Drive Logic Input Voltage: 5.0V
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Frame Size: 42x42mm
- Motor Length: 48mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 5:1
- Efficiency: 96%
- Backlash at No-load: <=30arcmin
- Gearbox Length: 40mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21.5mm
- Keyway Length: 14mm
Contact Us
| Product Details | |
| Model Number | 42HS48-2004E-YT-MGS5 |
| Product Type | Integrated Stepper Servo Motor |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.59 |
| Drive Integrated | Yes |
| Control Mode | Pulse |
| Input Voltage(VDC) | 12-40 |
| Encoder Feedback | Yes |
| Encoder Type | Incremental |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 110 |
| Gearbox Specification | |
| Gearbox Type | Precision Planetary |
| Gearbox Efficiency | 96% |
| Backlash at No-load | 30arcmin |
| Gearbox Length(mm) | 40 |
| Output Shaft Diameter(mm) | 8 |
| Output Shaft Length(mm) | 21.5 |

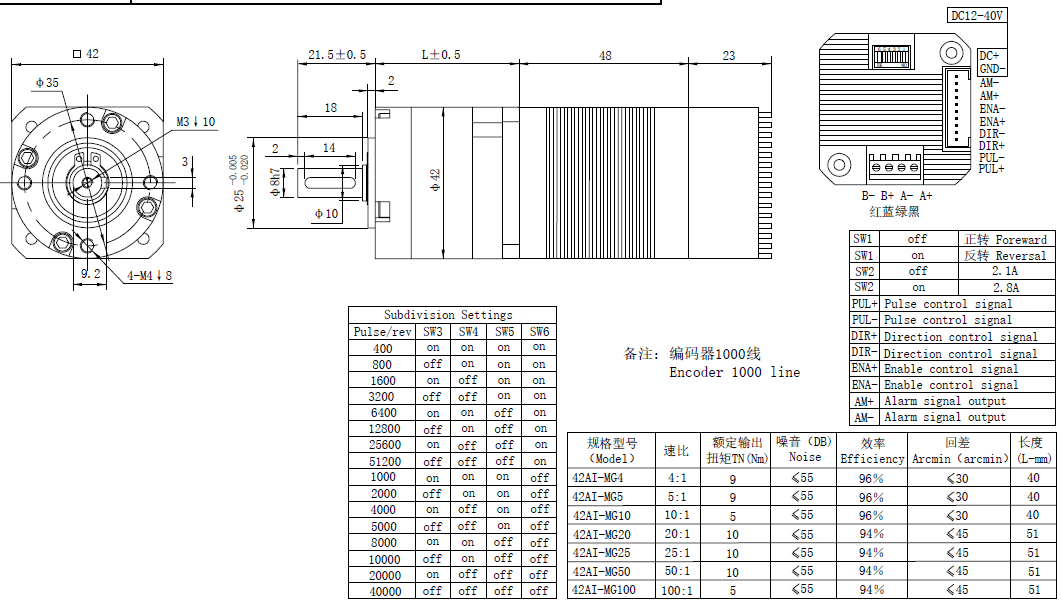

L=40mm
