iHSV57 Series Integrated Servo Drive Motor 180W 3000RPM 0.64Nm 36VDC
- Part Number: iHSV57-30-18-36
- Lead Time: In Stock
- Unit Price: $100.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

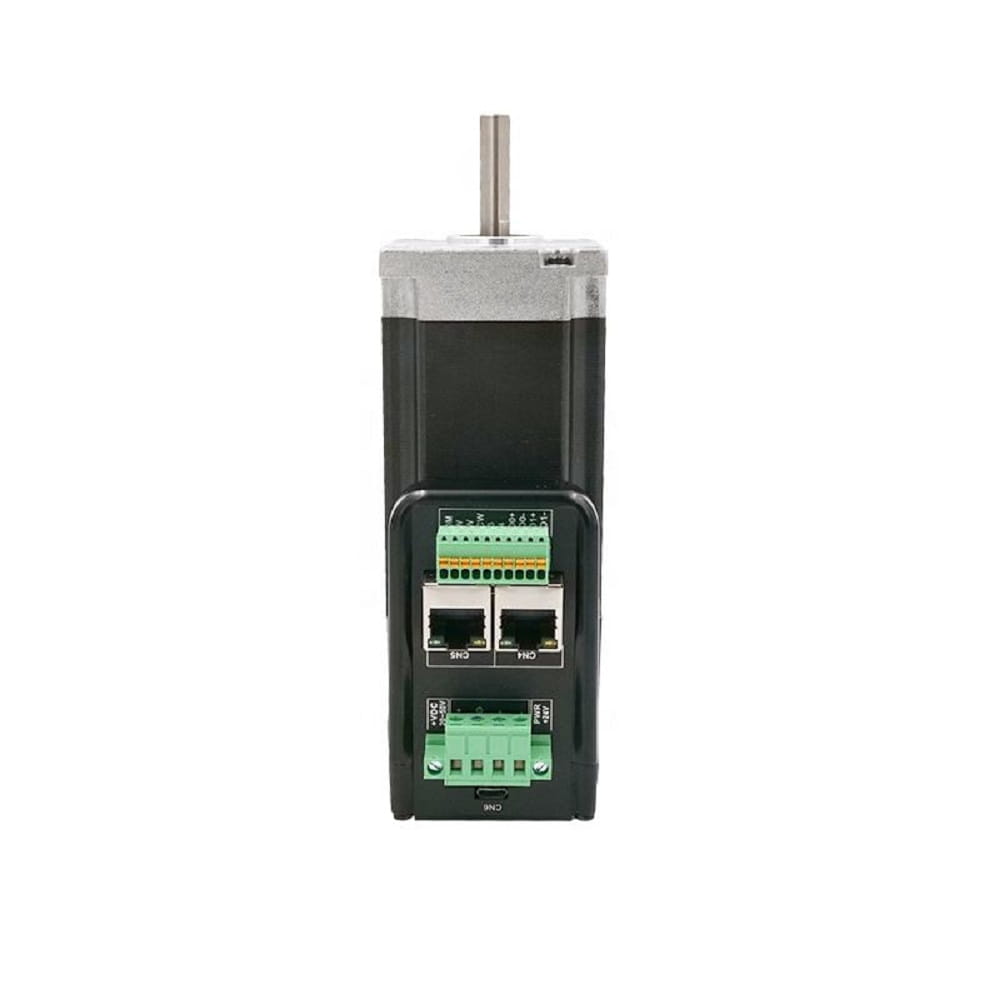

iHSV57 Series integrated servo drive motor is a 57mm frame size servo motor integrated with a 1000PPR encoder and a AC servo driver. Because of the very compact size and all components integrated, the iHSV57 series can save mounting space, eliminate encoder connection & motor wiring time, reduce interference, and save cable and labor costs. It is exactly reliable and affordable, and has excellent performances in many industrial applications such as CNC router, 3D printer, robotics. etc.
Key Features:
- Part Number: iHSV57-30-18-36
- Number of Phase: 3
- Rated Voltage: 36VDC
- Rated Power: 180W
- No-load Speed: 4200RPM
- Rated Speed: 3000RPM
- Rated Current: 7.5A
- Rated Torque: 0.64Nm
- Control Mode: Pulse
- Insulation Class: B
- Frame Size: 57x57mm
- Body Length: 148mm
- Shaft Diameter: Φ8mm
- Shaft Length: 33mm
- Weight: 2.4KG
Contact Us
| Electrical Specification | |
| Phase Number | 3 |
| Holding Torque(Nm) | 0.64 |
| Rated Speed(RPM) | 3000 |
| Rated Power(W) | 180 |
| Drive Integrated | Yes |
| Input Voltage(V) | 36 |
| Encoder Feedback | Yes |
| Control Mode | Pulse |

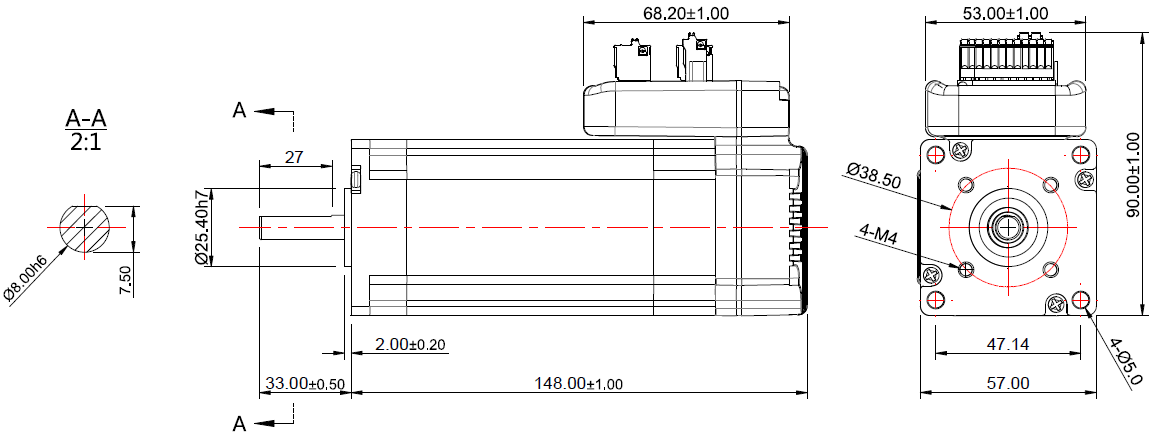

| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 148 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 33 |
