iHSS60 Integrated Stepper Servo Drive Motor NEMA 24 Closed-loop 2.0Nm 36VDC 1000PPR Encoder
- Part Number: iHSS60-36-20
- Lead Time: In Stock
- Unit Price: US $80.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
The iHSS60 Series Integrated Stepper Servo Motor is combined the stepper servo driver with motor together. This integration system makes the servo control technology emerge into the digital stepper drive perfectly. And this combination adopts an optical encoder with high speed position sampling feedback of 50μs. Once the position deviation occurs, it will be fixed immediately. This integrated stepper is very compatible for the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.
Electrical Specification
- Manufacturer Part Number: iHSS60-36-20
- Step Angle: 1.8deg
- Holding Torque: 2.0Nm/284oz.in
- Drive Input Voltage: 24-36VDC
- Drive Output Current: 5.0A
- Drive Micro-step Resolutions: 400-51200
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR

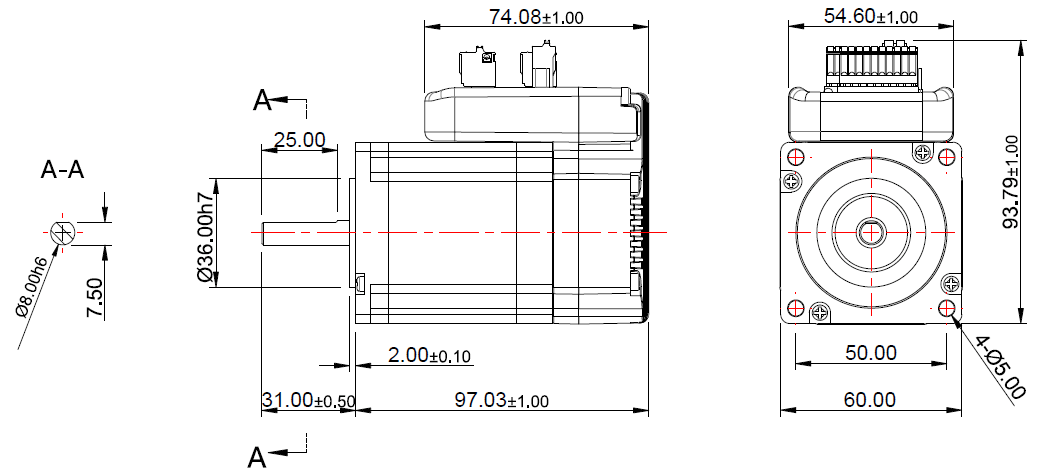

Physical Specification
- Frame Size: 60x60mm
- Body Length: 97mm
- Shaft Diameter: Φ8mm
- Shaft Length: 31mm
- D-cut Length: 25mm
- Weight: 1.8KG
Contact Us
| Product Details | |
| Model Number | iHSS60-36-20 |
| Product Type | Integrated Stepper Servo Motor |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 2.0 |
| Drive Integrated | Yes |
| Control Mode | Pulse |
| Input Voltage(VDC) | 24-36 |
| Encoder Feedback | Yes |
| Encoder Type | Incremental |
| Physical Specification | |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 97 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 31 |
| Weight(KG) | 1.8 |
