iESS60 Integrated Stepper Servo Drive Motor NEMA 24 Closed-loop 2.0Nm 36VDC 17Bit Encoder
- Part Number: iESS60-36-20-17BC
- Lead Time: In Stock
- Unit Price: US $80.00
- *Ship from China
The iESS60 Series Integrated Stepper Servo Motor is combined the stepper servo drive with step motor together. This integration system makes the servo control technology emerge into the digital stepper drive perfectly. And this combination adopts an optical encoder with high speed position sampling feedback of 50μs. Once the position deviation occurs, it will be fixed immediately. This integrated stepper is very compatible for the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.
It can be widely applied in various industries and fields such as kitchen equipment, stage lighting, screw machines, industrial robots, AVG carts, printing equipment, special machine tools, textile and garment equipment, medical equipment, electronic manufacturing equipment, packaging, etc. It is especially suitable for small-sized equipment or equipment with strict space requirements.
Electrical Specification
- Manufacturer Part Number: iESS60-36-20-17BC
- Step Angle: 1.8deg
- Holding Torque: 2.0Nm/284oz.in
- Rated Current/Phase: 5.0A
- Drive Input Voltage: 24-36VDC
- Drive Output Current: 5.0A
- Drive Micro-step Resolutions: 400-51200
- Encoder Type: Incremental
- Encoder Resolution: 17Bit

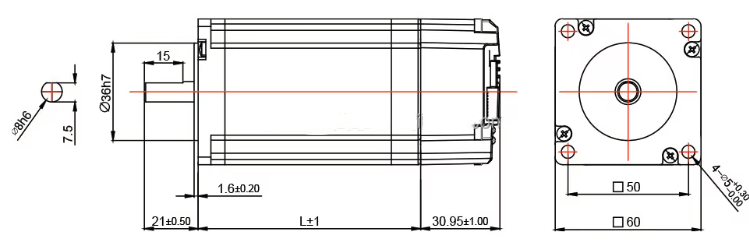

Physical Specification
- Frame Size: 60x60mm
- Body Length: 96mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Weight: 1.4KG
Contact Us
| Product Details | |
| Model Number | iESS60-36-20-17BC |
| Product Type | Integrated Stepper Servo Motor |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 2.0 |
| Drive Integrated | Yes |
| Control Mode | Pulse |
| Input Voltage(VDC) | 24-36 |
| Encoder Feedback | Yes |
| Encoder Type | Incremental |
| Physical Specification | |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 96 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Weight(KG) | 1.5 |
L=65mm
