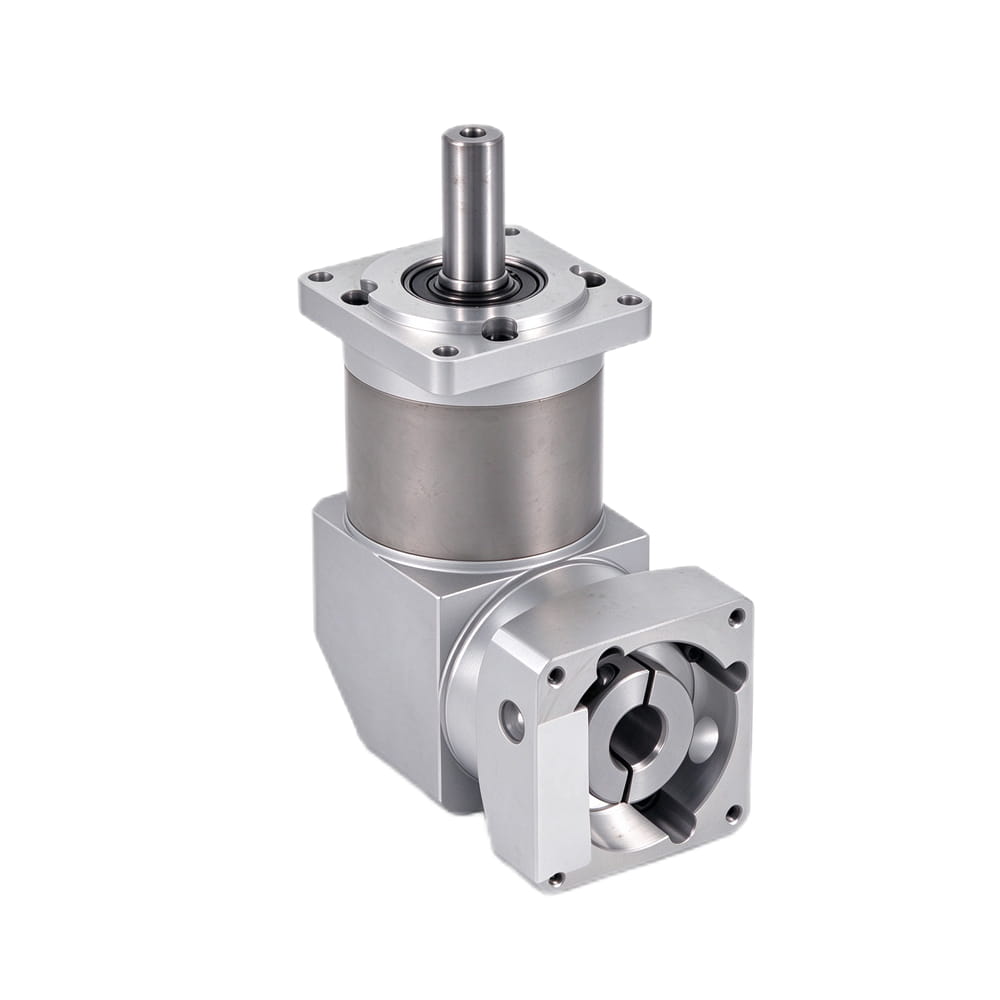

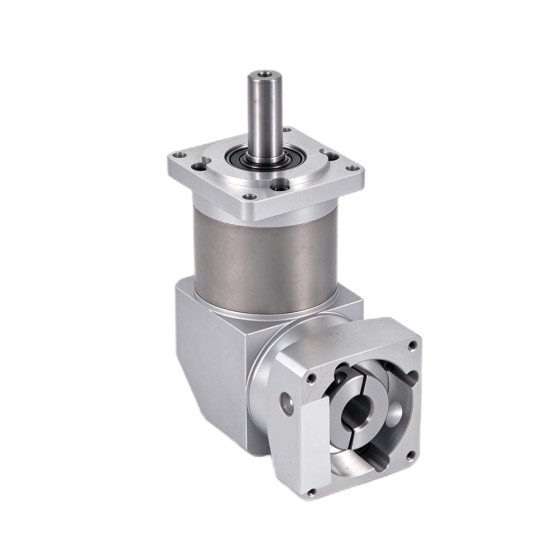

HPZS60-MA Low-Backlash Precision Right Angle Planetary Gearbox (≤10 arcmin) for 60mm Servo Motor

This HPZS60-MA low-backlash precision right-angle planetary gearbox is engineered for 60 mm servo motors, featuring a space-saving 90-degree design with a built-in input coupling that accepts a Φ14 mm diameter input shaft and a maximum 30mm long input shaft. Its right-angle configuration allows the output shaft to be routed conveniently where an inline gearbox would be difficult to mount. The gearbox delivers low backlash of ≤10 arcmin (single-stage) or ≤15 arcmin (two-stage), with reduction ratios from 4:1 to 70:1 and rated output torque of 10–32 N·m depending on the ratio. It handles a rated input speed of 3,000 RPM (max. 6,000 RPM) and loads of 450 N radial / 230 N axial, operating at ≤55 dB with IP54 protection, permanent lubrication, a 20,000-hour lifespan, and an ambient temperature range of -20°C to +150°C. Its 60 mm square flange, right-angle layout, and low-backlash gearing make it well suited to space-constrained precision axes in CNC machines, industrial robotics, automated production lines, packaging machinery, laser processing equipment, and medical or semiconductor handling systems where efficient torque multiplication and flexible shaft routing are required.

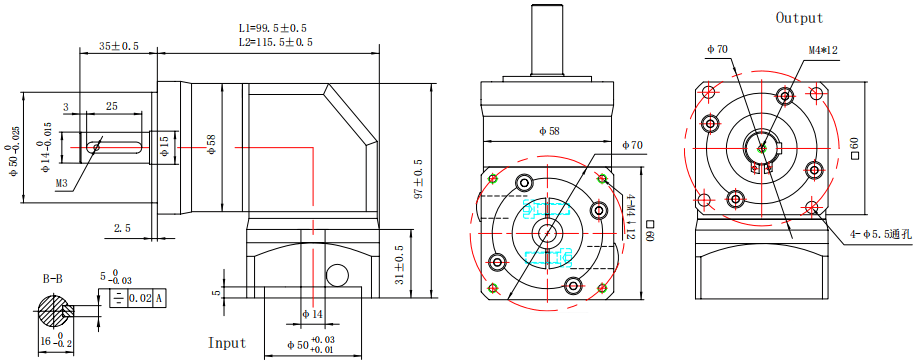

HPZS60-MA General Specification

• Manufacturer Part Number: HPZS60-MA
• Product Type:  Right Angle Planetary Gearbox
• Rated Input Speed: 3,000 RPM
• Max. Input Speed: 6,000 RPM
• Max. Radial Load: 450 N
• Max. Axial Load: 230 N
• Noise: ≤55 dB
• Protection Class: IP54
• Lifespan: 20,000 Hours
• Ambient Temperature: -20° to +150°
• Lubrication Type: Lifetime Lubrication
• Output Shaft Type: Keyway
• Output Shaft Diameter: Φ14 mm
• Output Shaft Length: 35 mm
• Input Shaft Diameter: Φ14 mm
• Input Shaft Length: Max. 30 mm
