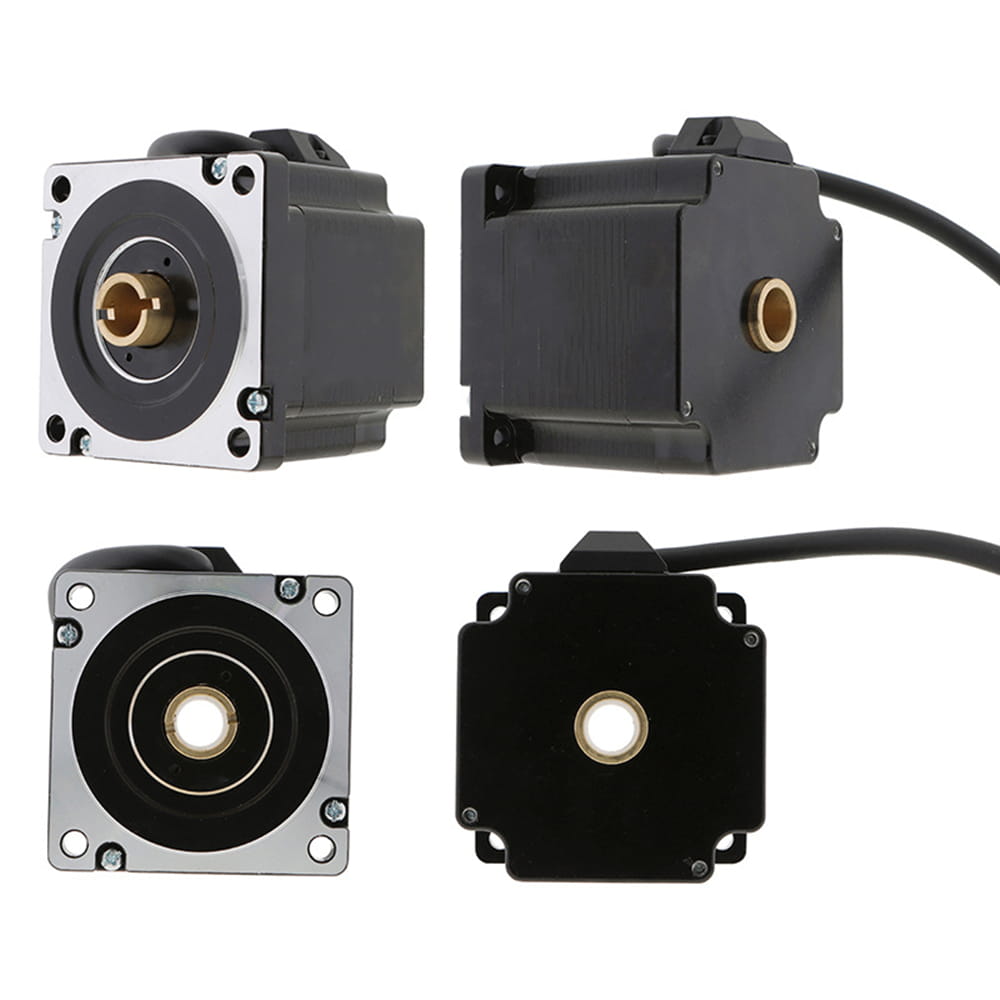

This large hollow shaft stepping motor has a size 86mm NEMA 34 with body length 76mm, 4.0A rated current and holding torque 4.5Nm. A hollow shaft with outer diameter Φ20mm & inner diameter Φ15mm is available and also a double shaft with a front shaft length 10mm and rear shaft length 3mm is designed. The digital stepping drive M860C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 86HB76-4004K15
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 4.5Nm
- Rated Current/phase: 4.0A
- Driving Voltage: 24-110V

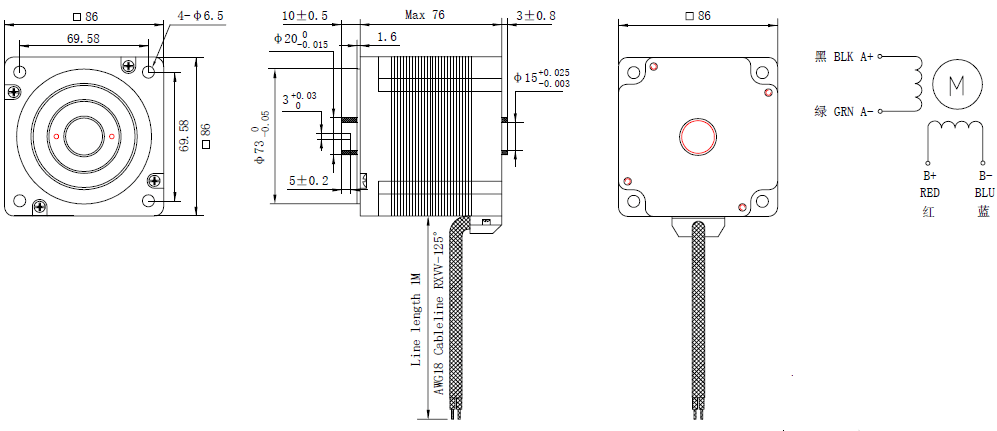

Physical Specification
- Frame Size: 86x86mm
- Body Length: 76mm
- Outer Shaft Diameter: Φ20mm
- Inner Shaft Diameter: Φ15mm
- Front Shaft Length: 10mm
- Rear Shaft Length: 3mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 2.9kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 86HB76-6004K16 |
| Product Type | Hollow Shaft Stepper Motor |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.5 |
| Rated Current(A) | 4.0 |
| Driving Voltage(VDC) | 24-110 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 76 |
| Inner Shaft Diameter(mm) | 15 |
| Outer Shaft Diameter(mm) | 20 |
| Front Shaft Length(mm) | 10 |
| Rear Shaft Length(mm) | 3 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 2.9 |
