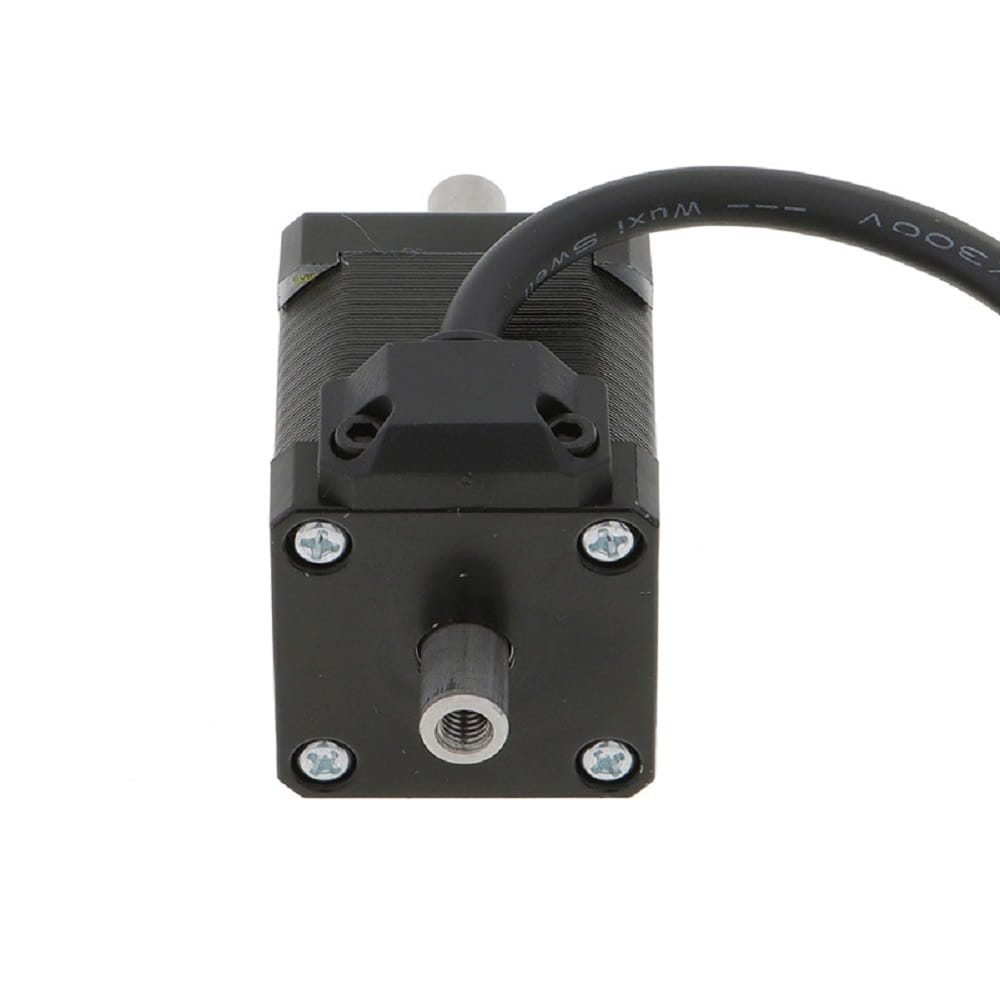

This hollow shaft stepping motor has a size 35mm (NEMA 14) with body length 45mm, 1.5A rated current and holding torque 0.4Nm. A hollow shaft with outer diameter Φ8mm & inner diameter Φ4.2mm is available and also a front shaft length 24mm & a rear shaft length 10mm is designed. The digital stepping drive M332C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 35HB45-1504K
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.4Nm
- Rated Current/phase: 1.5A
- Driving Voltage: 12-24V

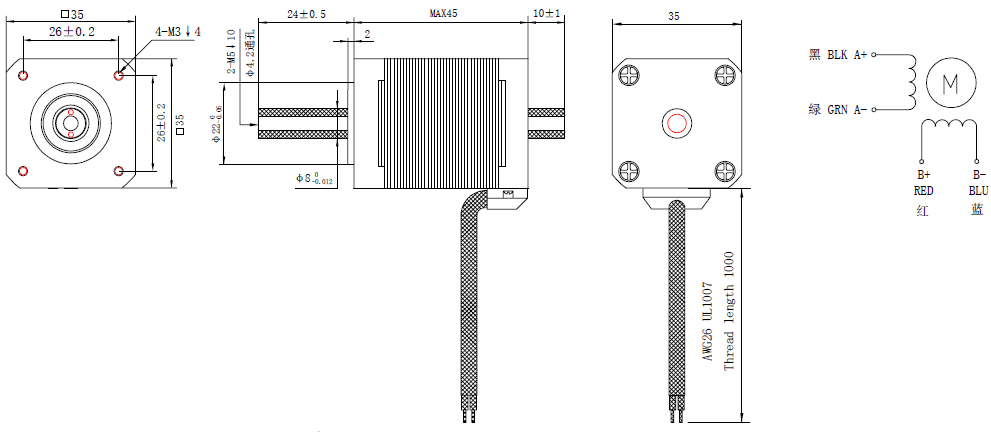

Physical Specification
- Frame Size: 35x35mm
- Body Length: 45mm
- Outer Shaft Diameter: Φ8.0mm
- Inner Shaft Diameter: Φ4.2mm
- Front Shaft Length: 24mm
- Rear Shaft Length: 10mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.3kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 35HB45-1504K |
| Product Type | Hollow Shaft Stepper Motor |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.4 |
| Rated Current(A) | 1.5 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 45 |
| Inner Shaft Diameter(mm) | 4.2 |
| Outer Shaft Diameter(mm) | 8 |
| Front Shaft Length(mm) | 24 |
| Rear Shaft Length(mm) | 10 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.3 |
