High Torque NEMA 17 Stepper Motor Bipolar 1.8deg 1.0A 0.5Nm/71oz.in 42x40mm 4 Leads
- Part Number: 42HS40-1004S
- Lead Time: In Stock
- Unit Price: US $15.00
- Sales: 332
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This high torque bipolar NEMA 17 stepper motor has 40mm body length and holding torque 0.5Nm/701oz.in with current 1.0A each phase.
Electrical Specification
- Manufacturer Part Number: 42HS40-1004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.5Nm/71oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 6.5ohms
- Inductance: 13mH
- Driving Voltage: 12-24V

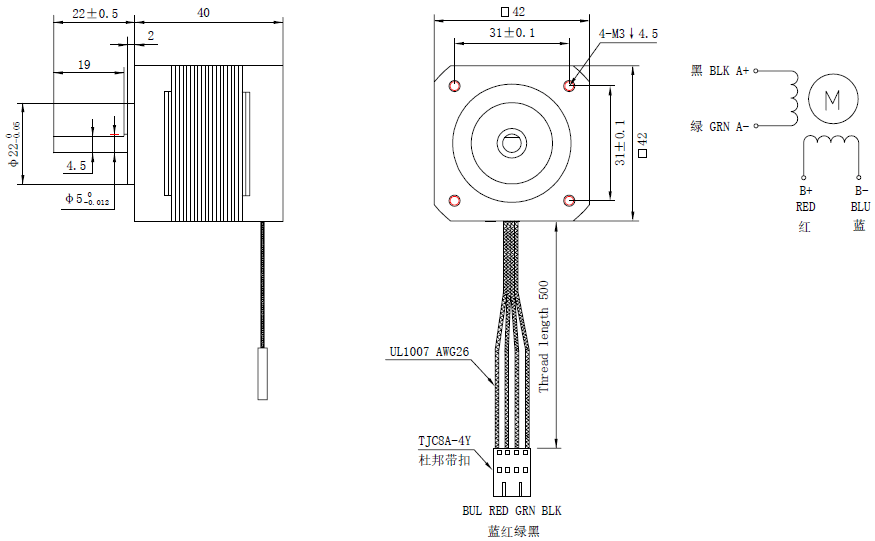

Physical Specification
- Frame Size: 42x42mm
- Body Length: 40mm
- Shaft Diameter: Φ5mm
- Shaft Length: 22mm
- D-cut Length: 19mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.3kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 42HS40-1004S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.5 |
| Holding Torque(oz.in) | 71 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 42x42 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.3 |
