12V/24V Φ16mm Coreless Brushless Planetary Gearbox Motor 10-4000 RPM 0.6 N-m
- Brand: Frankhumotor
- Part Number: 16BLC36-PG
- Lead Time: In Stock
- Unit Price: US $185.00
- *Ship from China

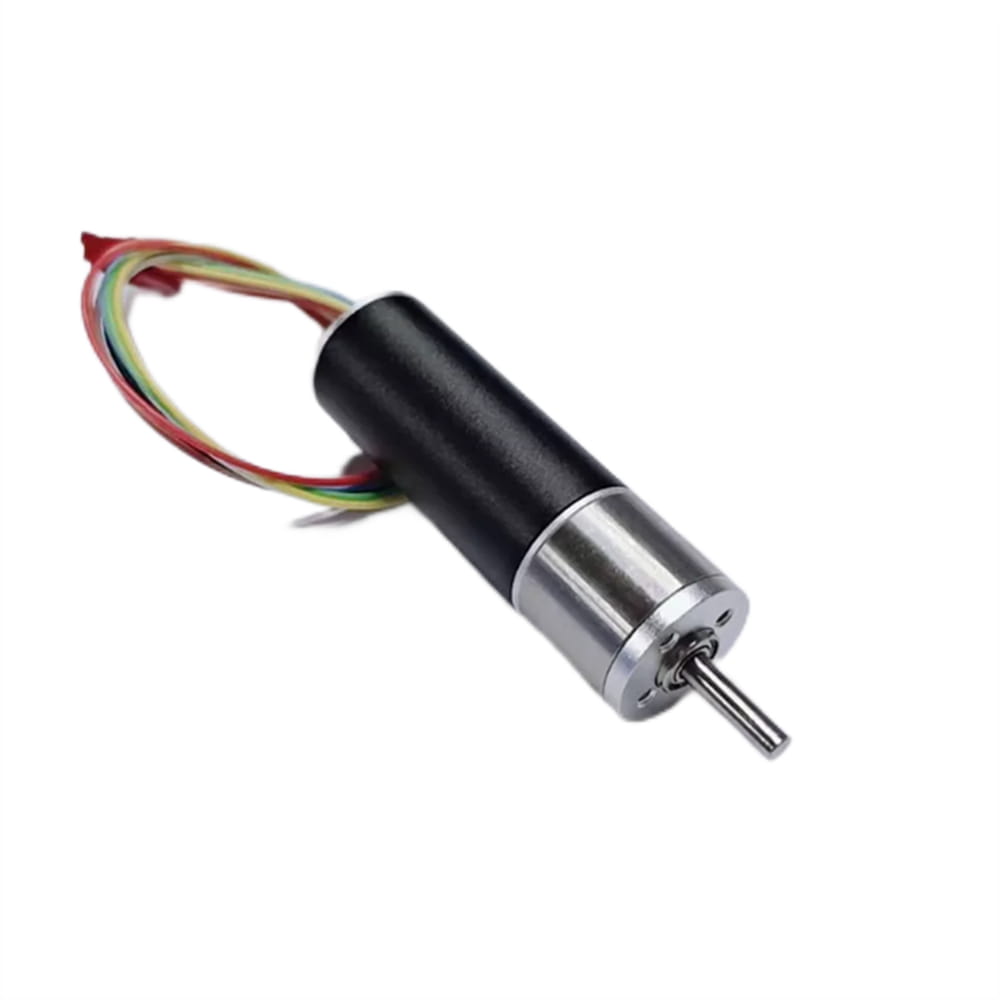

This mini electric geared motor combines a diameter 16 mm, coreless brushless DC motor with a high-quality, precision-machined planetary gearbox. With a reduction ratio from 3.8:1 to 850.3:1, it delivers a no-load speed range of 10-4,000 RPM and an output torque of 0.6 N·m. It supports variable-speed control and reversible (CW/CCW) operation. Compared with ordinary brushless DC motors, the coreless motor offers higher efficiency, a higher power-to-weight ratio, faster response, longer service life, and higher torque output. Typical applications include robotics, medical devices, aerospace, and more.
12 VDC Φ16mm Coreless Brushless Planetary Geared Motor
| Reduction Class | Gear Ratio | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Weight | Total Length |
| (V DC) | RPM | mA | RPM | N-m | A | g | (L+36)(mm) | ||
| 1 | 3.8:1 | 12 | 3000 | 70 | 1160 | 0.03 | 0.60 | 52 | 50.4 |
| 5.4:1 | 1389 | 70 | 806 | 0.04 | 0.60 | 52 | 50.4 | ||
| 2 | 14.1:1 | 533 | 85 | 309 | 0.09 | 0.61 | 58 | 54.5 | |
| 20.2:1 | 370 | 85 | 215 | 0.13 | 0.61 | 58 | 54.5 | ||
| 29.1:1 | 275 | 85 | 149 | 0.18 | 0.61 | 58 | 54.5 | ||
| 3 | 52.7:1 | 142 | 100 | 82 | 0.30 | 0.63 | 64 | 58.6 | |
| 75.9:1 | 99 | 100 | 57 | 0.42 | 0.63 | 64 | 58.6 | ||
| 109.4:1 | 69 | 100 | 40 | 0.60 | 0.62 | 64 | 58.6 | ||
| 157.5:1 | 48 | 100 | 34 | 0.60 | 0.46 | 64 | 58.6 | ||
| 4 | 197.8:1 | 38 | 115 | 28 | 0.60 | 0.43 | 70 | 62.7 | |
| 284.8:1 | 26 | 115 | 22 | 0.60 | 0.34 | 70 | 62.7 | ||
| 410.1:1 | 18 | 115 | 16 | 0.60 | 0.27 | 70 | 62.7 | ||
| 590.5:1 | 13 | 115 | 12 | 0.60 | 0.22 | 70 | 62.7 | ||
| 850.3:1 | 9 | 115 | 8 | 0.60 | 0.19 | 70 | 62.7 |
0.60 N-m limited by the continuous torque ofthe maximum load of the gearbox.
24 VDC Φ16mm Coreless Brushless Planetary Geared Motor
| Reduction Class | Gear Ratio | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Weight | Total Length |
| (V DC) | RPM | mA | RPM | N-m | A | g | (L+36)(mm) | ||
| 1 | 3.8:1 | 24 | 4000 | 70 | 3340 | 0.02 | 0.49 | 52 | 50.4 |
| 5.4:1 | 2778 | 70 | 2319 | 0.03 | 0.49 | 52 | 50.4 | ||
| 2 | 14.1:1 | 1067 | 85 | 891 | 0.07 | 0.51 | 58 | 54.5 | |
| 20.2:1 | 741 | 85 | 619 | 0.10 | 0.51 | 58 | 54.5 | ||
| 29.1:1 | 514 | 85 | 430 | 0.14 | 0.51 | 58 | 54.5 | ||
| 3 | 52.7:1 | 284 | 100 | 238 | 0.24 | 0.52 | 64 | 58.6 | |
| 75.9:1 | 198 | 100 | 165 | 0.35 | 0.52 | 64 | 58.6 | ||
| 109.4:1 | 137 | 100 | 115 | 0.50 | 0.52 | 64 | 58.6 | ||
| 157.5:1 | 95 | 100 | 82 | 0.60 | 0.45 | 64 | 58.6 | ||
| 4 | 197.8:1 | 76 | 115 | 66 | 0.60 | 0.42 | 70 | 62.7 | |
| 284.8:1 | 53 | 115 | 48 | 0.60 | 0.33 | 70 | 62.7 | ||
| 410.1:1 | 37 | 115 | 34 | 0.60 | 0.27 | 70 | 62.7 | ||
| 590.5:1 | 25 | 115 | 24 | 0.60 | 0.22 | 70 | 62.7 | ||
| 850.3:1 | 18 | 115 | 17 | 0.60 | 0.19 | 70 | 62.7 |
0.60 N-m limited by the continuous torque ofthe maximum load of the gearbox.
Connection
| P1 | P2 | P3 | P4 | P5 | P6 | P7 | P8 |
| MA | MB | MC | HA | HB | HC | GND | +5V |
| BLU | YEL | WHT | BLU | YEL | WHT | BLK | RED |

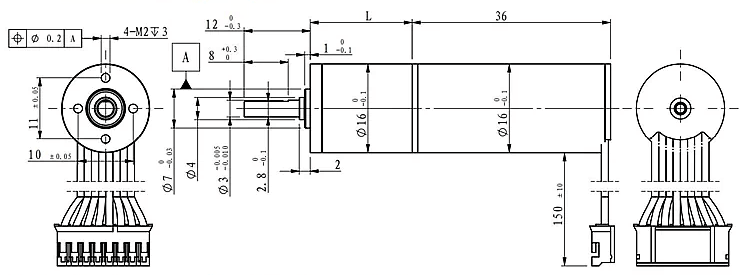

Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
