Encoder Stepper Motor NEMA 34 Size 86mm 3 Phase 3.0A 7Nm
- Part Number: 86HS127-3003D-E1000
- Lead Time: In Stock
- Unit Price: $89.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This 3 Phase closed-loop NEMA 34 stepper motor with step angle 1.2deg, which is integrated with a 1000PPR optical incremental encoder, has a rated current of 3.0A and generates a good holding 7.0Nm/994oz.in. It performs more accuracy, higher torque, less motor heating, lower power consumption, and better response to external factors, compared to the open loop stepper motors.

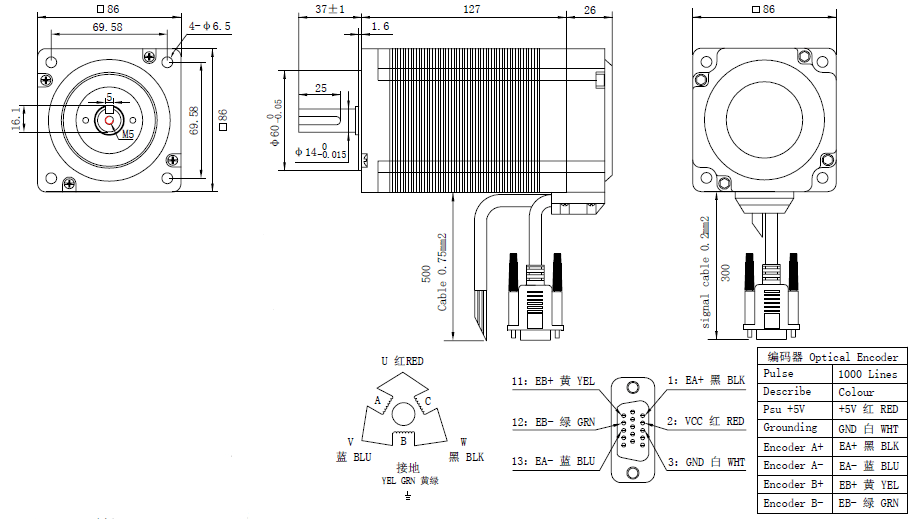

Motor Specification
- Part Number: 86HS127-3003D-E1000
- Step Angle: 1.2deg
- Holding Torque: 7.0Nm/994oz.in
- Rated Current/phase: 6.0A
- Driving Valtage: 24-110V
- Frame Size: 86x86mm
- Body Length: 127mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Length: 25mm
- Number of Leads: 3
- Lead Length: 500mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 270mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 7 |
| Holding Torque(oz.in) | 994 |
| Rated Current(A) | 3.0 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 127 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Driving Voltage(VDC) | 24-110 |
| Encoder Specification | |
| Encoder Resolution(PPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
