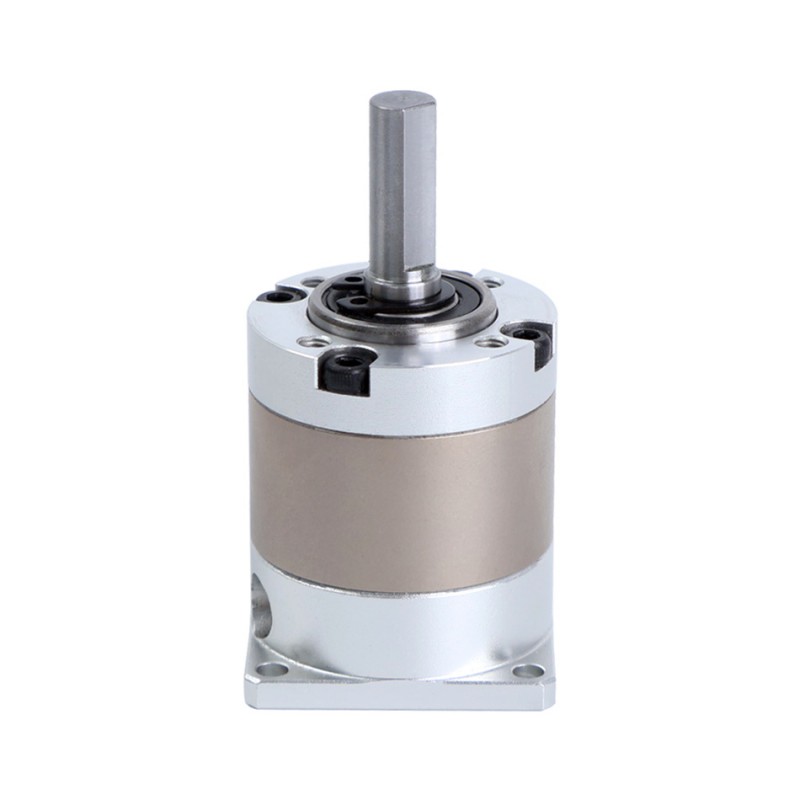

EGS Series Planetary Gearbox Gear Ratio 25:1 Backlash 20arc-min for NEMA 11 Stepper Motor
- Part Number: EGS11-G25
- Lead Time: One Week
- Unit Price: $50.00
- Sales: 14
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

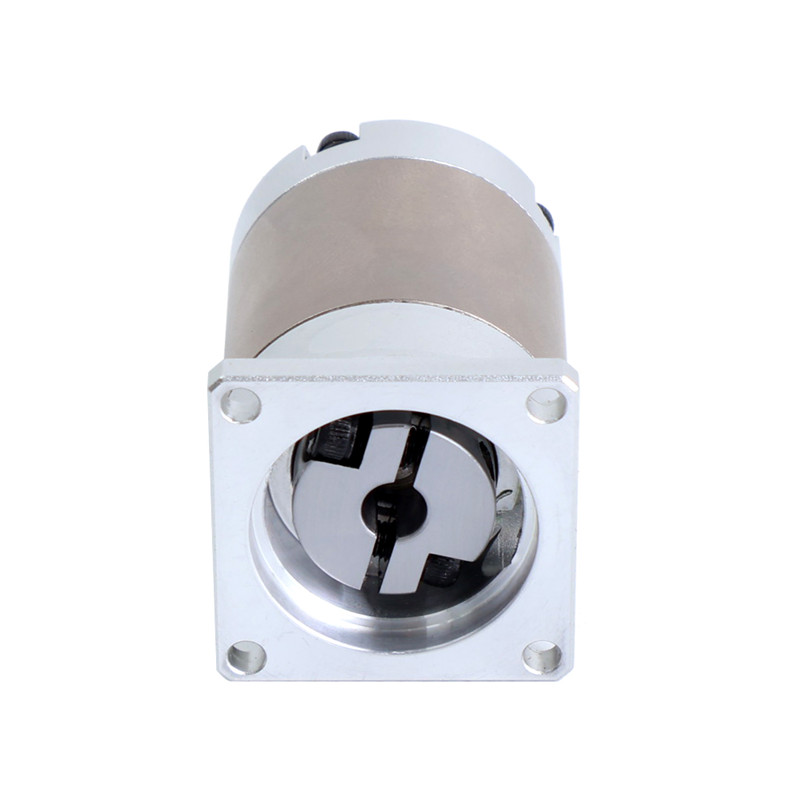

This size 28mm high-precision planetary gearbox has a gear ratio 25:1 and a maximum 20arcmin low backlash. And this EGS11 in-line planetary reducer has a built-in input shaft coupling so it can commonly match the NEMA 11 stepper motor with a diameter of 5mm and a shaft length of 6-10mm or other motors who has the same frame size. It's an excellent solution to applications that require good accuracy and reliability at an exceptional value.
Specifications
- Part Number: EGS11-G25
- Gearbox Type: Planetary
- Gear Ratio: 25:1
- Efficiency: 94%
- Backlash at No-load: <=20arcmin
- Rated Torque: 4.0Nm
- Noise: <=55dB
- Waterproof Rating: IP54
- Lifetime: 20,000 hours
- Frame Size: 28x28mm
- Gearbox Length: 41.5mm
- Output Shaft Type: D-cut
- Output Shaft Diameter: Φ6mm
- Output Shaft Length: 20mm
- Input Shaft Diameter: Φ5mm
- Input Shaft Length: 6-10mm
Contact Us
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 25:1 |
| Efficiency | 94% |
| Backlash at No-load | 20arcmin |
| Frame Size(mm) | 28x28 |
| Gearbox Length(mm) | 41.5 |
| Input Shaft Diameter(mm) | 5 |
| Input Shaft Length(mm) | 6-10 |
| Output Shaft Diameter(mm) | 6 |
| Output Shaft Length(mm) | 20 |
| Output Shaft Type | D-cut |
