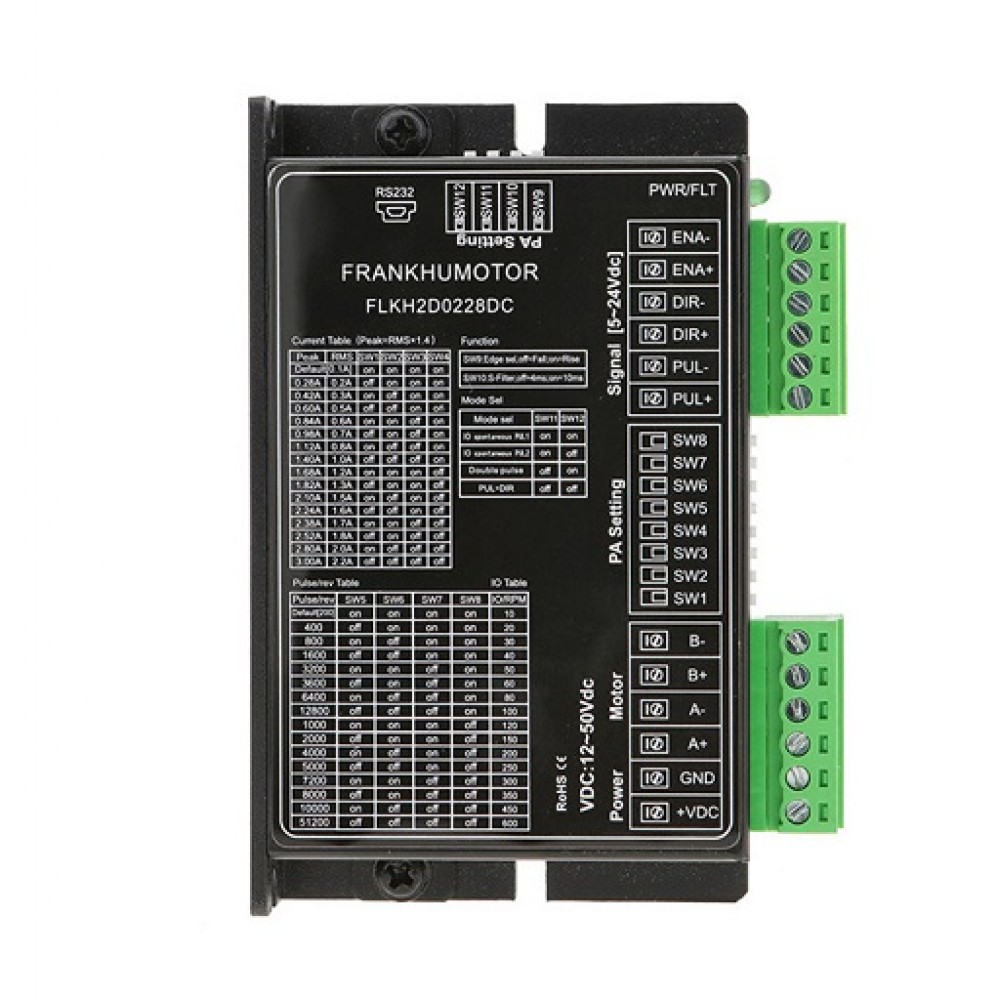

I/O Control Digital Stepper Motor Drive 0.1-2.2A 12-50VDC FLKH2D0228DC
- Part Number: FLKH2D0228DC
- Lead Time: In Stock
- Unit Price: $19.90
- Sales: 680
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This stepper drive is definitely capable of power wide range of 2 phase stepper motors of NEMA 6, 8, 11, 14, 16 and 17. And it has also built with an internal spontaneous pulser and supports a wide speed range of 10-600RPM, which more easily drives the motor.
Key Features
- RS232 debugging interface
- Pulse & Direction(PUL/DIR) or CW/CCW(double pulse) control
- I/O internal spontaneous pulse & I/O speed control 10-600RPM
- Logic Input Voltage: 5V/24V
- Output Current: 0.18-3.0A(2.2RMS)
- Input Voltage: +12-50VDC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension: 93x56x21mm
- Weight: Approx. 0.2kg
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Signal Voltage(V) | 5/24 |
| Input Voltage(VDC) | 12-48 |
| Output Current(A) | 0.1-3.0 |
| Micro-step Resolutions | 200-51200 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 93x56x21 |
| Weight(KG) | 0.2 |
