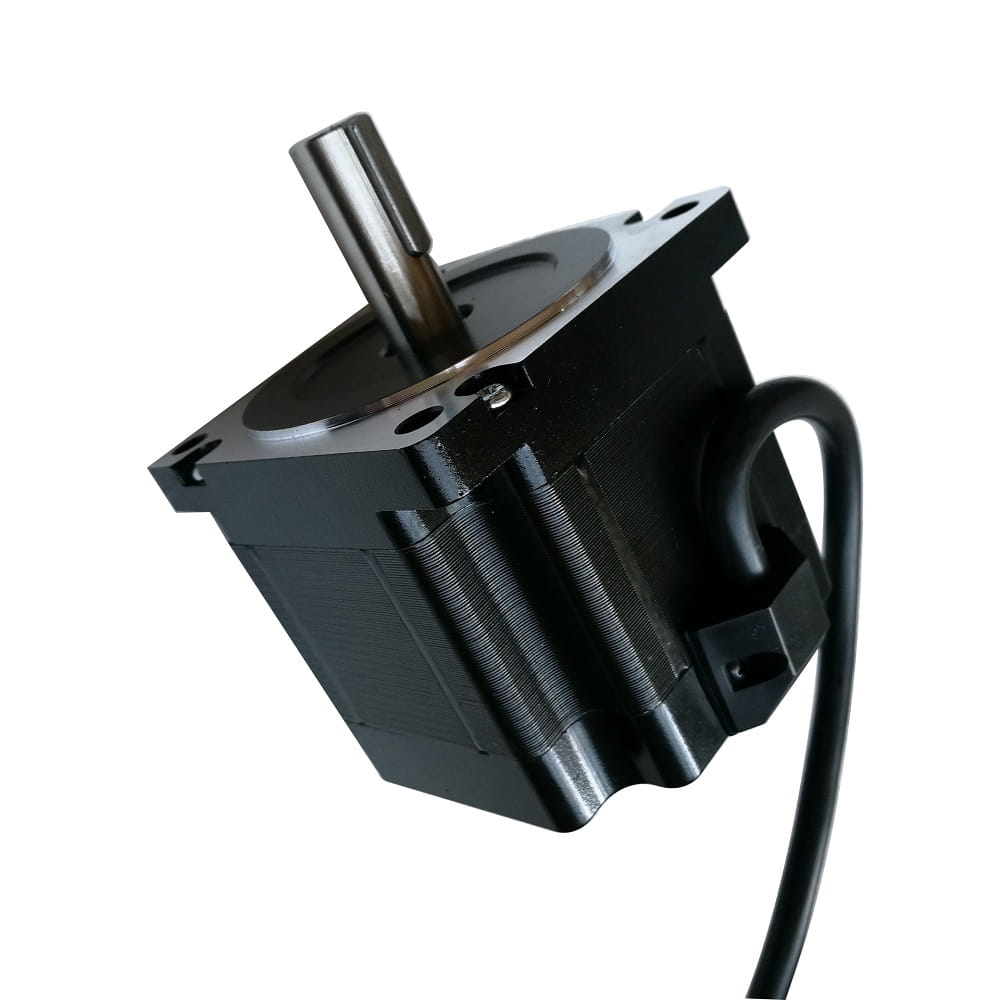

CNC Machine Stepping Motor 6.0A 4.0Nm 86-78mm 4 Leads NEMA 34
- Part Number: 86HB78-6004S
- Lead Time: In Stock
- Unit Price: US $45.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This CNC machine stepping motor NEMA 34 has a 1.8° step angle (200 steps/revolution). Each phase draws rated current 6.0A, allowing for a holding torque of 4.0Nm. The motor has four color-coded wires (bipolar design) terminated with bare leads and body length 78mm. The digital stepping drive M860C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 86HB78-6004S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 4.0Nm
- Rated Current/phase: 6.0A
- Driving Voltage: 24-110V

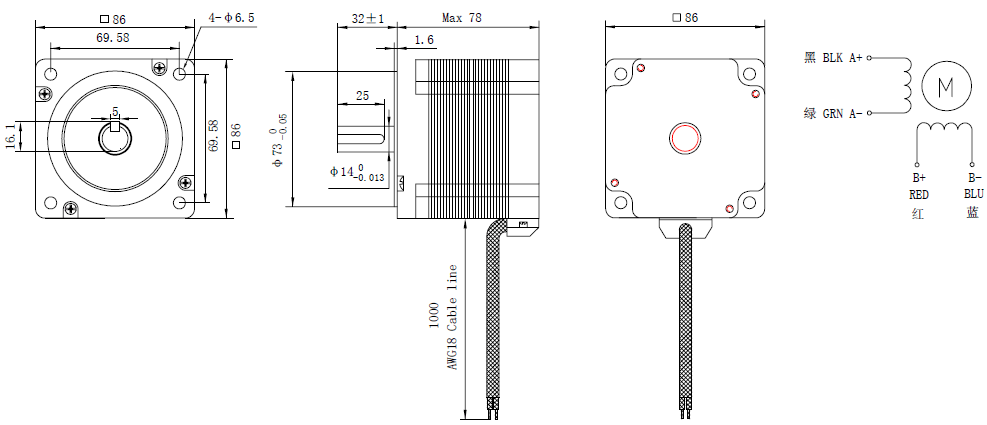

Physical Specification
- Frame Size: 86x86mm
- Body Length: 78mm
- Shaft Diameter: Φ14mm
- Shaft Length: 32mm
- Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 2.9kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 86HB78-6004S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.0 |
| Rated Current(A) | 6.0 |
| Driving Voltage(VDC) | 24-110 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 78 |
| Output Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 32 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 2.9 |
