CNC Machine Stepping Motor 5.0A 4.5Nm 86-80mm 4 Leads NEMA 34
- Part Number: 86HD8014-35B
- Lead Time: In Stock
- Unit Price: US $45.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

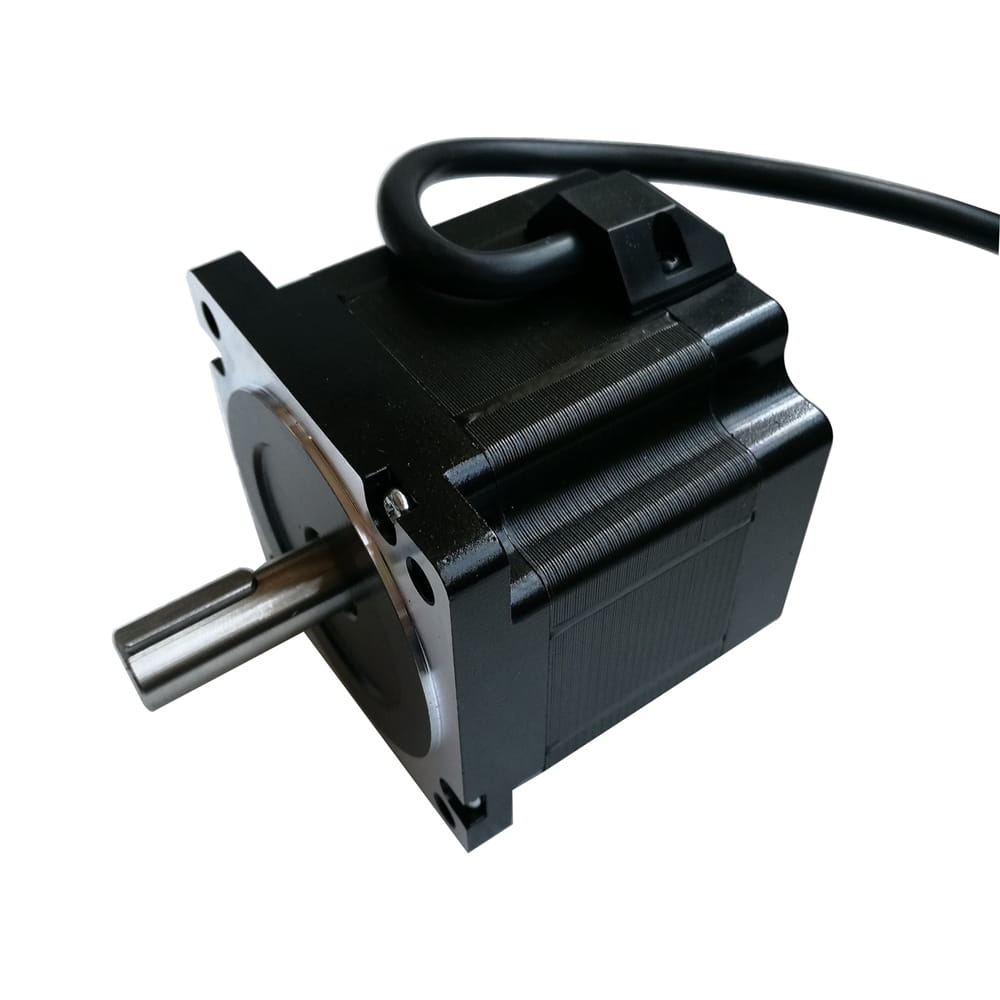

This CNC machine stepping motor NEMA 34 has a 1.8° step angle (200 steps/revolution). Each phase draws rated current 5.0A, allowing for a holding torque of 4.5Nm. The motor has four color-coded wires (bipolar design) terminated with bare leads and a short body length 80mm. The digital stepping drive OK2D872 is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 86HD8014-35B
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 4.5Nm
- Rated Current/phase: 5.0A
- Phase Resistance: 0.6ohms
- Inductance: 4.0mH
- Driving Voltage: 24-48V

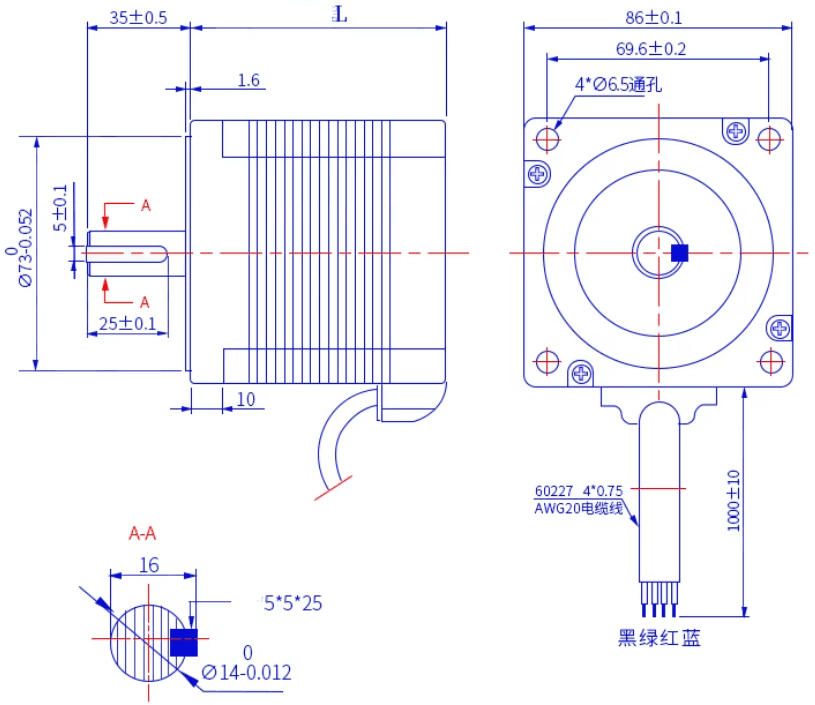

Physical Specification
- Frame Size: 86x86mm
- Body Length: 80mm
- Shaft Diameter: Φ14mm
- Shaft Length: 35mm
- Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 3.2kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 86HD8014-35B |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.5 |
| Rated Current(A) | 5.0 |
| Driving Voltage(VDC) | 24-48 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 80 |
| Output Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 35 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 3.2 |
L: 80mm
