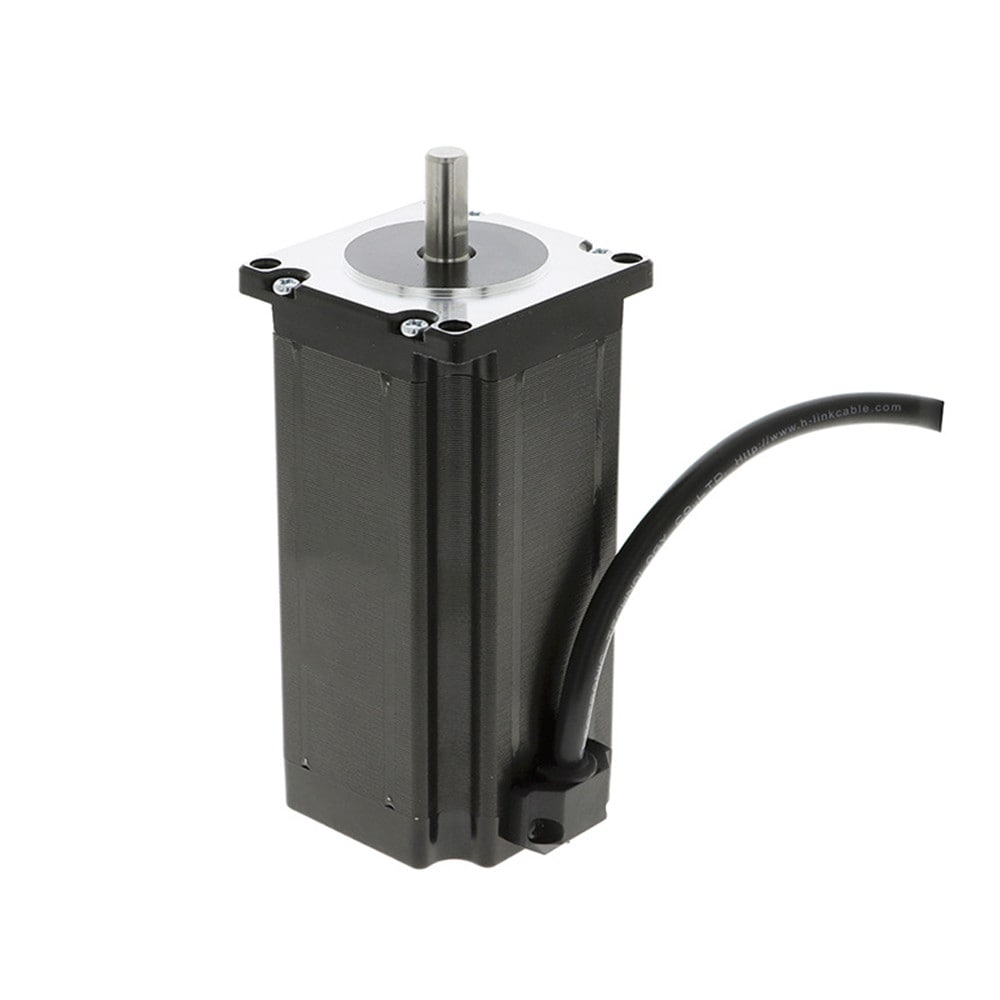

CNC Machine Stepping Motor 4.2A 3.0Nm 57-112mm 4 Leads NEMA 23
- Part Number: 57HB112-4204S
- Lead Time: In Stock
- Unit Price: US $35.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This CNC machine stepping motor NEMA 23 has a 1.8° step angle (200 steps/revolution). Each phase draws rated current 4.2A, allowing for a holding torque of 3.0Nm. The motor has four color-coded wires (bipolar design) terminated with bare leads and body length 112mm. The digital stepping drive M556C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 57HB112-4204S
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 3.0Nm
- Rated Current/phase: 4.2A
- Driving Voltage: 24-48V

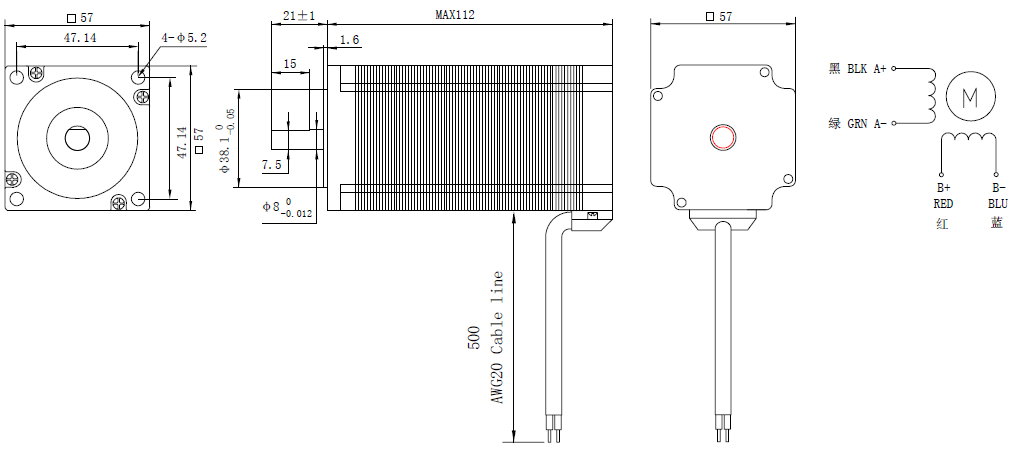

Physical Specification
- Frame Size: 57x57mm
- Body Length: 112mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.7kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 57HB112-4204S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 3.0 |
| Rated Current(A) | 4.2 |
| Driving Voltage(VDC) | 24-48 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 112 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.7 |
