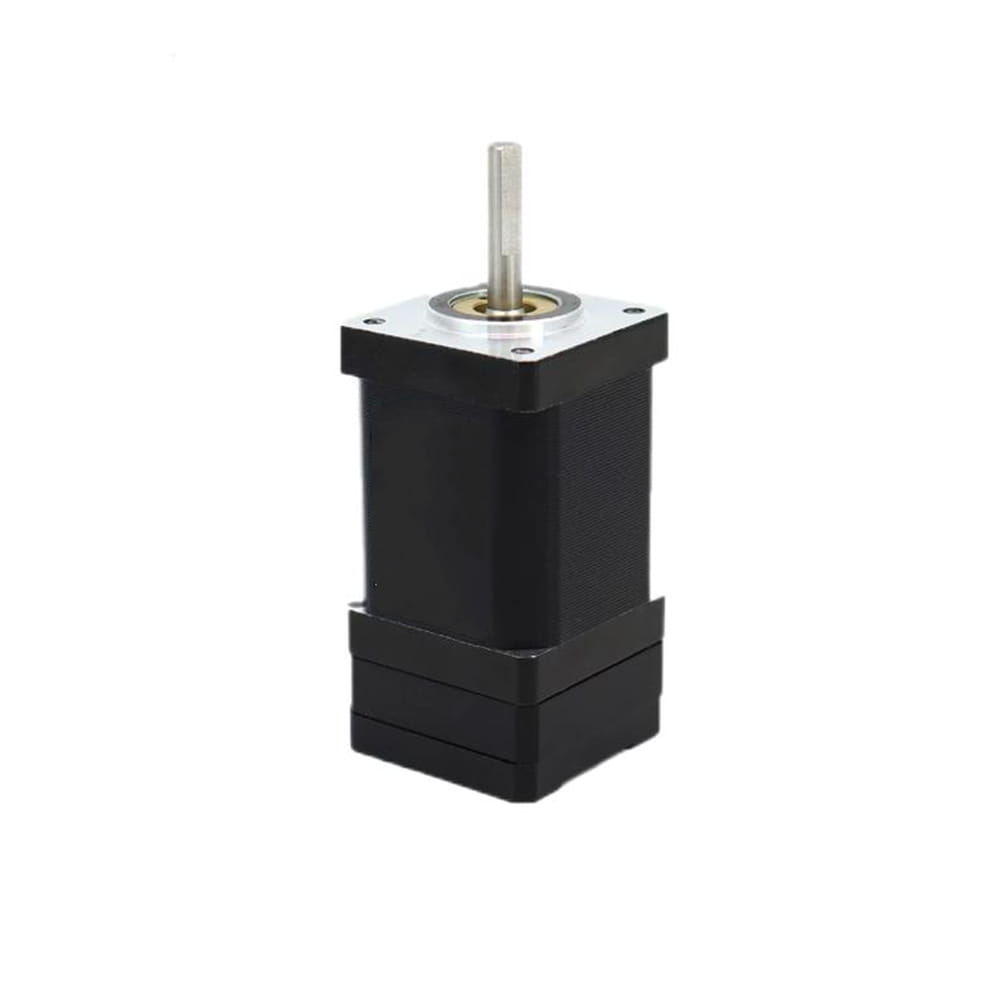

Closed Loop Stepping Drive Motor Size 35mm 1.8A 0.4Nm 1000PPR Encoder NEMA 14
- Part Number: 35HB52-1804YT
- Lead Time: Pre-Order
- Unit Price: US $85.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This closed loop stepping drive motor has a compact size 35mm (NEMA 14) combined with a 1000PPR incremental encocer & a digital stepper drive board. It can generate a high torque upto 0.4Nm & high speed 1000RPM and can be directly controlled by PLC, HMI, computer or pulse controller.
Motor Specification
- Manufacturer Part Number: 35HB52-1804YT
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.4Nm
- Rated Current/phase: 1.8A
- Driving Voltage: 12-24VDC
- Frame Size: 35x35mm
- Body Length: 52mm
- D-cut Length: 15mm
Encoder & Drive Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Drive Voltage: 8-36VDC
- Drive Current: 0.2-2.0A
- Drive Signal Voltage: 3.3-24V
Contact Us
| Product Details | |
| Model Number | 35HB52-1804YT |
| Product Type | Stepper Servo Drive Motor |
| Lead Time | One Week |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.4 |
| Rated Current(A) | 1.8 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 52 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Drive Specification | |
| Input Voltage(VDC) | 8-36 |
| Output Current(A) | 0.2-2.2 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |

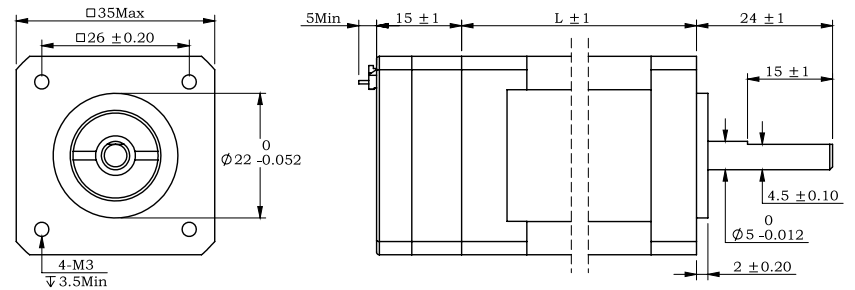

L=52mm
