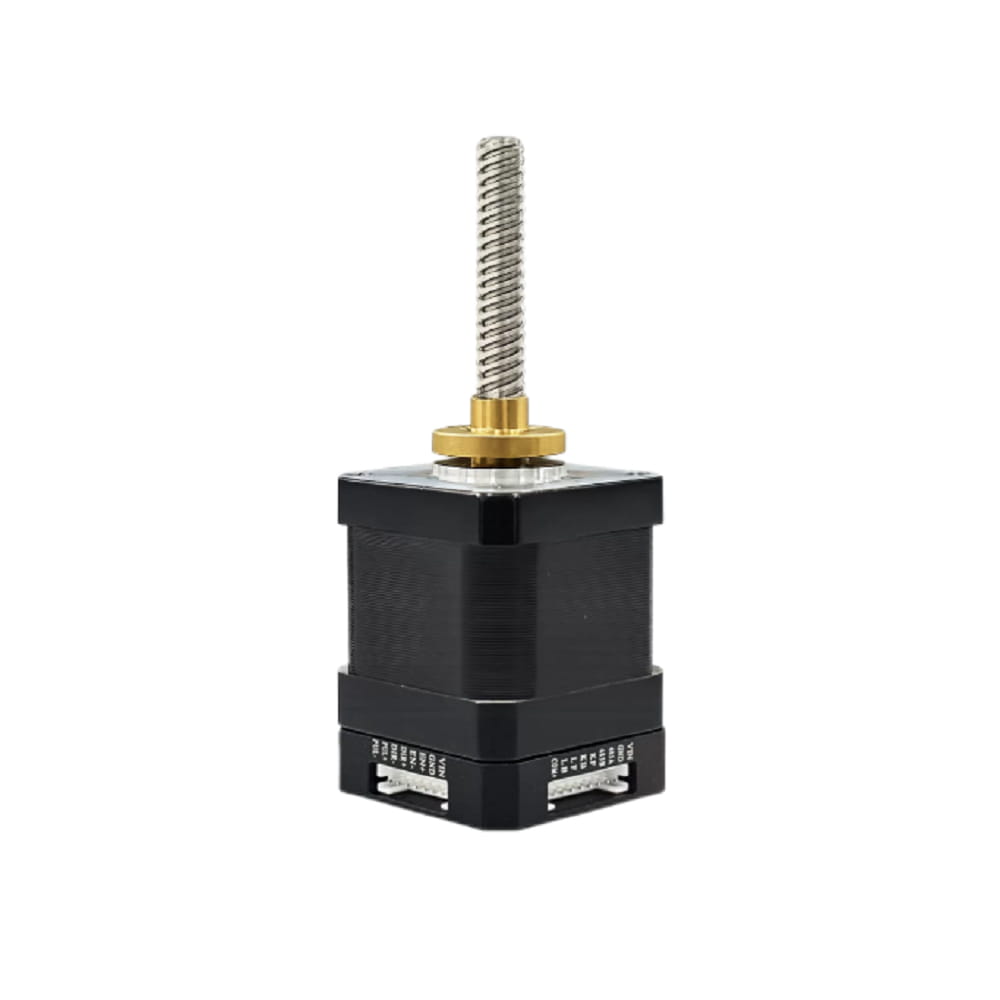

This 0.4 N-m closed-loop NEMA 17 external linear stepper motor comes with an integrated Modbus RS485 drive & high-precision 14-bit magnetic encoder, which can save the mounting space. The output type is a trapezoidal lead screw with diameter Φ8mm & a POM screw nut. The lead travel is 8mm per revolution or 0.04mm per step. It is widely used for small-scale automation equipment.
Key Features
- Integrated Design: Drive + Motor + Encoder
- Three Operation Modes: Speed, Position, Torque
- One Board, Dual Interfaces: Modbus RS485 + Pulse
- Overcurrent, Overvoltage, Undercurrent, and Undervoltage Protection
- Continuous Operation, Low Vibration, Low Heat, Low noise, Stable and Durable
- IO Control: External Switch/Sensor Compatible (simple signal triggers allow for motor start/stop, mode switching, and constant speed operation, PC setting, offline programming, power-off memory)
- Output Current: 0 - 3.0 A
- Input Voltage (VDC): 6 - 30 V
- Signal Voltage: Default 2 channels, accepts 3.3 - 30 V
- Output: Default 1 channel, max withstand voltage 30 V, max sink/source current 30 mA
Electrical Specification
- Manufacturer Part Number: Zeta42LS40-100L88
- Step Angle: 1.8 deg
- Holding Torque: 0.4 N-m
- Rated Current/Phase: 1.5 A
- Phase Resistance: 1.9 ohms
- Phase Inductance: 3.4 mH
- Rotor Inertia: 57 g·cm²
- Insulation Class: B
Physical Specification
- Frame Size: 42 x 42 mm
- Body Length: 50.5mm
- Lead Screw Length: 100 mm
- Lead Screw Diameter: Φ8 mm
- Lead /Step: 0.04 mm
- Lead/Revolution: 8 mm
- Weight: 0.4 kg
Connection
| Pulse |
VIN |
GND |
EN |
DIR |
PUL |
| Definition |
Power supply positive |
Power supply negative |
Enable/Disable |
Direction (Forward/Reverse, CW/CCW) |
Pulse |
| Modbus |
VIN |
GND |
485A |
485B |
LF |
LB |
| Definition |
Power supply positive |
Power supply negative |
RS485 D+ |
RS485 D- |
Forward limit |
Reverse limit |
| Product Details |
| Model Number | Zeta42LS40-100L88 |
| Product Type | Integrated Stepper Servo Motor |
| Lead Time | in stock |
| Electrical Specification |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.4 |
| Drive Integrated | Yes |
| Control Mode | Pulse + Modbus RS485 |
| Input Voltage(VDC) | 12-24 |
| Encoder Feedback | Yes |
| Encoder Type | Incremental |
| Physical Specification |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 50.5 |
| Weight(KG) | 0.4 |
| Lead Screw Specification |
| Lead Travel/Revolution(mm) | 8 |
| Lead Travel/Step(mm) | 0.04 |
| Lead Screw Length(mm) | 100 |
| Ball Screw Specification |
| Ball Screw Diameter(mm) | 8 |
