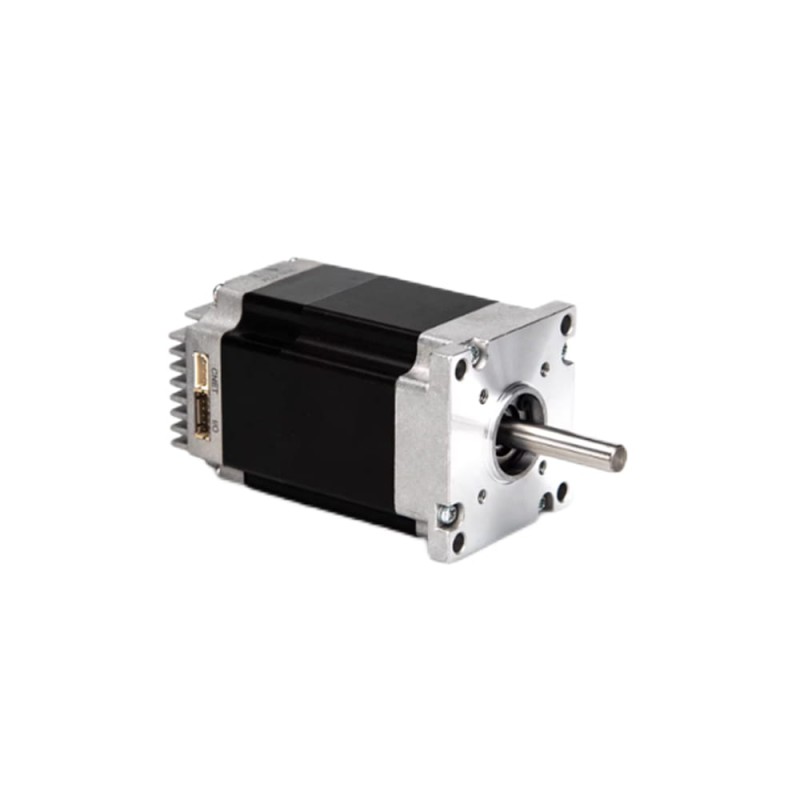

BLM57-E Integrated Brushless Servo DC Motor 57mm RS485 24V 3000RPM 150W 0.48Nm Drive & 17-bit Absolute Encoder
- Part Number: BLM5715B-E-485
- Lead Time: In Stock
- Unit Price: $229.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
The BLM57 series integrated brushless servo motor is a servo enginer independently developed by NIMOTION. Based on the concept of highly integrated development, this intelligent servo motor integrates a brushless dc motor, a magnetic encoder, a servo drive controller, and digital I/O into a single unit. It supports CANopen and RS485 bus control and features a compact design with simple wiring. We hope that our product, with its superior performance, excellent quality, and outstanding cost-effectiveness, will help you achieve the motion control you desire.
Specification
- Part Number: BLM5715B-E-485
- Rated Speed: 3000RPM
- Rated Torque: 0.48Nm
- Rated Voltage: 24V DC
- Rated Current: 7.2A
- Rated Power: 150W
- Encoder Type: 17-bit Magnetic(Single-turn Absolute)
- Encoder Features: Multi-turn absolute counting with automatic data storage on power failure
- Modbus Mode: RS485
- Frame Size: 57x57mm
- Overall Length: 136mm
- Shaft Diameter: Φ8mm
- Shaft Length: 33mm
- D-cut Length:27mm
- Weight: 1.5kg
Please feel free to contact us for more details about this dedicated integrated motor.
Contact Us
| Electrical Specification | |
| Drive Integrated | Yes |
| Encoder Feedback | Yes |
| Encoder Type | Absolute |
| Modbus Type | RS485 |
| Rated Power(W) | 150 |
| Rated Torque(Nm) | 0.48 |
| Rated Speed(RPM) | 3000 |
| Rated Voltage(VDC) | 24 |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 33 |
| Overall Length(mm) | 136 |
| Weight(KG) | 1.5 |
X=136mm
