Ball Screw Stepping Motor Step 0.005mm Screw Length 100mm 20-38mm NEMA 8
- Part Number: 20HB38-0604G-100L0601
- Lead Time: Pre-Order
- Unit Price: US $99.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

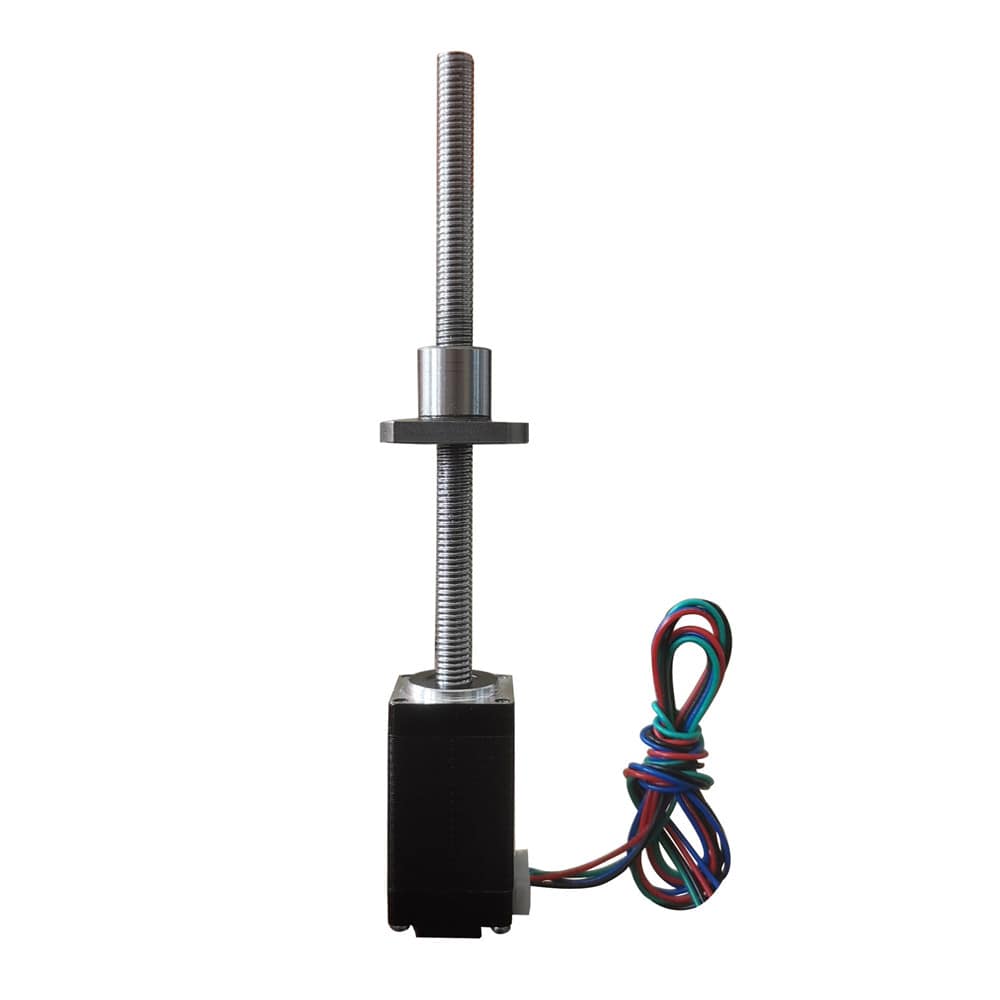

This small ball screw stepping motor is an External type with size 20-38mm (NEMA 8). It is integrated with a ball screw of Φ6mm diameter 100mm length and a ball screw metal nut. The ball screw's linear travel is 0.005mm per step or 1mm per revolution. The digital stepping drive M322C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 20HB38-0604G-100L0601
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.04Nm
- Rated Current/phase: 0.6A
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 20x20mm
- Body Length: 38mm
- Ball Screw Length: 100mm
- Ball Screw Diameter: Φ6mm
- Ball Screw /Step: 0.005mm
- Ball Screw/Revolution: 1mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.1kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us

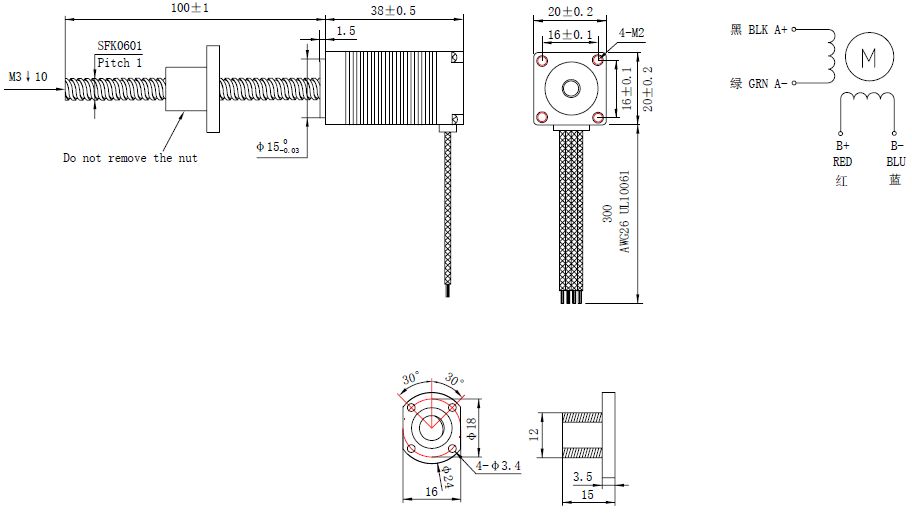

| Product Details | |
| Model Number | 20HB38-0604G-100L0601 |
| Product Type | Ball Screw Linear Stepper |
| Lead Time | One Week |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.04 |
| Rated Current(A) | 0.6 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 20x20 |
| Stack Length(mm) | 38 |
| Ball Screw Specification | |
| Ball Screw Size(mm) | 0601 |
| Ball Screw Diameter(mm) | 6 |
| Ball Screw Travel/Revolution(mm) | 1 |
| Ball Screw Travel/Step(mm) | 0.005 |
| Ball Screw Length(mm) | 100 |
