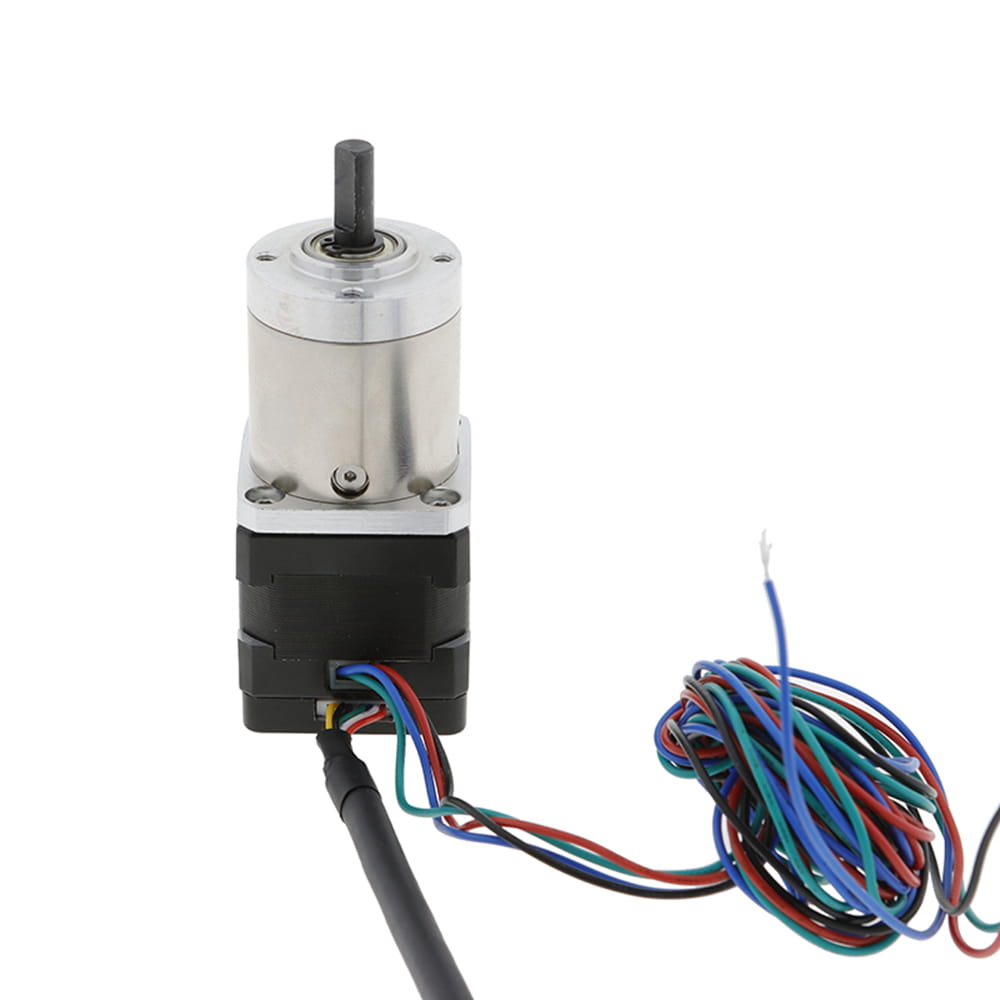

AR Robot Arm Stepper Motor NEMA 14 Closed Loop with 1000PPR Encoder & Gear Ratio 20:1 Precision Planetary Gearbox
- Part Number: 35HB28-1004E-KGS20
- Lead Time: In Stock
- Unit Price: US $80.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This AR robot arm motor is a Frame size 35mm NEMA 14 stepper motor integrated with a 1000PPR incremental magnetic encocer & a gear ratio of 20:1 high-precision planetary gearbox. It is absolutely an ideal solution the applications require closed-loop control and low speed/high torque output.

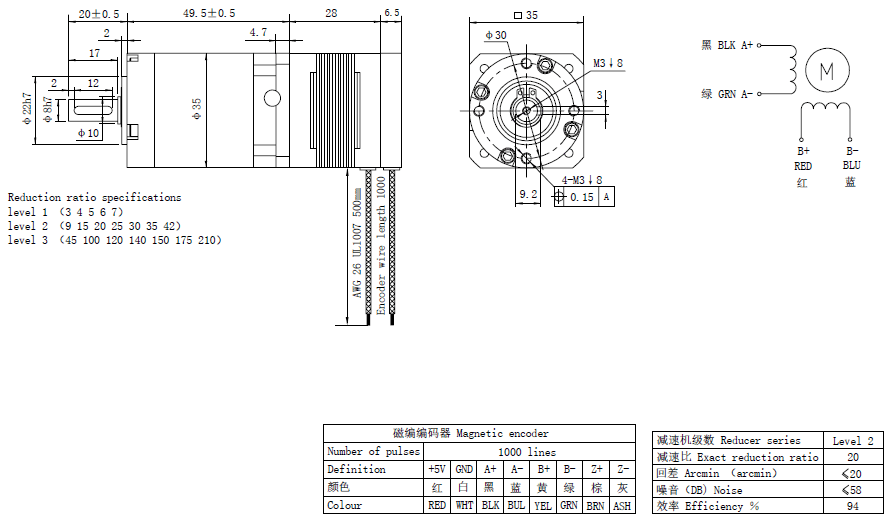

Motor Specification
- Manufacturer Part Number: 35HB28-1004E-KGS20
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.125Nm
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24V
- Frame Size: 35x35mm
- Body Length: 28mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 20:1
- Efficiency: 94%
- Backlash at No-load: <=20arcmin
- Gearbox Length: 49.5mm
- Shaft Diameter: Φ8mm
- Shaft Length: 20mm
- Keyway Length: 12mm
Encoder Specification
- Encoder Type: Incremental Magnet
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 1000mm
- Supply Voltage: 5.0V
Contact Us
| Product Details | |
| Model Number | 35HB28-1004E-KGS20 |
| Product Type | Closed Loop Stepper Motor with Gearbox |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.125 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 28 |
| Gearbox Specification | |
| Gearbox Type | Precision Planetary |
| Gear Ratio | 20:1 |
| Gearbox Efficiency | 94% |
| Backlash at No-load | 20arcmin |
| Gearbox Length(mm) | 49.5 |
| Output Shaft Diameter(mm) | 8 |
| Output Shaft Length(mm) | 20 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
