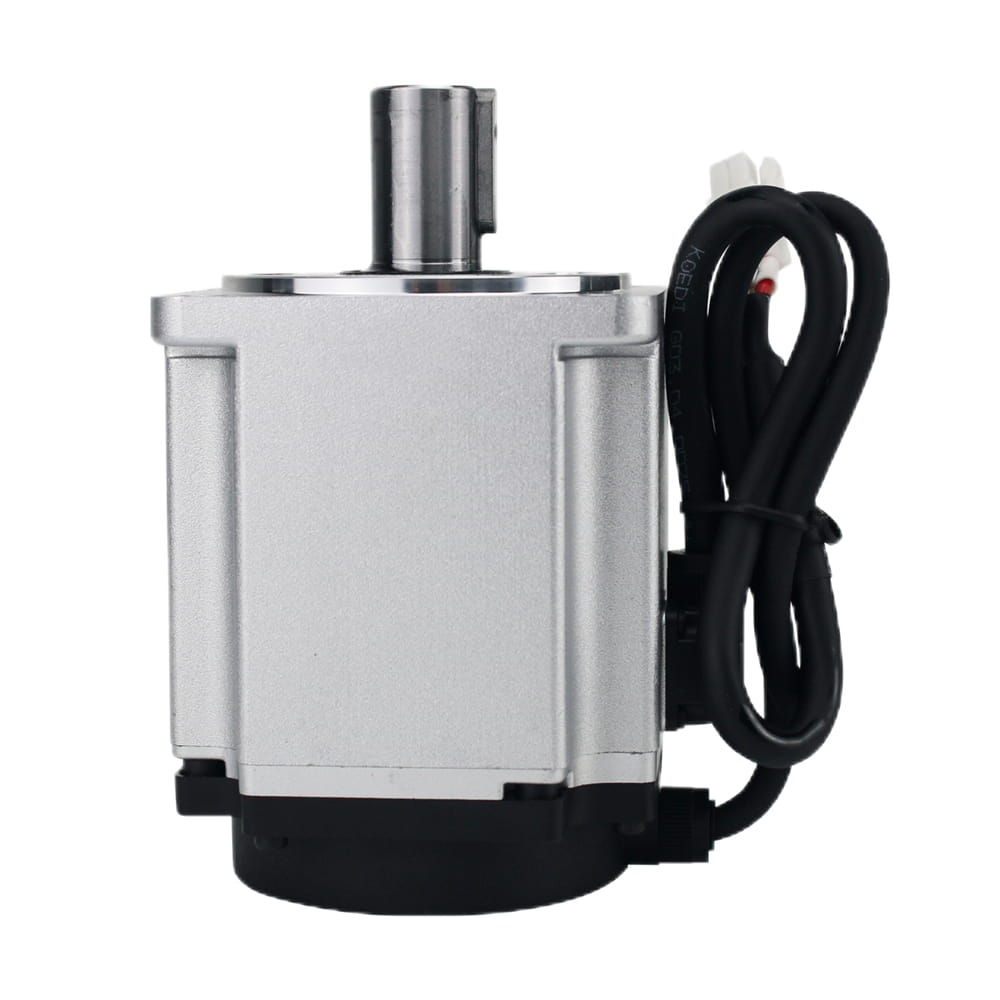

80mm 750W AC Servo Motor 220V 2.4 N-m 3000RPM 23-Bit Absolute Encoder IP65 Electromagnetic Brake
- Part Number: 80M02430BYS
- Lead Time: In Stock
- Unit Price: US $235.00
- *Ship from China
This 80 mm AC servo motor with electromagnetic brake (80M02430BYS) delivers 750 W of rated power and 2.4 N·m of rated torque (peak torque 7.2 N·m) at 3000 RPM, powered by 220 VAC with a rated current of 4.5 A. It features a built-in 23-bit absolute multi-turn encoder for ultra-precise positioning, F-class insulation, and IP65 protection, plus an integrated 24 VDC electromagnetic brake rated at 4.5 N·m holding torque for fail-safe position locking on power loss. The brake-equipped version measures 133 mm in body length within an 80 × 80 mm frame, with a Φ19 mm shaft (35 mm length) and a weight of 2.5 kg. Its high-resolution feedback, sealed construction, and power-off braking make it well suited to vertical-axis CNC machines, robotic joints requiring position retention during emergency stops, packaging and material handling systems, semiconductor handling equipment, medical and laboratory automation, and large-format precision rotary actuators where load holding on power interruption is critical.
80mm 750W AC Servo Motor 220V 2.4 N-m 3000RPM 23-Bit Absolute Encoder IP65 Electromagnetic Brake
- Manufacturer Part Number: 80M02430BYS
- Rated Power: 750 W
- Rated Voltage: 220 VAC
- Rated Current: 4.5 A
- Rated Speed: 3000 RPM
- Rated Torque: 2.4 N-m
- Peak Torque: 7.2 N-m
- Peak Current: 13.5 A
- Back EMF Constant: 32.8 V/krpm
- Torque Constant: 0.53 N-m/A
- Electrical Constant: 3.5 Ms
- Line-line Resistance: 1.2 ohms
- Line-line Inductance: 4.2 mH
- Rotor Inertia: 1.5x10-4 kg·m2
- Encoder: 23-Bit Absolute Multi-turn
- Insulation Class: F
- Protection Level: IP65
- Poles Number: 10
- Brake Torque: 4.5 N-m
- Brake Voltage: 24 VDC
- Frame Size: 80x80 mm
- Body Length: 133 mm
- Shaft Diameter: Φ19 mm
- Shaft Length: 35 mm
- Weight: 2.5 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 80M02430BYS |
| Product Type | AC Servo Motor |
| Lead Time | in stock |
| Insulation Class | F |
| Protection Class | IP65 |
| Servo Electrical Specification | |
| Rated Voltage(VAC) | 220 |
| Rated Current(A) | 4.5 |
| Rated Power(W) | 1000 |
| Rated Speed(RPM) | 3000 |
| Rated Torque(N·m) | 2.4 |
| Encoder Type | Absolute |
| Encoder Resolution(PPR) | 23-Bit |
| With Brake | Yes |
| Servo Physical Specification | |
| Frame Size(mm) | 80x80 |
| Body Length(mm) | 133 |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 35 |
| Weight(KG) | 2.5 |
LA=133mm
