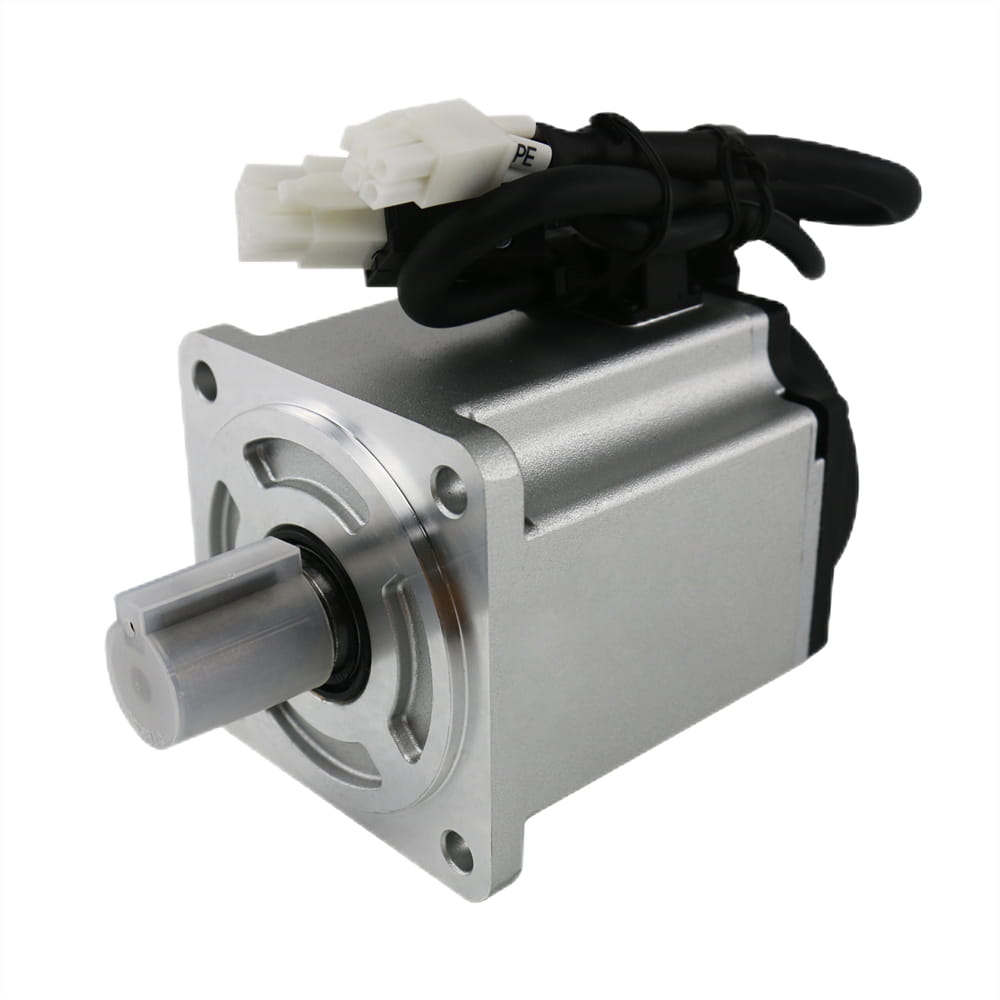

80mm 1000W AC Servo Motor 220V 4.0 N-m 2500RPM 23-Bit Absolute Encoder IP65
- Part Number: 80M04025B
- Lead Time: In Stock
- Unit Price: US $205.00
- *Ship from China
This 80 mm AC servo motor delivers 1000 W of rated power and 4.0 N-m of rated torque at 2500 RPM, powered by 220 VAC. It features a built-in 23-bit absolute multi-turn encoder for ultra-precise positioning and smooth motion control, along with IP65 protection for reliable operation in demanding environments. Housed in an 80 × 80 mm frame, this motor is typically configured with a Φ19 mm shaft and weighs approximately 3–4 kg depending on the exact model variant. Its high-resolution feedback, high torque density, and sealed construction make it well suited to heavy-duty robotic joints, CNC machining centers, automated guided vehicles (AGV/AMR), semiconductor handling equipment, medical and laboratory automation, and large-format precision rotary actuators requiring accurate positioning and durability in industrial conditions.
80mm 1000W AC Servo Motor 220V 4.0 N-m 2500RPM 23-Bit Absolute Encoder IP65
- Manufacturer Part Number: 80M04025B
- Rated Power: 1000 W
- Rated Voltage: 220 VAC
- Rated Current: 4.6 A
- Rated Speed: 2500 RPM
- Rated Torque: 4.0 N-m
- Peak Torque: 11.5 N-m
- Peak Current: 13.8 A
- Back EMF Constant: 50.8 V/krpm
- Torque Constant: 0.83 N-m/A
- Electrical Constant: 4.2 Ms
- Line-line Resistance: 2.3 ohms
- Line-line Inductance: 9.6 mH
- Rotor Inertia: 2.2x10-4 kg·m2
- Encoder: 23-Bit Absolute Multi-turn
- Insulation Class: F
- Protection Level: IP65
- Poles Number: 10
- Frame Size: 80x80 mm
- Body Length: 116 mm
- Shaft Diameter: Φ19 mm
- Shaft Length: 35 mm
- Weight: 2.8 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 80M04025B |
| Product Type | AC Servo Motor |
| Lead Time | in stock |
| Insulation Class | F |
| Protection Class | IP65 |
| Servo Electrical Specification | |
| Rated Voltage(VAC) | 220 |
| Rated Current(A) | 4.6 |
| Rated Power(W) | 1000 |
| Rated Speed(RPM) | 2500 |
| Rated Torque(N·m) | 4.0 |
| Encoder Type | Absolute |
| Encoder Resolution(PPR) | 23-Bit |
| With Brake | No |
| Servo Physical Specification | |
| Frame Size(mm) | 80x80 |
| Body Length(mm) | 116 |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 35 |
| Weight(KG) | 2.8 |

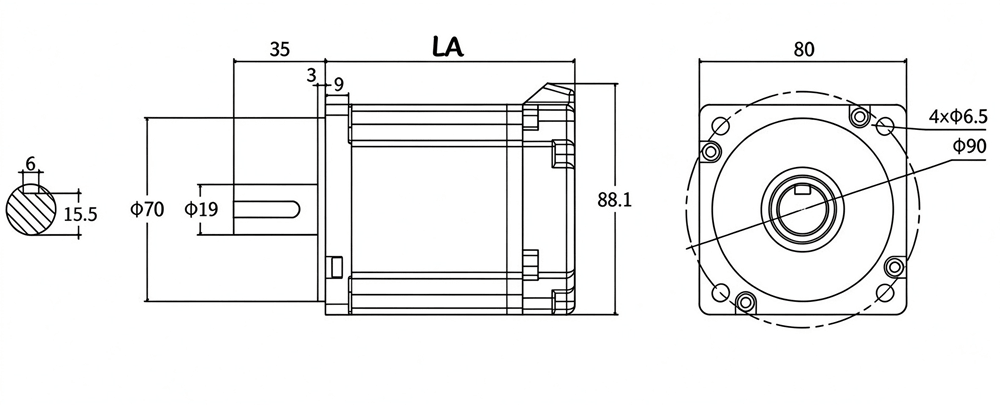

LA=116mm
