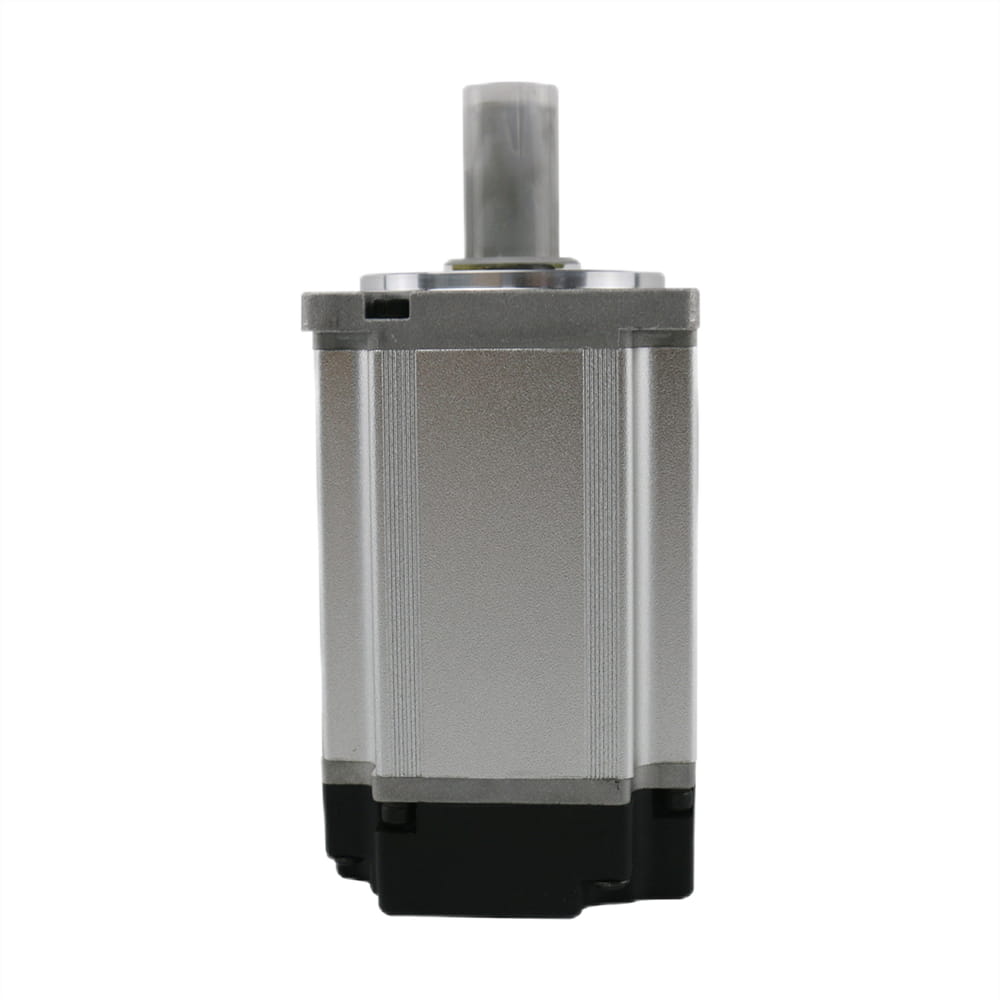

60mm 200W AC Servo Motor 220V 0.63 N-m 3000RPM 23-Bit Absolute Encoder IP65 Electromagnetic Brake
- Part Number: 60M006330BYS
- Lead Time: In Stock
- Unit Price: US $185.00
- *Ship from China
This 60 mm AC servo motor with electromagnetic brake (60M006330BYS) delivers 200 W of rated power and 0.63 N·m of rated torque at 3000 RPM, powered by 220 VAC with a rated current of approximately 1.6 A. It features a built-in 23-bit absolute encoder for precise positioning, F-class insulation, and IP65 protection, plus an integrated 24 VDC electromagnetic brake rated at 1.5 N·m holding torque for fail-safe position locking on power loss. The brake-equipped version is more compact than the comparable 400 W model, with a body length of roughly 90–100 mm within a 60 × 60 mm frame and a weight of approximately 1.3 kg. Its high-resolution feedback, sealed construction, and power-off braking make it well suited to small CNC machines, PCB processing equipment, automated assembly and conveying lines, packaging and labeling machinery, medical and laboratory instruments, and miniature robotic joints that require load holding on vertical axes or during emergency stops.
60mm 200W AC Servo Motor 220V 0.63 N-m 3000RPM 23-Bit Absolute Encoder IP65 Electromagnetic Brake
- Manufacturer Part Number: 60M006330BYS
- Rated Power: 200 W
- Rated Voltage: 220 VAC
- Rated Current: 1.6 A
- Rated Speed: 3000 RPM
- Rated Torque: 0.63 N-m
- Peak Torque: 1.92 N-m
- Peak Current: 4.7 A
- Back EMF Constant: 29.3 V/krpm
- Torque Constant: 0.4 N-m/A
- Electrical Constant: 1.52 Ms
- Line-line Resistance: 8.9 ohms
- Line-line Inductance: 13.5 mH
- Rotor Inertia: 0.3x10-4 kg·m2
- Encoder: 23-Bit Absolute Multi-turn
- Insulation Class: F
- Protection Level: IP65
- Poles Number: 10
- Brake Torque: 2.0 N-m
- Brake Voltage: 24 VDC
- Frame Size: 60x60 mm
- Body Length: 102 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 30 mm
- Weight: 1.2 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 60M006330BYS |
| Product Type | AC Servo Motor |
| Lead Time | in stock |
| Insulation Class | F |
| Protection Class | IP65 |
| Servo Electrical Specification | |
| Rated Voltage(VAC) | 220 |
| Rated Current(A) | 1.6 |
| Rated Power(W) | 200 |
| Rated Speed(RPM) | 3000 |
| Rated Torque(N·m) | 0.63 |
| Encoder Type | Absolute |
| Encoder Resolution(PPR) | 23-Bit |
| With Brake | Yes |
| Servo Physical Specification | |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 102 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 30 |
| Weight(KG) | 1.2 |
LA=102mm
