60000 Series NEMA 24 Linear Actuator Stepper Motor Non-captive Single Stack Lead 5.08mm Length 150mm

Part Number: 60PN47-3004S-150F7
Lead Time: Four Weeks
Unit Price: US $150.00

*Ship from China

- +

This product has a minimum quantity of 2

Tags: 60000 series nema 24 linear actuator stepper motor non-captive single stack 5.08mm lead resolution 0.0254mm

This linear motion motor is 60000 series size 24 stepper motor with Non-captive linear actuator type. The motor part has single stack length 47mm, step angle 1.8 degree and bipolar 4 wires connection. It works with a diameter Φ9.525mm, lead screw length of 150mm and the linear travel 0.0254mm per step. Compared to NEMA 23 linear stepper motor, NEMA 24 has a stronger thrust output with same speed. The matched drive is M556C.

Electrical Specification

Manufacturer Part Number: 60PN47-3004S-150F7
Motor Type: Non-captive
Step Angle: 1.8 deg
Bipolar/Unipolar: Bipolar
Rated Current/phase: 3.0 A
Phase Resistance: 0.6 ohms
Inductance: 1.6 mH
Max. Thrust Force: 600 N
Max. Speed: 127 mm/s
Driving Voltage: 24-48 VDC

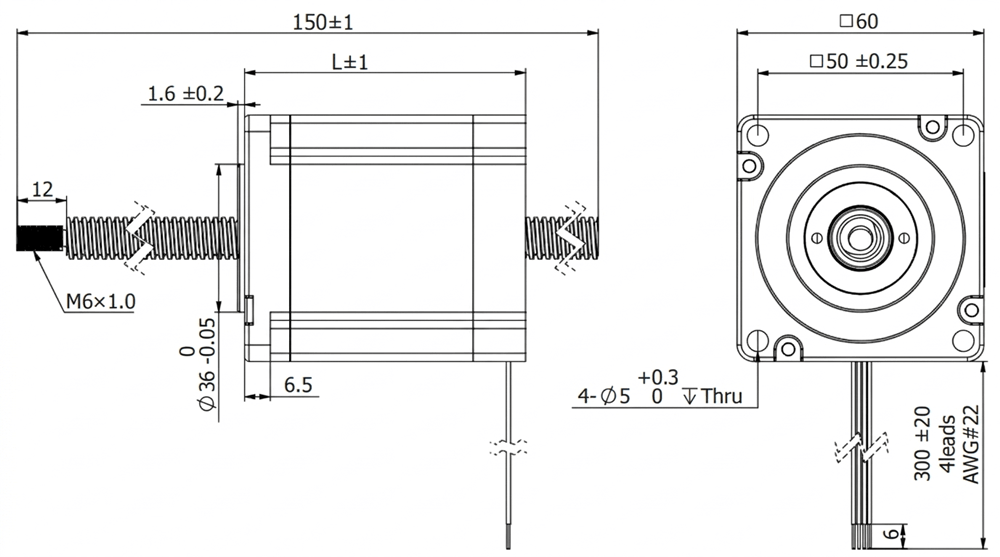

Physical Specification

Frame Size: 60x60 mm
Body Length: 47 mm
Lead Screw Length: 150 mm
Lead Screw Diameter: Φ9.525 mm
Lead Travel/Revolution: 5.08 mm
Lead Travel/Step: 0.0254 mm
Number of Leads: 4
Lead Length: 300 mm
Weight: 680 g

Connection

Black: A+, Green: A-, Red: B+, Blue: B-

Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve

Your Name

E-Mail Address

Enquiry

Product Details
Model Number	60PN47-3004S-150F7
Product Type	Non-captive Linear Stepper
Lead Time	Four Weeks
Insulation Class	B
Protection Class	IP20
Stepper Motor Specification
Step Angle(deg.)	1.8
Bipolar/Unipolar	Bipolar
Holding Torque(N·m)	1.2
Rated Current(A)	3.0
Frame Size(mm)	60x60
Stack Length(mm)	47
Lead Screw Specification
Lead Screw Diameter(mm)	9.525
Lead Travel/Revolution(mm)	5.08
Lead Travel/Step(mm)	0.0254
Lead Screw Length(mm)	150
