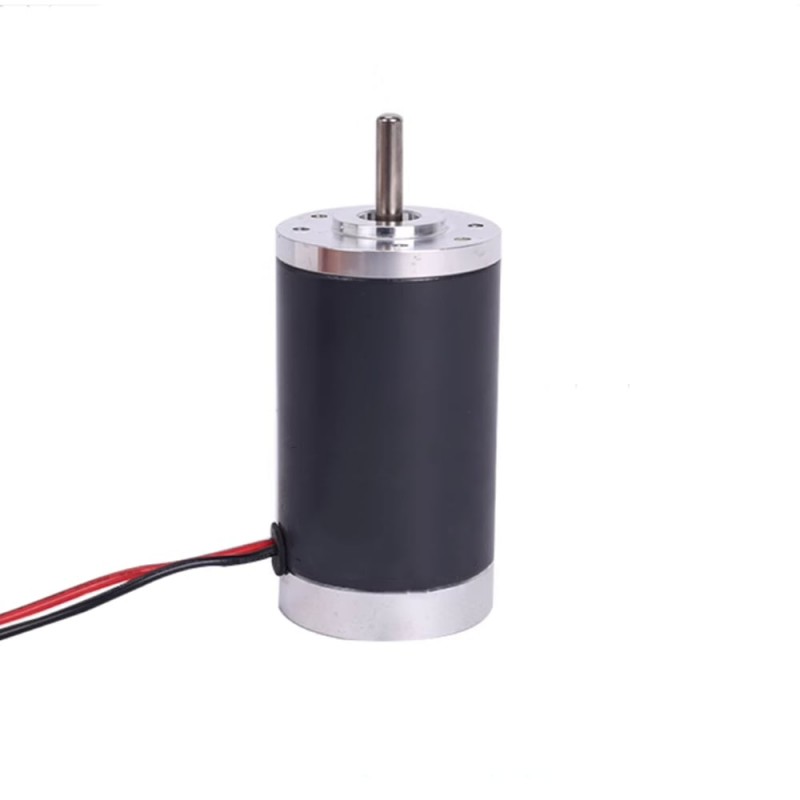

This size 50mm electric motor is a standard 12 voltage brushed permanent magnetic DC motor. It generates a power 15W and a rated torque 0.08Nm at 2250RPM.
Specifications
- Part Number: 50HS89-1230
- Rated Voltage: 12V
- Rated Curent: 1.2A
- Rated Power: 15W
- No-loaded Speed: 3000RPM
- Rated Speed: 2250RPM
- Rated Torque: 0.09Nm
- Insulation Class: B
- Frame Size: Φ50mm
- Motor Length: 89mm
- Shaft Diameter: Φ6mm
- Shaft Length: 25mm
- Number of Leads: 2
- Lead Length: 190mm
- Weight: 0.65kg
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 12 |
| Rated Current(A) | 1.2 |
| Rated Power(W) | 15 |
| Rated Torque(Nm) | 0.08 |
| Rated Speed(RPM) | 2250 |
| No-load Speed(RPM) | 3000 |
| Insulation Class | B |
| Frame Size(mm) | Φ50 |
| Body Length(mm) | 89 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.65 |
