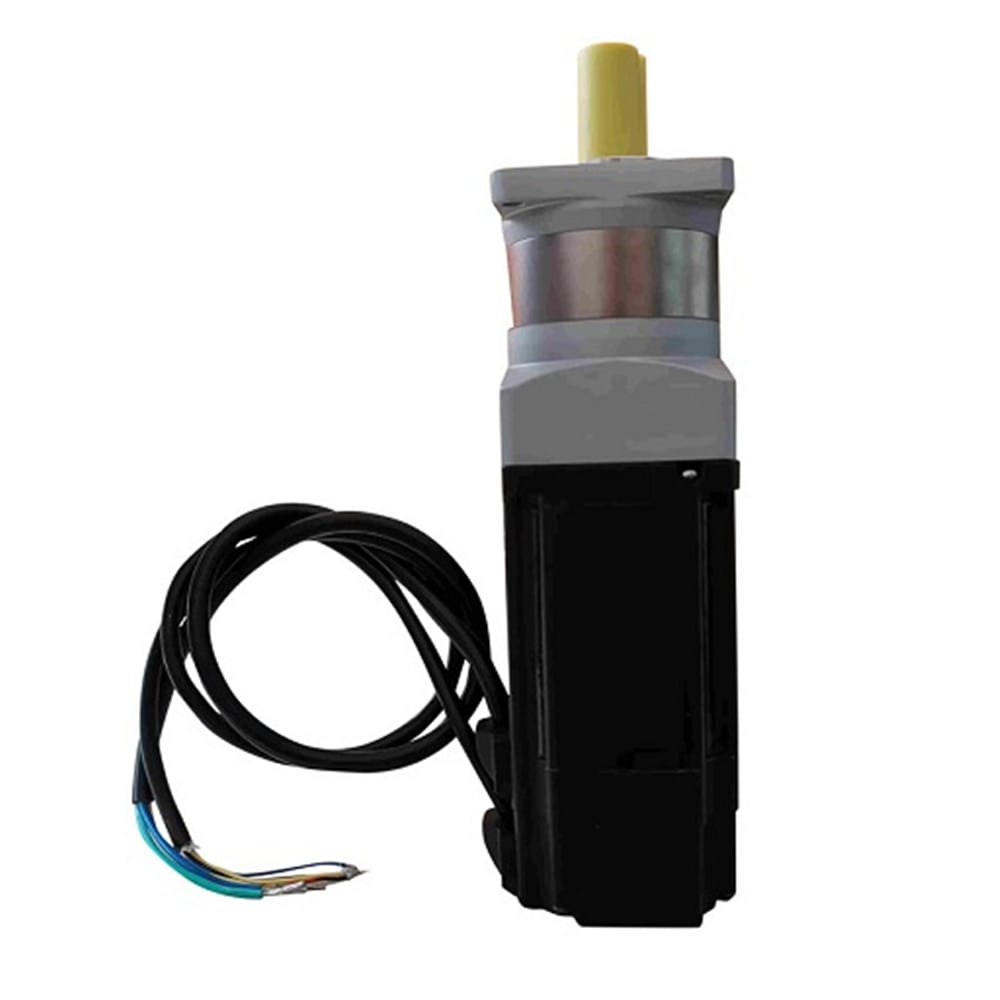

48V 350RPM 6.0Nm 300W 60mm Geared Brushless DC Motor Reduction Ratio 10:1 Planetary Gearbox
- Part Number: 60HB120-4830-PLF10
- Lead Time: In Stock
- Unit Price: US $115.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This large 60HB120-4830-PLF series dc geared motor is a 48V size 60mm brushless engine intagrated with a size 60mm high precision planetary gearbox. It leads to speed range of 30RPM to 1000RPM and holding torque upto 30Nm. Because of the brushless design, this large geared motor has higher efficiency, higher power-to-weight ratio, faster response time, longer lifespan, more merits compared to general dc motors. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 60HB120-4830-PLF10
- Rated Voltage: 48VDC
- Rated Power: 300W
- Reduction Ratio: 10:1
- Rated Torque: 6.0Nm
- No-load Speed: 350RPM
- Rated Speed: 300RPM
- Rated Current: 6.0A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 193.5mm
- Shaft Diameter: Φ14mm
- Shaft Length: 35mm
- Keyway Length: 25mm
- Weight: 2.1KG
Contact Us
| Product Details | |
| Model Number | 60HB120-4830-PLF10 |
| Product Type | Brushless |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 6.0 |
| Rated Power(W) | 300 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(RPM) | 300 |
| No-load Speed(RPM) | 350 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 193.5 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 35 |
| Weight(KG) | 2.5 |

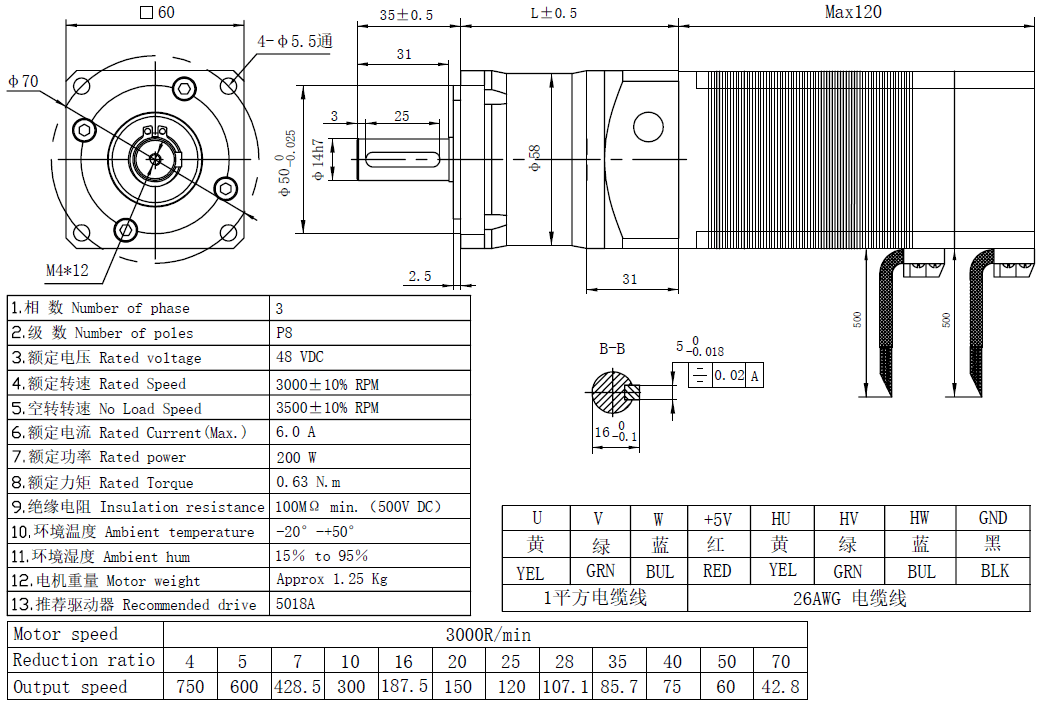

L=73.5mm
