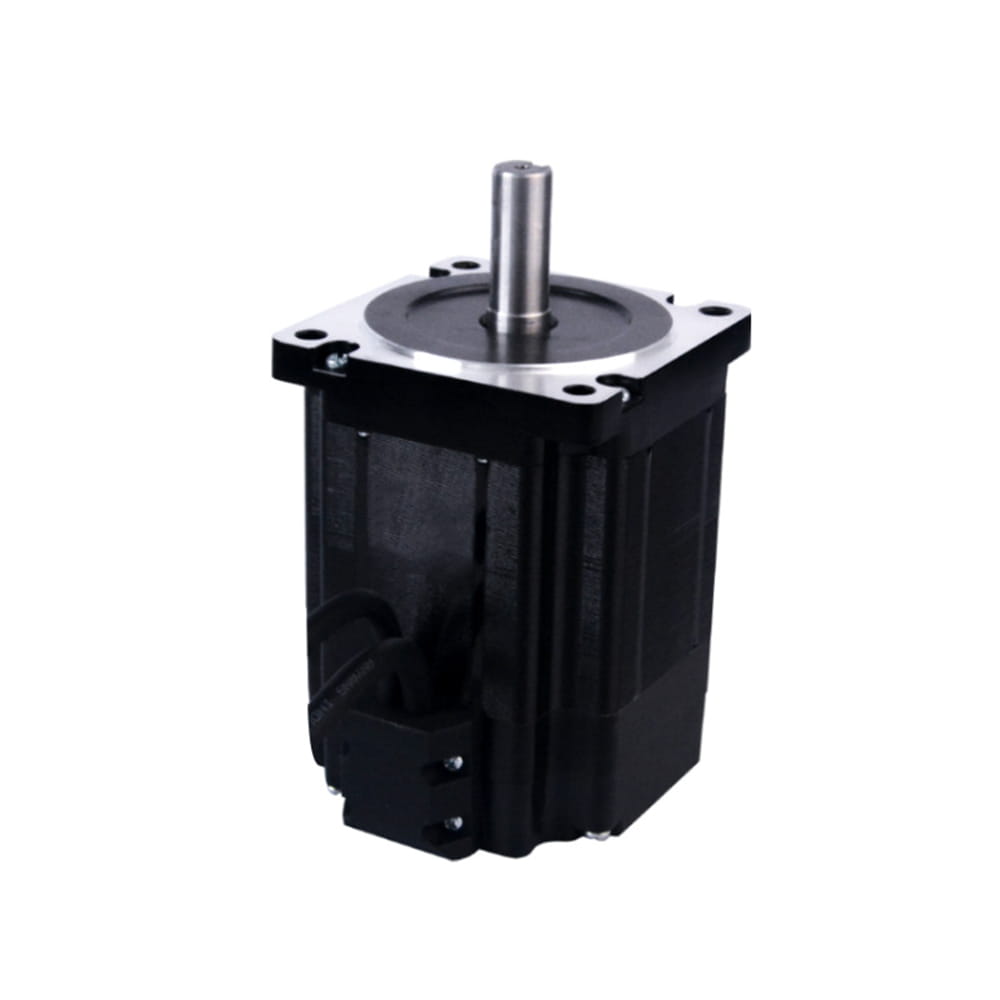

This size 86mm electric motor is a standard 48 voltage brushless DC motor, which generates a high power 400W and a strong torque 1.3Nm at RATED speed 3000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.
Specifications
- Part Number: 86BLH90-430
- Rated Voltage: 48V
- Rated Curent: 11A
- Rated Power: 400W
- Rated Speed: 3000RPM
- Rated Torque: 1.3Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 86x86mm
- Motor Length: 90mm
- Shaft Diameter: Φ14mm
- Shaft Length: 35mm
- Keyway Length: 25mm
- Weight: 1.9KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushless |
| Rated Voltage(VDC) | 48 |
| Rated Current(A) | 11 |
| Rated Power(W) | 400 |
| Rated Torque(Nm) | 1.3 |
| Rated Speed(RPM) | 3000 |
| Insulation Class | B |
| Sensor Type | Hall |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 90 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 35 |
| Weight(KG) | 1.9 |

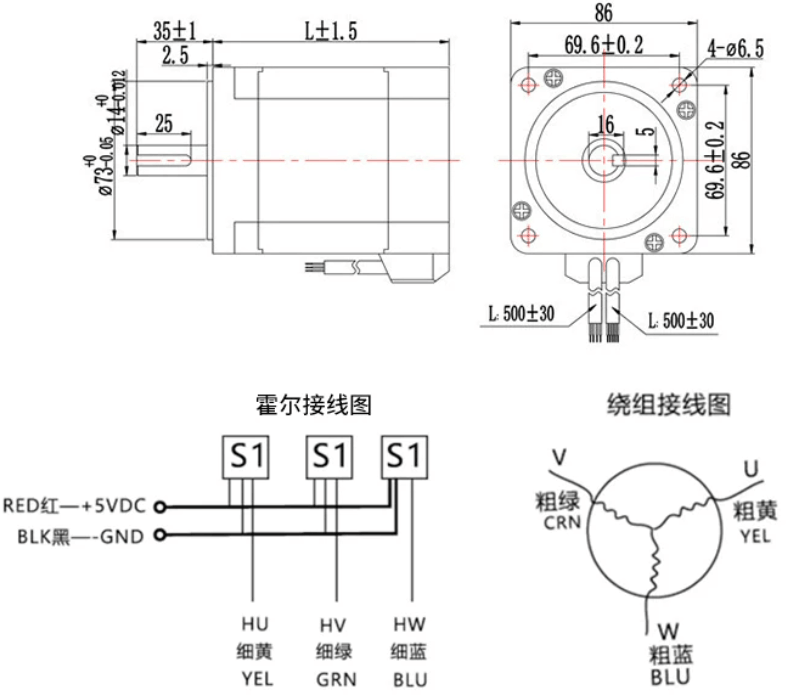

L=90mm
