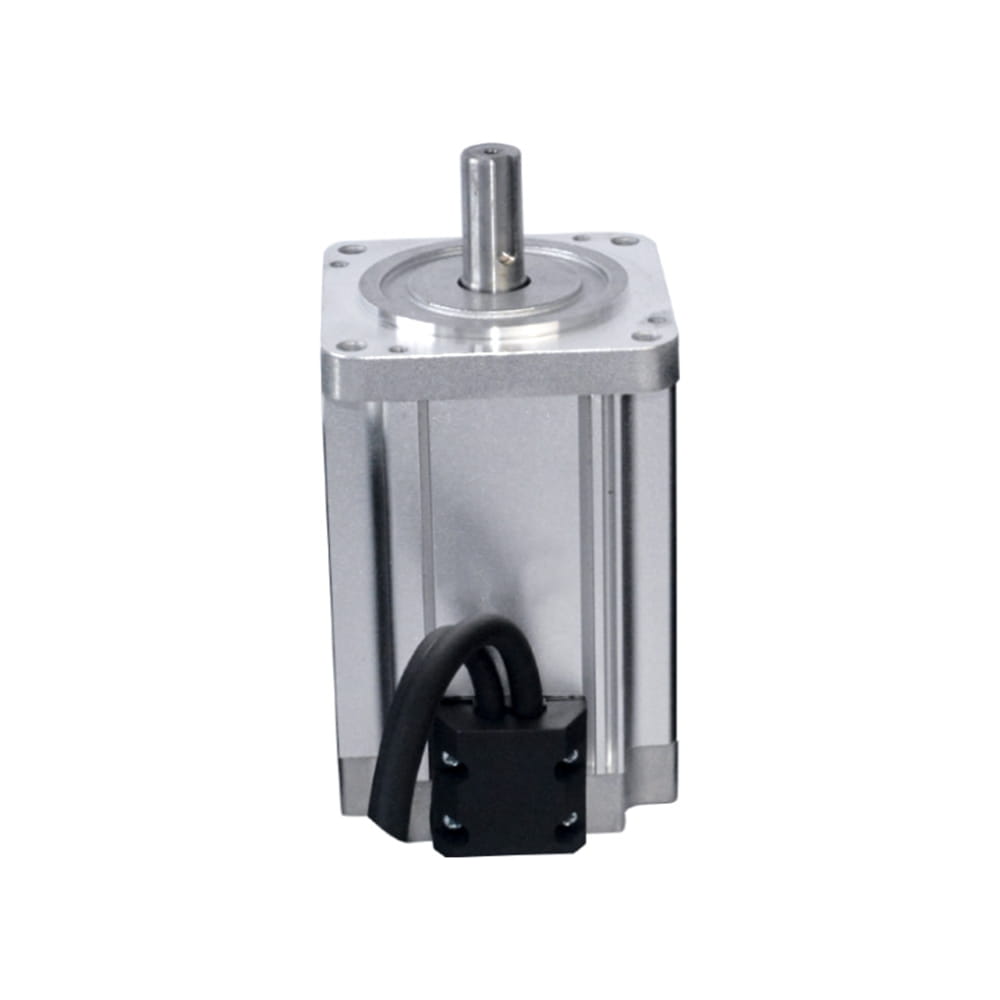

48V 3000RPM 1.3Nm 400W 11.1A 80x80x95mm Brushless DC Motor
- Part Number: 80BLH95-430
- Lead Time: In Stock
- Unit Price: US $65.00
- Sales: 8
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 80mm electric motor is a standard 48 voltage brushless DC motor, which generates a high power 400W and a strong torque 1.3Nm under RATED speed 3000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.
Specifications
- Manufacturer Part Number: 80BLH95-430
- Rated Voltage: 48V
- Rated Curent: 11.1A
- Rated Power: 400W
- Rated Speed: 3000RPM
- Rated Torque: 1.3Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 80x80mm
- Motor Length: 95mm
- Shaft Diameter: Φ14mm
- Shaft Length: 35mm
- Keyway Length: 25mm
- Weight: 2.2KG
Contact Us
| Product Details | |
| Model Number | 80BLH95-430 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 1.3 |
| Rated Power(W) | 400 |
| Rated Current(A) | 11.1 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(RPM) | 3000 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 80x80 |
| Body Length(mm) | 10595 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 35 |
| Weight(KG) | 2.2 |

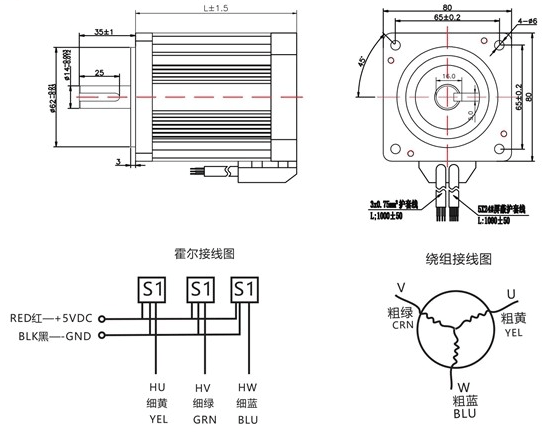

L=95mm
