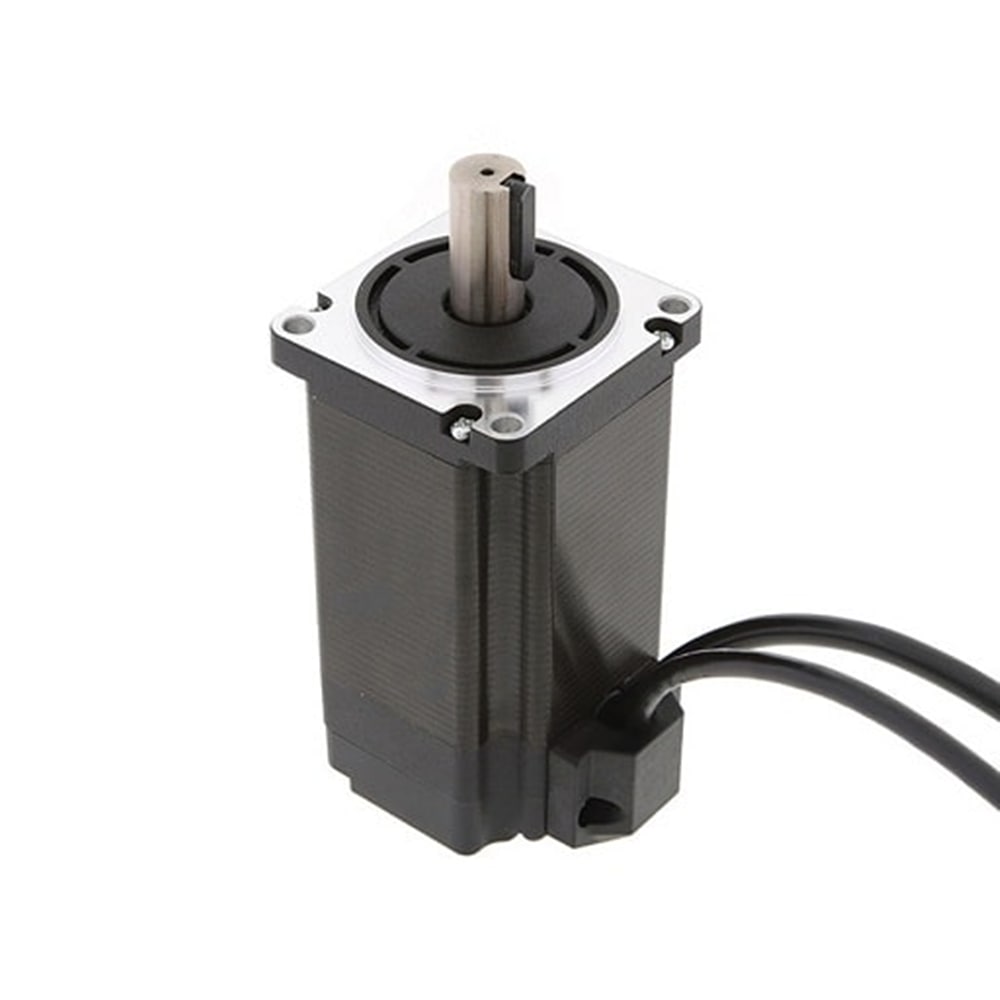

48V 3000RPM 0.95Nm 300W 8.0A 60x60x108mm Brushless DC Motor
- Part Number: 60HS108-4830
- Lead Time: In Stock
- Unit Price: US $70.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 60mm electric motor is a standard 48 voltage brushless DC motor, which generates a high power 300W and a strong torque 0.95Nm at RATED speed 3000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.

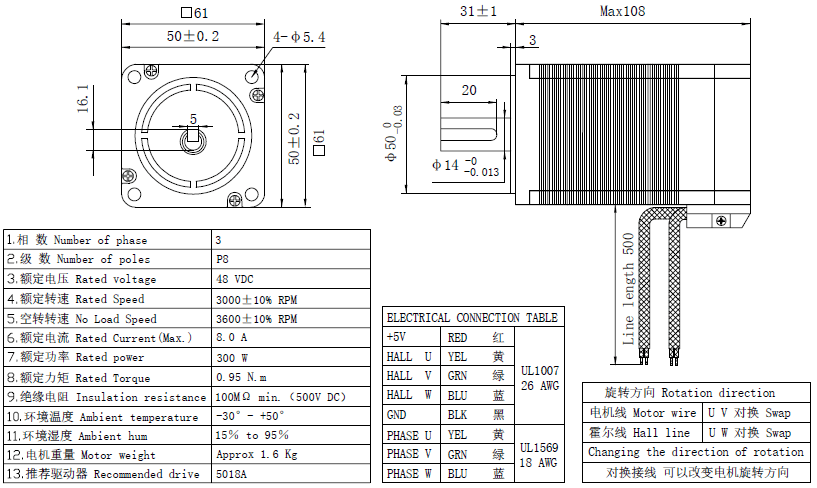

Specifications
- Manufacturer Part Number: 60HS108-4830
- Rated Voltage: 48V
- Rated Curent: 8.0A
- Rated Power: 300W
- No-loaded Speed: 3600RPM
- Rated Speed: 3000RPM
- Rated Torque: 0.95Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 60x60mm
- Motor Length: 108mm
- Shaft Diameter: Φ14mm
- Shaft Length: 31mm
- Keyway Length: 20mm
- Weight: 1.7KG
Contact Us
| Product Details | |
| Model Number | 60HS108-4830 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 0.95 |
| Rated Power(W) | 300 |
| Rated Current(A) | 8.0 |
| Rated Voltage(VDC) | 48 |
| Rated Speed(RPM) | 3000 |
| No-load Speed(RPM) | 3600 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 108 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 31 |
| Weight(KG) | 1.7 |
