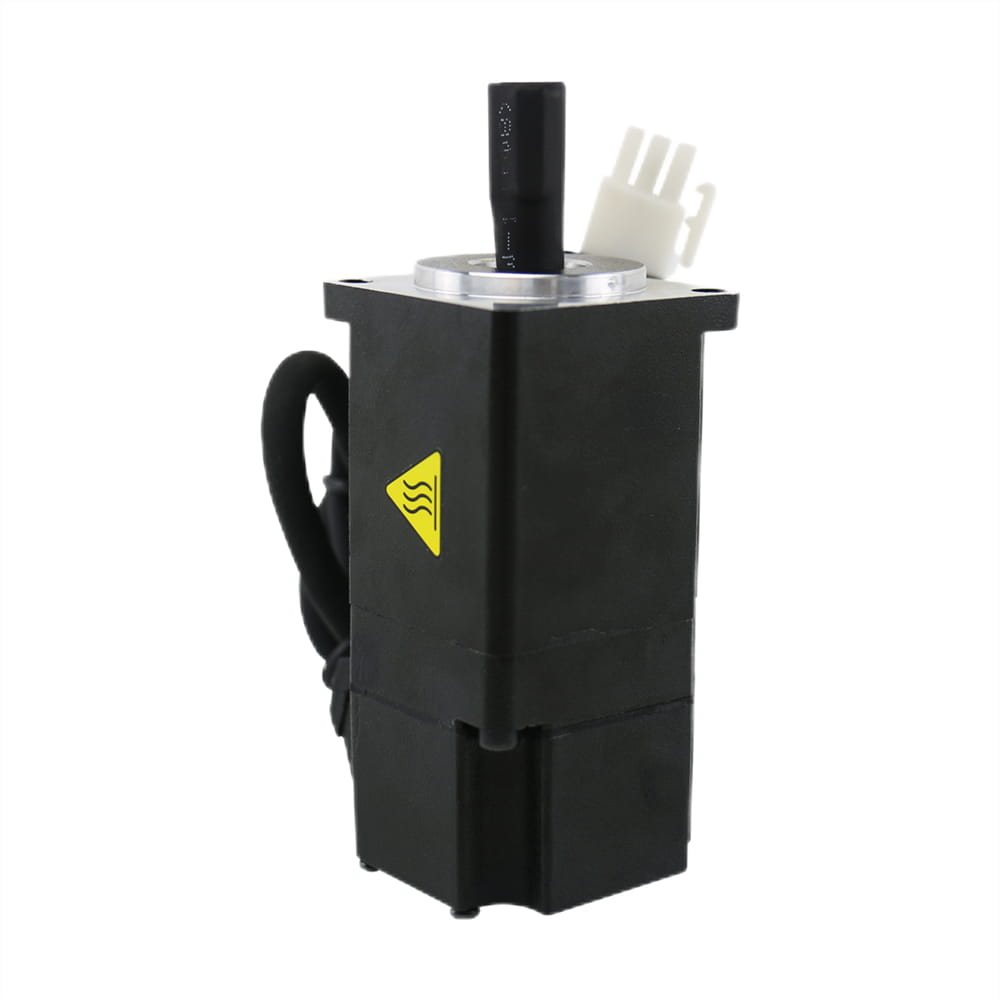

40mm 100W AC Servo Motor 220V 0.32 N-m 3000RPM 23-Bit Absolute Encoder IP65 Electromagnetic Brake
- Part Number: 40M00330BYS
- Lead Time: In Stock
- Unit Price: US $160.00
- *Ship from China
This 40 mm AC servo motor with electromagnetic brake (40M00330BYS) delivers 100 W of rated power and 0.32 N·m of rated torque at 3000 RPM, powered by 220 VAC with a rated current of approximately 1.0–1.2 A. It features a built-in 23-bit absolute encoder for precise positioning and smooth motion control, along with IP65 protection for reliable operation in demanding environments. The integrated 24 VDC electromagnetic brake provides fail-safe position holding on power loss, with the brake-equipped version measuring approximately 85–120 mm in body length within a 40 × 40 mm frame and weighing roughly 0.7–0.8 kg. Its high-resolution feedback, compact high-torque design, sealed construction, and power-off braking make it well suited to small CNC machines, PCB drilling and processing equipment, precision automated assembly lines, packaging and labeling machinery, medical and laboratory instruments, and miniature robotic joints that require accurate positioning and load holding on vertical axes or during emergency stops.
40mm 100W AC Servo Motor 220V 0.32 N-m 3000RPM 23-Bit Absolute Encoder IP65 Electromagnetic Brake
- Manufacturer Part Number: 40M00330BYS
- Rated Power: 100 W
- Rated Voltage: 220 VAC
- Rated Current: 1.1 A
- Rated Speed: 3000 RPM
- Rated Torque: 0.32 N-m
- Peak Torque: 0.95 N-m
- Peak Current: 3.2 A
- Back EMF Constant: 20 V/krpm
- Torque Constant: 0.29 N-m/A
- Electrical Constant: 0.85 Ms
- Line-line Resistance: 10.5 ohms
- Line-line Inductance: 8.9 mH
- Rotor Inertia: 0.06x10-4 kg·m2
- Encoder: 23-Bit Absolute Multi-turn
- Insulation Class: F
- Protection Level: IP65
- Poles Number: 10
- Brake Torque: 0.6 N-m
- Brake Voltage: 24 VDC
- Frame Size: 40x40 mm
- Body Length: 119.5 mm
- Shaft Diameter: Φ8 mm
- Shaft Length: 25 mm
- Weight: 1.2 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 40M00330BYS |
| Product Type | AC Servo Motor |
| Lead Time | in stock |
| Insulation Class | F |
| Protection Class | IP65 |
| Servo Electrical Specification | |
| Rated Voltage(VAC) | 220 |
| Rated Current(A) | 1.1 |
| Rated Power(W) | 100 |
| Rated Speed(RPM) | 3000 |
| Rated Torque(N·m) | 0.32 |
| Encoder Type | Absolute |
| Encoder Resolution(PPR) | 23-Bit |
| With Brake | Yes |
| Servo Physical Specification | |
| Frame Size(mm) | 40x40 |
| Body Length(mm) | 119.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 1.1 |
LA=119.5mm
