3D Printer Stepping Motor 1.0A 0.12Nm 36-20mm 4 Leads XH Connector NEMA 14
- Part Number: 36HB20-1004XH
- Lead Time: In Stock
- Unit Price: US $11.50
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

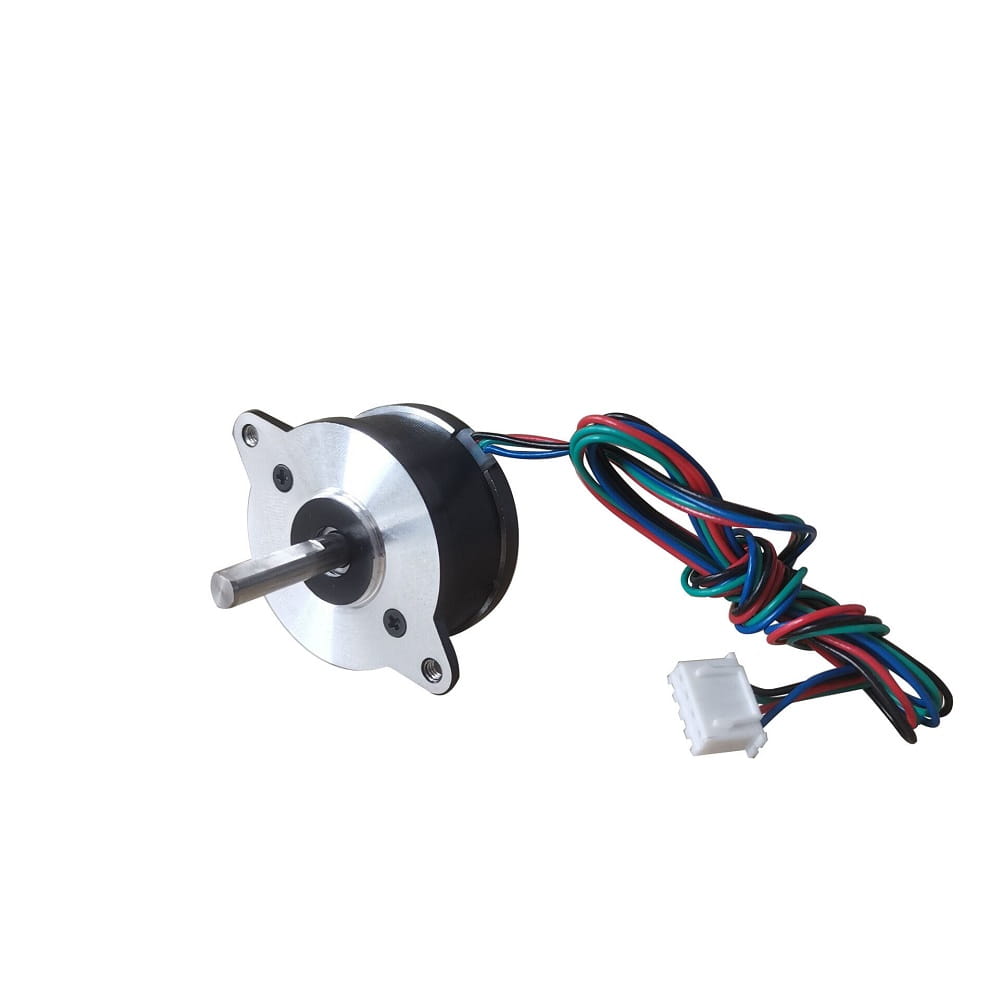

This 3D printing stepping motor NEMA 14 has a 1.8° step angle (200 steps/revolution). Each phase draws rated current 1.0A, allowing for a holding torque of 0.12Nm. The motor has four color-coded wires (bipolar design) terminated with JST XH 2.54mm connector and body length 20mm. The digital stepping drive M322C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 36HB20-1004XH
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.12Nm
- Rated Current/phase: 1.0A
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: Φ36.5mm
- Body Length: 22mm
- Shaft Diameter: Φ5mm
- Shaft Length: 22mm
- D-cut Length: 17mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.12kg

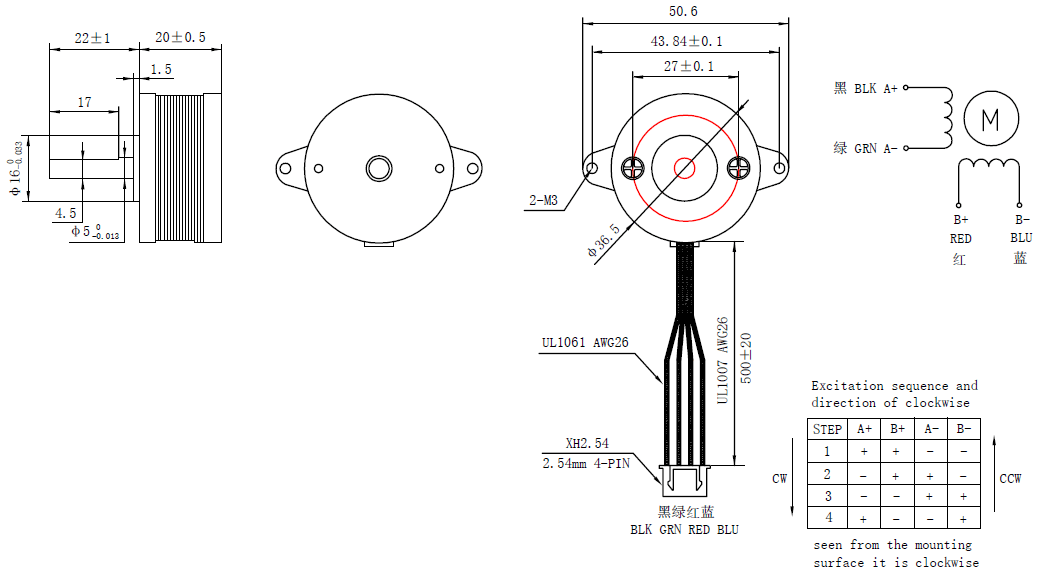

Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 36HB20-1004XH |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Rated Current(A) | 1.0 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 36.5 |
| Body Length(mm) | 20 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 22 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 0.12 |
