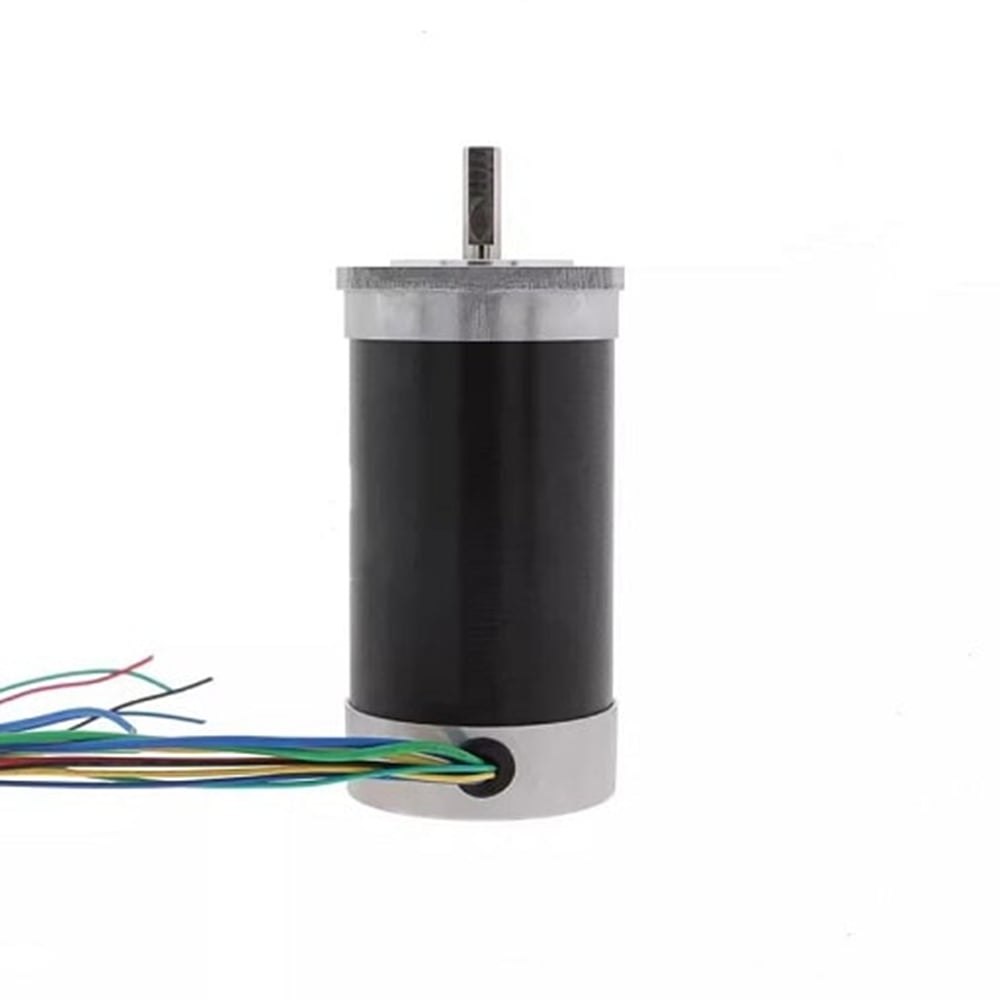

36V 4000RPM 0.44Nm 184W 7.3A 57x57x109mm Brushless DC Motor
- Part Number: 57HS109-3640
- Lead Time: In Stock
- Unit Price: US $60.00
- Sales: 9
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 57mm electric motor is a standard 36 voltage brushless DC motor, which generates a high power 184W and a strong torque 0.44Nm at RATED speed 4000RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances.
Specifications
- Manufacturer Part Number: 57HS109-3640
- Rated Voltage: 36V
- Rated Curent: 7.3A
- Rated Power: 184W
- No-loaded Speed: 4700RPM
- Rated Speed: 4000RPM
- Rated Torque: 0.44Nm
- Insulation Class: B
- Sensor Type: Hall

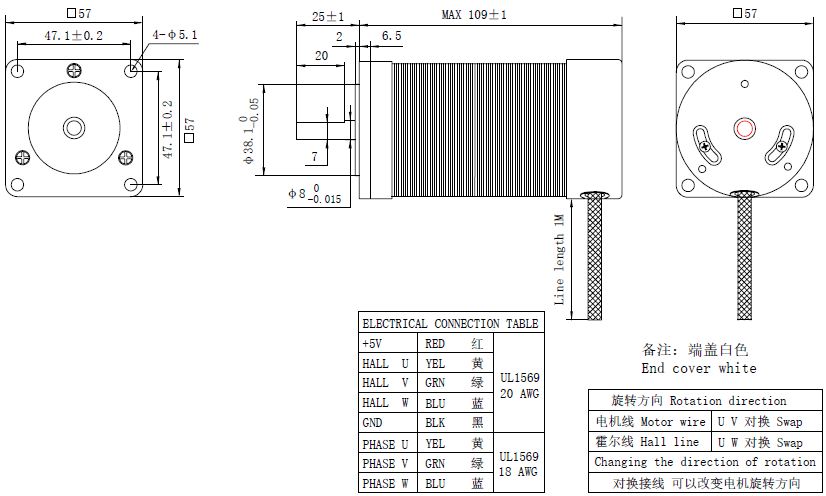

- Frame Size: 57x57mm
- Motor Length: 109mm
- Shaft Diameter: Φ8mm
- Shaft Length: 25mm
- D-cut Length: 20mm
- Weight: 1.1KG
Contact Us
| Product Details | |
| Model Number | 57HS109-3640 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 0.44 |
| Rated Power(W) | 184 |
| Rated Current(A) | 7.3 |
| Rated Voltage(VDC) | 36 |
| Rated Speed(RPM) | 4000 |
| No-load Speed(RPM) | 4700 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 109 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 1.1 |
