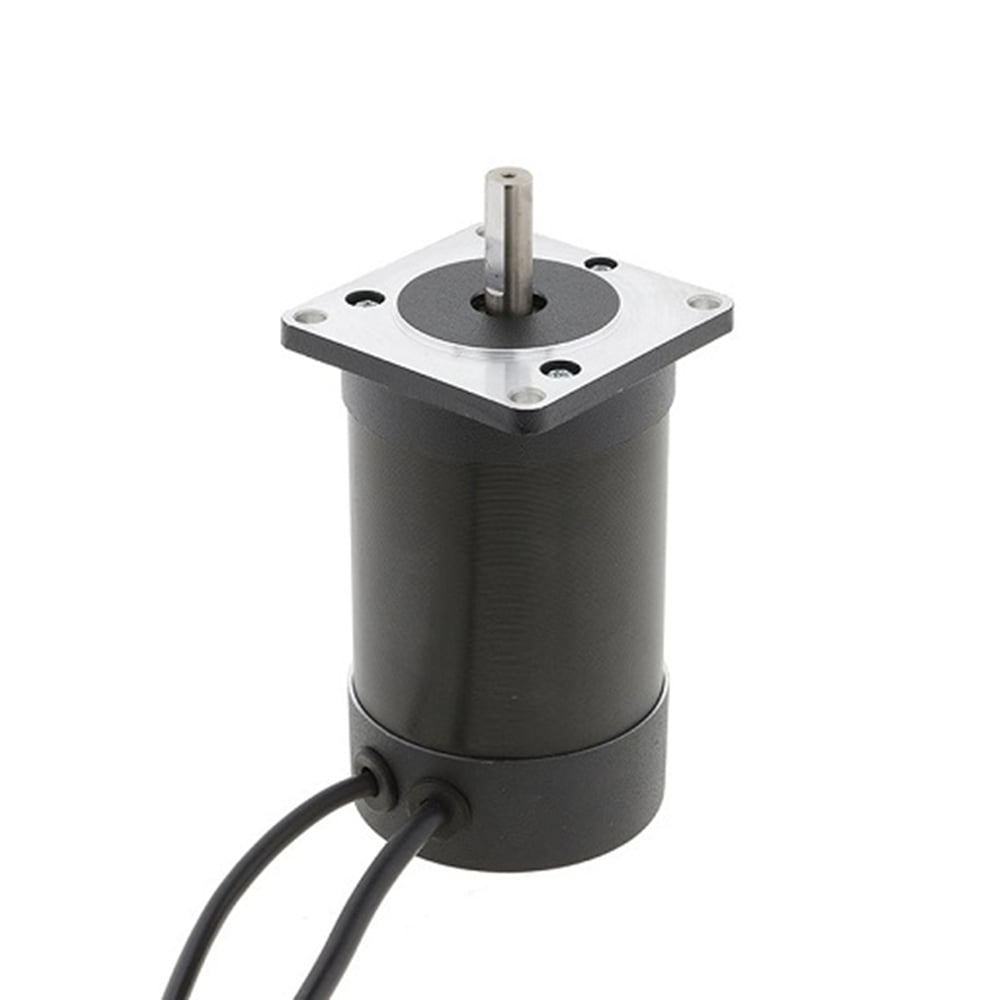

36V 3600RPM 0.4Nm 150W 5.7A 57x57x95mm Brushless DC Motor
- Part Number: 57HS95-3636
- Lead Time: In Stock
- Unit Price: US $55.00
- Sales: 7
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 57mm electric motor is a standard 36 voltage brushless DC motor, which generates a high power 150W and a strong torque 0.4Nm at RATED speed 3600RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances. The matched drive is BLD-300B.

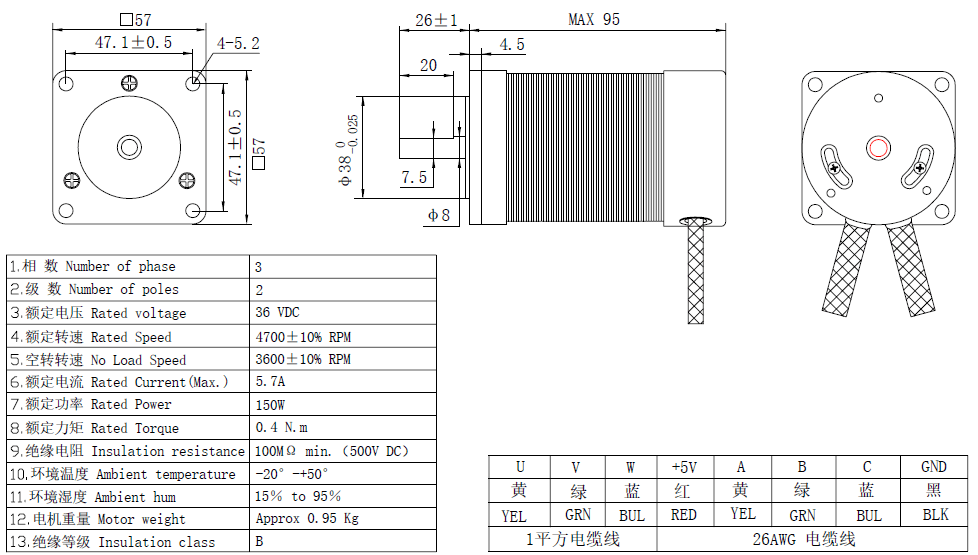

Specifications
- Manufacturer Part Number: 57HS95-3636
- Rated Voltage: 36 Vdc
- Rated Current: 5.7 A
- Rated Power: 150 W
- No-loaded Speed: 4700 RPM
- Rated Speed: 3600 RPM
- Rated Torque: 0.4 Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 57x57 mm
- Motor Length: 95 mm
- Shaft Diameter: Φ8 mm
- Shaft Length: 26 mm
- D-cut Length: 20 mm
- Weight: 0.95 kg
Connection
| U | V | W | +5V | HA | HB | HC | GND |
| YEL | GRN | BLU | RED | YEL | GRN | BLU | BLK |
| 18AWG | 26AWG | ||||||
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 57HS95-3636 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP20 |
| Electrical Specification | |
| Rated Torque(N·m) | 0.4 |
| Rated Power(W) | 150 |
| Rated Current(A) | 5.7 |
| Rated Voltage(VDC) | 36 |
| Rated Speed(RPM) | 3600 |
| No-load Speed(RPM) | 4700 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 95 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 26 |
| Weight(KG) | 0.95 |
