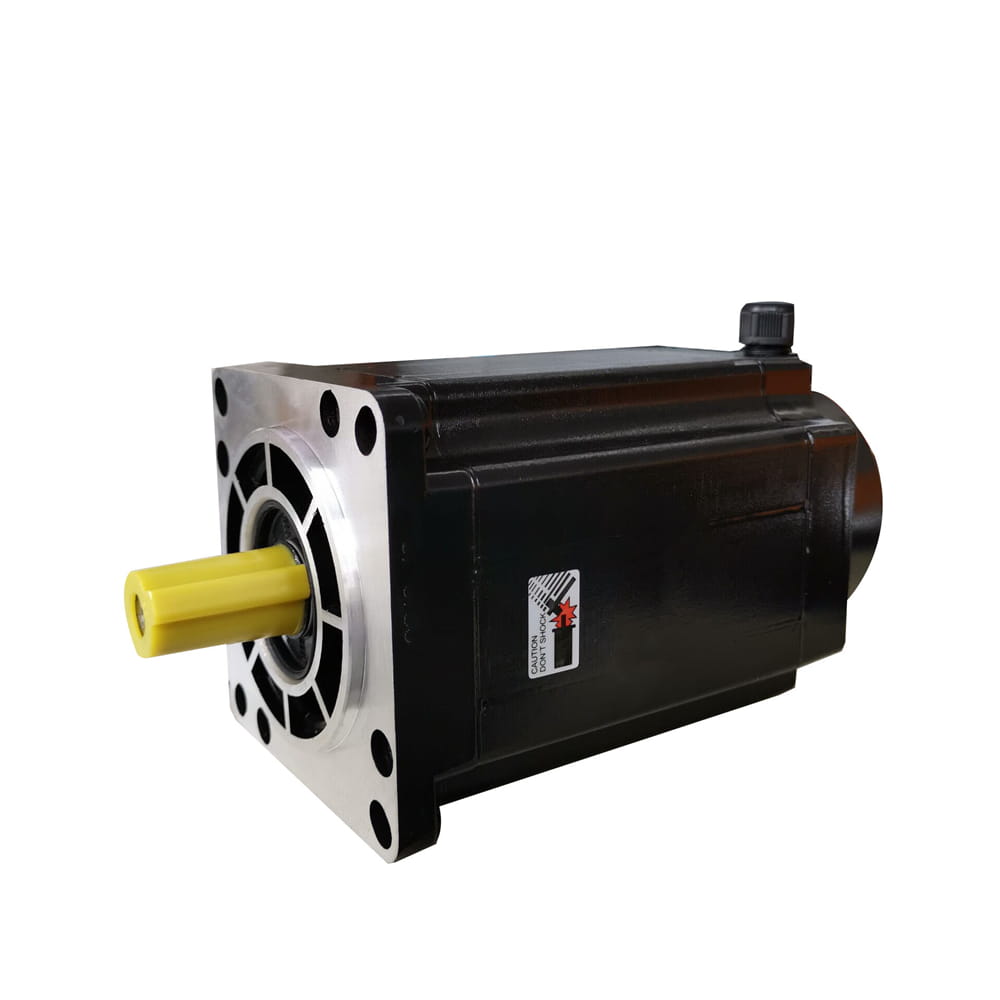

3 Phase NEMA 42 Stepper Motor 1.2deg 6.5A 16Nm 110x110x185mm 3 Wires
- Part Number: 110HS185-6503S
- Lead Time: One Week
- Unit Price: $169.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This powerful electric engine is a 3 phase 1.2deg NEMA 42 stepper motor with size 110x110x185mm. It has 3 leads connection, each phase draws 6.5A with strong holding torque 16Nm. It is widely used for automatic assembly, CNC machine, laser cutting, robots, etc.
Electrical Specification
- Part Number: 110HS185-6503S
- Step Angle: 1.2deg
- Holding Torque: 16Nm/2272oz.in
- Rated Current/phase: 6.5A
- Phase Resistance: 1.28ohms
- Inductance: 19mH
- Driving Voltage: 110-220VAC
Physical Specification
- Frame Size: 110x110mm
- Body Length: 185mm
- Shaft Diameter: Φ19mm
- Shaft Length: 40mm
- keyway Shaft Length: 41mm
- Number of Leads: 3
- Lead Length: 1000mm
- Weight: 9.5kg
Contact Us
| Electrical Specification | |
| Step Angle(°) | 1.2 |
| Holding Torque(Nm) | 16 |
| Holding Torque(oz.in) | 2272 |
| Rated Current(A) | 6.5 |
| Phase Resistance(ohm) | 1.28 |
| Phase Inductance(mH) | 19 |
| Driving Voltage(VAC) | 110-220 |
| Physical Specification | |
| Frame Size(mm) | 110x110 |
| Body Length(mm) | 185 |
| Shaft Type | keyway |
| Shaft Diameter(mm) | 19 |
| Shaft Length(mm) | 40 |
| No. of Leads | 3 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 8.5 |

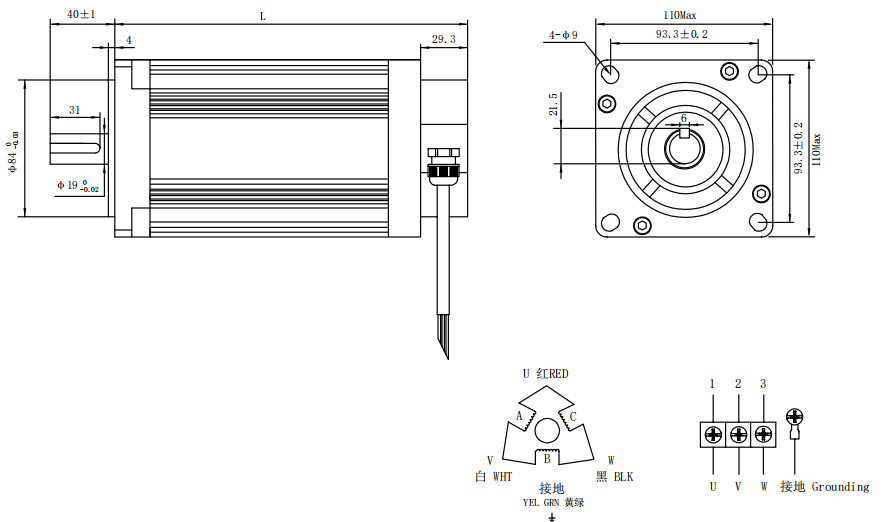

L=185mm
