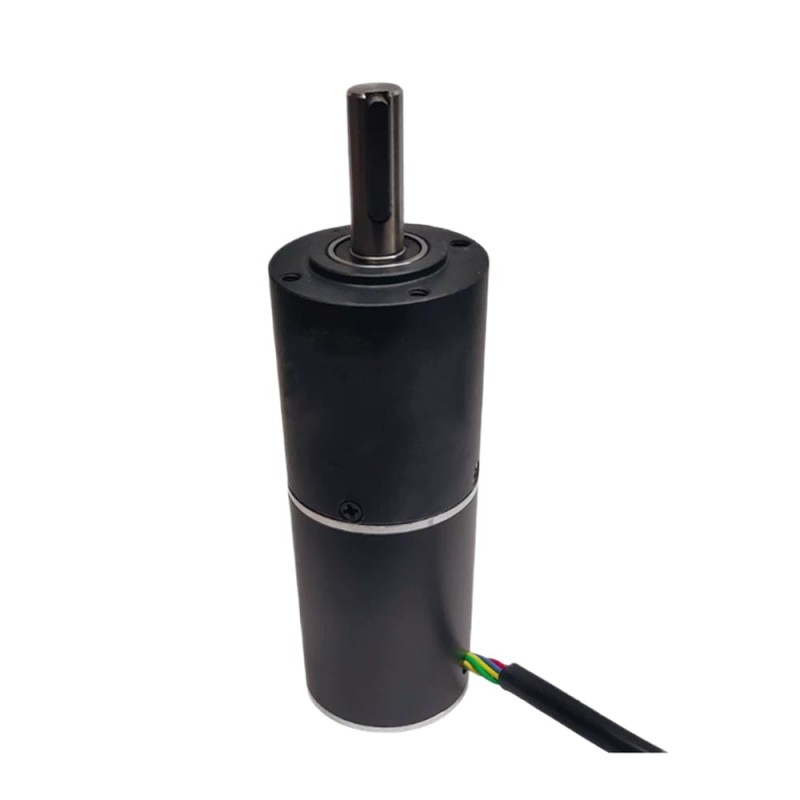

24V 40RPM 8.0Nm 36W Φ42mm Geared Brushless DC Motor Ratio 112:1 Round Planetary Gearbox
- Part Number: 42BLR60-24V-PG112
- Lead Time: In Stock
- Unit Price: $69.90
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 42BLR60-24V-PG series dc geared motor is a 24V frame size 42mm circle brushless integrated with a size 42mm round planetary gearbox. It leads to speed range of 5RPM to 2000RPM and holding torque upto 10Nm. Because of the brushless design, this micro geared motor has higher efficiency, higher power-to-weight ratio, faster response time, longer lifespan, more merits compared to general dc motors. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 42BLR60-24V-PG112
- Rated Voltage: 24VDC
- Rated Power: 36W
- Gear Ratio: 112:1
- Rated Torque: 8.0Nm
- No-load Speed: 40RPM
- Rated Speed: 35RPM
- Rated Current: 1.78A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 120.1mm
- Shaft Diameter: Φ10mm
- Shaft Length: 29mm
- Keyway Length: 19mm
- Weight: 0.9KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushless |
| Rated Voltage(VDC) | 24 |
| Rated Power(W) | 36 |
| Rated Torque(Nm) | 8.0 |
| Rated Speed(RPM) | 35 |
| No-load Speed(RPM) | 40 |
| Sensor Type | Hall |
| Frame Size(mm) | Φ42 |
| Body Length(mm) | 120.1 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 29 |
| Weight(KG) | 0.9 |
L=60.1mm
Motor Wires(thick)
U: Yellow, V: Green, W: Blue
Hall Wires(thin)
+5V: Red, HU: Yellow, HV: Green, HW: Blue, GND: Black
