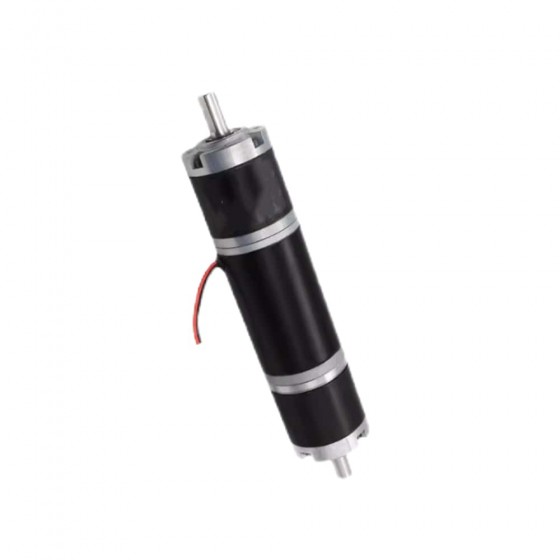

24V 40RPM 3.4Nm Φ36mm Double Geared DC Motor Planetary Gearbox
- Part Number: 36MGL62-24V-DPG189
- Lead Time: In Stock
- Unit Price: US $40.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 36MGL62-24V-DPG series DOUBLE dc geared motor is a rated voltage 24V diameter Φ36m round brushed intagrated with two size Φ36mm round planetary gearboxes. It leads to speed range of 3RPM to 3000RPM and holding torque upto 10Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 36MGL62-24V-DPG189
- Rated Power: 15.0W
- Rated Torque: 3.4Nm
- No-load Speed: 40RPM
- Rated Speed: 33RPM
- Rated Current: 0.5A
- Insulation Class: B
- Body Length: 152mm
- Shaft Diameter: Φ8mm
- Shaft Length: 19mm
- Dc-ut Length: 15mm
- Weight: 0.77KG
Contact Us
| Product Details | |
| Model Number | 36MGL62-24V-DPG189 |
| Product Type | Brushed |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 3.4 |
| Rated Power(W) | 15 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 33 |
| No-load Speed(RPM) | 40 |
| Physical Specification | |
| Frame Size(mm) | Φ36 |
| Body Length(mm) | 152 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 19 |
| Weight(KG) | 0.7 |

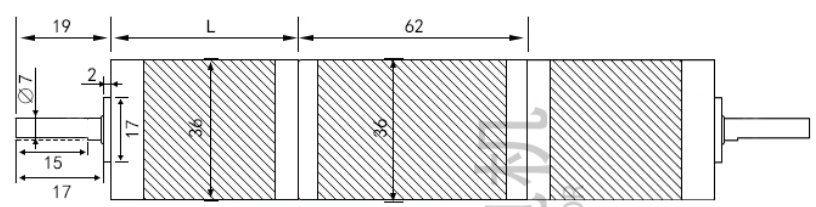

Body Length(motor + front gearbox & back gearbox): 152mm
