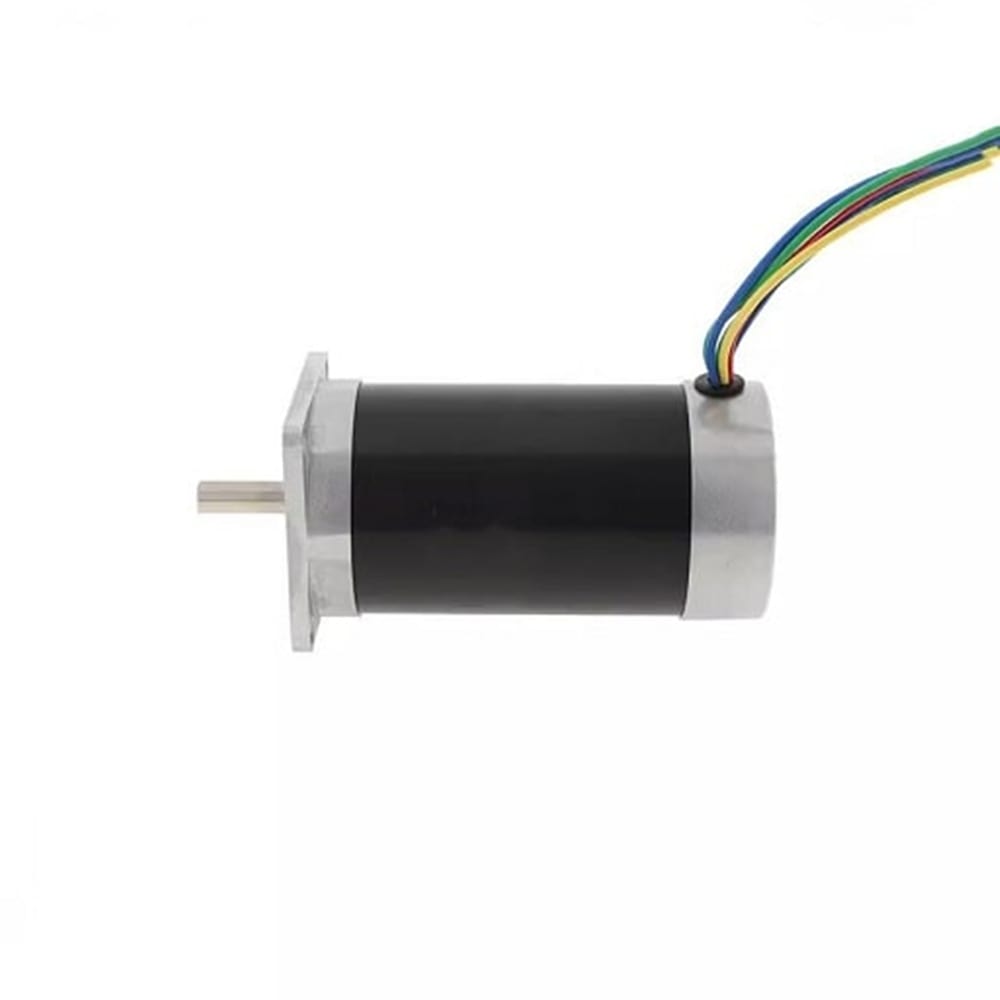

24V 3500RPM 0.6Nm 220W 14A 57x57x89mm Brushless DC Motor
- Part Number: 57HS89-2435
- Lead Time: In Stock
- Unit Price: US $60.00
- Sales: 9
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 57mm electric motor is a standard 24 voltage brushless DC motor, which generates a high power 220W and a strong torque 0.6Nm at RATED speed 3500RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances. The matched drive is BLD-300B.
Specifications
- Manufacturer Part Number: 57HS89-2435
- Rated Voltage: 24 Vdc
- Rated Current: 14.0 A
- Rated Power: 220 W
- No-loaded Speed: 4500 RPM
- Rated Speed: 3500 RPM
- Rated Torque: 0.6 Nm
- Insulation Class: B
- Sensor Type: Hall
- Frame Size: 57x57 mm
- Motor Length: 89 mm
- Shaft Diameter: Φ8 mm
- Shaft Length: 25 mm
- D-cut Length: 20 mm
- Weight: 1.1 kg

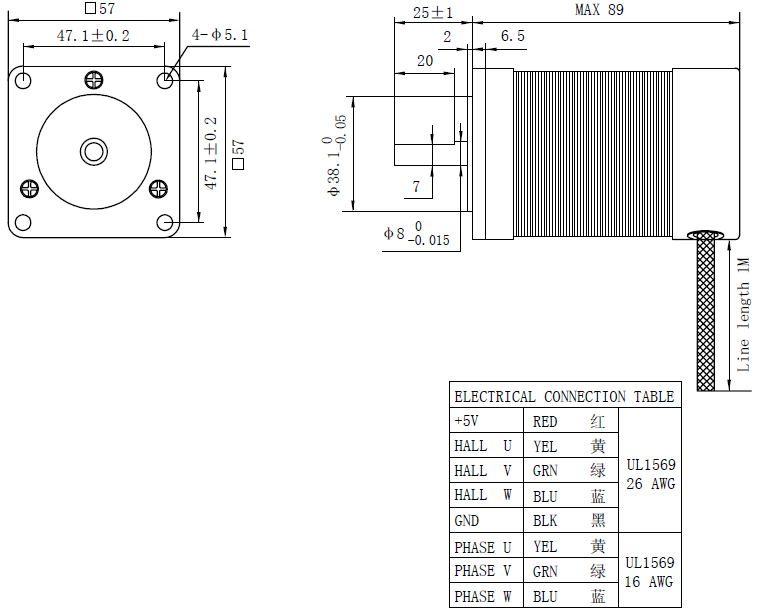

Connection
| U | V | W | +5V | HA | HB | HC | GND |
| YEL | GRN | BLU | RED | YEL | GRN | BLU | BLK |
| 16AWG | 26AWG | ||||||
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 57HS89-2435 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP20 |
| Electrical Specification | |
| Rated Torque(N·m) | 0.6 |
| Rated Power(W) | 220 |
| Rated Current(A) | 14 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 4500 |
| No-load Speed(RPM) | 3500 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 89 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 1.1 |
